YY(Q)W Series: High-Temperature Thermal Oil Heater

Precision Heating Solutions from CNMIRACLE & Taiguo Boiler

As the international export and engineering brand of Taiguo Boiler Group, CNMIRACLE provides YY(Q)W series thermal oil heater systems for global industrial applications.

The YY(Q)W series is engineered and manufactured at the Henan Taiguo Boiler production base, ensuring reliable fabrication quality and strict factory testing standards.

Its horizontal forced-circulation design delivers stable heat transfer temperatures up to 350°C under low operating pressure conditions.

Advanced safety control systems help prevent thermal oil degradation, improve operational safety, and ensure long-term mechanical reliability.

These industrial thermal oil heaters are widely used in asphalt mixing plants, chemical processing, textile manufacturing, and other industries requiring continuous high-temperature heat energy.

---

Core Technical Specifications of Thermal Oil Heater

The YY(Q)W series represents our advanced horizontal oil/gas-fired thermal oil technology. These heaters are designed for long-cycle reliability in demanding industrial environments.

1. Advanced Structural Design Of Thermal Oil Heater

• Three-Pass Coil Structure: We utilize a triple-coil design that maximizes the heat exchange area and improves thermal efficiency.
• Safety Interlocking: The system includes automatic temperature controls and flow rate sensors to prevent oil overheating.
• High-Density Insulation: We use specialized ceramic fiber and thick-wall insulation to reduce surface heat loss.
• Low Pressure, High Temp: These heaters can reach working temperatures of 320 ℃ while operating at low pressures, reducing structural fatigue on your equipment.

2. Core Technical Characteristics Of Thermal Oil Heater

• Precise Temperature Control: Our PLC systems maintain oil temperatures within ±1℃, which is critical for sensitive chemical reactions.
• Automatic Degassing: The integrated expansion tank design facilitates the automatic removal of moisture and low-boiling components from the oil.
• Energy Intelligence: We provide optional waste heat recovery (WHR) units to capture exhaust heat, increasing overall system efficiency by 10% to 15%.

We offer both gas and oil-fired configurations to meet your local fuel availability. Furthermore, our compact design minimizes floor space while maximizing thermal output.

---

YY(Q)W Series Gas/Oil Fired Thermal Oil Heater Technical Parameters

Note: Applicable fuel choices include Light Oil, Heavy Oil, LNG (Liquefied Natural Gas), and CG (City Gas)

---

YY(Q)W Series Thermal Oil Heater Configuration & System Description

Taiguo Boiler delivers complete turnkey thermal energy solutions. We do not just sell a bare heater block. Our team configures fully integrated, closed-loop high-temperature thermal oil systems for global B2B buyers.

1. Standard Configuration (Closed-Loop Circulation Package)For Thermal Oil Heater

Our standard configuration includes all essential liquid-phase heat transfer components. We guarantee safe, continuous high-temperature oil circulation after correct installation.

• Heater Proper (Body): High-efficiency YY(Q)W three-pass coil structure. It features tightly wound internal and external carbon steel tubes.
• Industrial Burner: Premium progressive or modulating burner. It delivers precise flame shaping to prevent localized oil overheating.
• Oil Circulation Pump: High-temperature centrifugal oil pump. The system features heavy-duty mechanical seals for zero leakage.
• Central Control Cabinet: Automated electric control panel. It constantly monitors oil outlet temperatures, inlet pressures, and flow rates.
• Safety Interlock Instruments: Digital pressure differential switches and flow sensors. They provide instant shut-off protection if oil flow drops.
• Flue Gas Outlet: Standard exhaust connection box. It channels high-temperature flue gases directly into your heat recovery equipment.

2. Optional Configuration (Energy Saving & Heat Upgrades)For Thermal Oil Heater

We offer advanced heat-recovery optional components. These upgrades optimize total plant thermal efficiency, reduce fuel waste, and enable precise temperature zoning.

• Waste Heat Steam Generator: Produces auxiliary industrial steam using hot exhaust gas from the heater. Benefit: Delivers free steam for secondary workshop processes.
• Waste Heat Water Heater: Captures leftover flue gas heat to produce domestic or process hot water. Benefit: Enhances total system thermal efficiency by an extra 6% to 8%.
• Dual-Pump Skids: Integrates two oil circulation pumps on a heavy steel frame with manual or automatic changeover valves. Benefit: Guarantees zero downtime if one pump requires maintenance.
• PLC Smart Control Touchscreen: Uses premium Siemens PLC hardware with customized graphic displays. Benefit: Enables automated ramp-up curves and tracks thermal oil lifespan metrics.
• Automatic Oil Filling Pump: Electric gear pump dedicated to system charging and makeup oil injection. Benefit: Prevents manual filling errors and blocks moisture entry into the system.
• Low-NOx Combustion System: Integrates a specialized low-emission burner head with precision digital fuel-air actuators. Benefit: Meets strict global environmental standards easily.

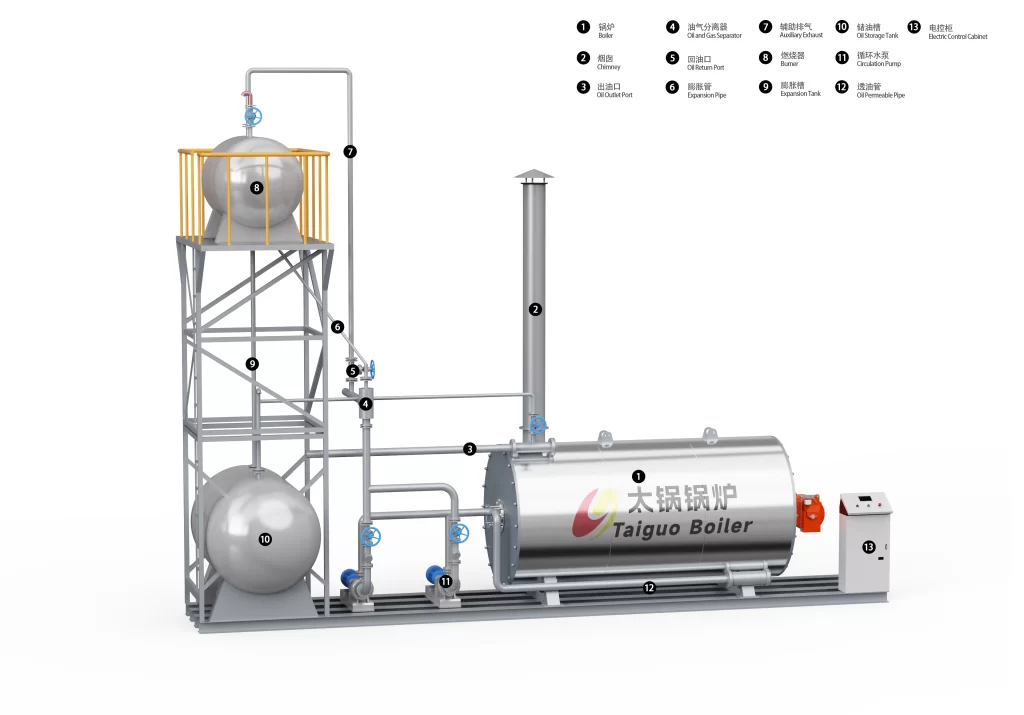

3. Complete Thermal Oil System Layout Blueprint For Thermal Oil Heater

We design full custom closed-loop layouts. The technical flowchart below shows how our system circulates high-temperature thermal oil through your factory:

Oil Storage Tank ➔ Circulation Pump ➔ YY(Q)W Heater Body ➔ High-Level Expansion Tank ➔ Your Production Line ➔ Return Line

4. Customized Engineering by Target Industries For Thermal Oil Heater

Different processing sectors require exact, stable temperature controls. We customize our auxiliary thermal oil packages to match your specific production line layout:

• Asphalt & Bitumen Storage Terminals: Exhaust Gas Steam Generator + Heavy-Duty Insulation Valves + Dual Main Circulation Pumps. Bitumen processing requires steady heat. Our configuration prevents oil solidification in pipelines.
• Textile Stenter & Setting Machines: Precision Multi-Zone Control Valves + High-Level Expansion Tank Skids. Textile finishing demands absolute temperature uniformity. Our system guarantees temperature fluctuations stay under ±1°C.
• Plywood & Wood Pressing Plants: Automated PLC Temperature Programmer + Large-Capacity Low-Level Oil Storage Tank. Hot pressing requires rapid heat adjustments. Our digital control panel optimizes pressing cycles automatically.

5. Heavy-Duty Export Package for Global Projects For Thermal Oil Heater

We understand the logistics challenges of overseas industrial projects. Taiguo Factory provides an exclusive export support package to ensure smooth onsite engineering deployment:

• Thermal Sealing Spare Parts Pack: Includes high-grade graphite gaskets, replacement pump seals, and critical control relays for two years.
• English Control Software: All PLC interfaces, digital display monitors, and technical safety warnings feature clear English terminology.
• P&ID Piping Diagrams: We provide complete system piping layout schematics, foundation civil engineering blueprints, and electrical connection manuals.
• Remote Video Commissioning Support: Senior thermal engineers provide live, step-by-step assistance during your initial system flush and startup.
• Regional Import Certification: We provide fully validated GOST/EAC certificates for Central Asian markets, including Uzbekistan.

6. Required Auxiliary Equipment Checklist For Thermal Oil Heater

Auxiliary Equipment Name	Necessity Level for Thermal Oil Heaters	Taiguo Factory Supply Capability
High-Level Expansion Tank	100% Mandatory (Safety Critical)	Supplied with Automatic Level Alarms
Low-Level Oil Storage Tank	100% Mandatory	Supplied with Custom Volume to Match System
Oil Circulation Pump Skid	100% Mandatory (System Heart)	Fully Wired, Plumbed, and Tested on Steel Skid
Oil-Water Separator / Deaerator	100% Mandatory (Boils off water)	Integrated Directly into the Expansion Piping
Waste Heat Recovery Exchanger	Highly Recommended	Custom Engineered Shell-and-Tube Units Available

---

Global Industry Applications & Process Flows

The YY(Q)W series provides localized heating solutions for high-growth sectors in Central Asia and Southeast Asia.

1. Bitumen & Construction (Road Infrastructure) With Thermal Oil Heater

This is a high-demand application for projects in Uzbekistan and emerging African markets.

• Process Flow: Cold Bitumen Storage → Thermal Oil Heating → Melting & Mixing → Asphalt Spraying.
• Key Benefit: The bitumen melting thermal oil heater ensures uniform heating, preventing the local carbonization of the asphalt.
• Regional Support: We provide EAC certification and on-site engineering dispatch for infrastructure projects in Tashkent.

2. Textile & Synthetic Fiber Industry With Thermal Oil Heater

Our heaters power the high-temperature setting machines required for fabric finishing.

• Process Flow: Fabric Pre-treatment → High-Temp Setting → Dyeing & Printing → Final Drying.
• Key Benefit: The stenter machine heating system provides the consistent thermal environment needed for perfect fiber crystallization.

3. Chemical & Pharmaceutical Production With Thermal Oil Heater

Precision is non-negotiable for long-cycle chemical synthesis.

• Process Flow: Reactor Pre-heating → Hydrothermal Synthesis → Distillation → Concentration.
• Key Benefit: A dedicated chemical reactor thermal oil heater prevents batch failures by maintaining ultra-stable temperatures over 24-hour cycles.

---

YY(Q)W Series Thermal Oil Heater Selection Guide

Industrial processing at temperatures above 200°C requires specialized organic heat carriers to ensure high product quality. Traditional steam loops at these temperatures generate dangerously high pressures. Our YY(Q)W horizontal Thermal Oil Heater solves this problem by delivering stable high temperatures under low operating pressures. Use the technical engineering matrix below to select the right thermal oil capacity for your production line.

Factory Production Scale	Rated Thermal Power (MW / kW)	Recommended YY(Q)W Model	Core Process Operating Advantages
Small Chemical & Wood Workshops	0.35 MW – 0.7 MW / (350 kW – 700 kW)	YY(Q)W-350 / YY(Q)W-700	Perfect for small jackated reactors, plywood hot presses, and food frying lines.
Medium Asphalt & Textile Plants	1.4 MW – 3.5 MW / (1400 kW – 3500 kW)	YY(Q)W-1400 / YY(Q)W-3500	Supplies stable high heat for continuous textile stenter frames and road asphalt melting vats.
Large Chemical Refining & Board Mills	4.2 MW – 7.0 MW / (4200 kW – 7000 kW)	YY(Q)W-4200 / YY(Q)W-7000	Heavy-duty thermal utility for large-scale wood particleboard presses and chemical synthesis towers.
Massive Industrial Complexes	10.5 MW and above	YY(Q)W-10500 (Customized)	Large-scale centralized organic heat carrier utility with full automated safety systems.

Strategic Selection Guide for Global Buyers

Technical Feature	WNS/SZS Steam Boiler	YY(Q)W Thermal Oil Heater
Heat Medium	Saturated Steam	Synthetic Thermal Oil
Max Temperature	~200℃ (at high pressure)	Up to 320 ℃ (at low pressure)
Maintenance	Requires water treatment & blowdown	Closed-loop system with minimal loss
Best For	Food, Autoclaves, and Sterilization	Bitumen, Chemicals, and Textile Setting

---

Fuel Flexibility & High-Temperature Operational ROI

The YY(Q)W series utilizing liquid or gaseous fuels provides excellent temperature control accuracy. Featuring a multi-layer closely-spaced coil structure, the heater absorbs thermal radiation efficiently. This structural design achieves overall thermal efficiency up to 92% to 95% when paired with our customized waste-heat recovery units.

Fuel Type Configuration	Combustion Efficiency	Fuel Consumption Rate (Per 1 MW)	Long-Term Operational ROI	System Infrastructure Requirement
Pipeline Natural Gas	High (92% – 95%)	~100 Nm³/h	Highest Return	Requires standard industrial low-pressure gas piping lines.
LNG (Liquefied Natural Gas)	High (92% – 95%)	~100 Nm³/h	Medium	Requires onsite storage tanks and local ambient vaporizers.
Light Diesel Oil	High (90% – 93%)	~86 kg/h	Medium-Low	Requires dedicated oil day-tanks and regular fuel truck deliveries.

High-Temperature Low-Pressure Setup Lowers Factory Risk

To get 300°C using saturated steam, a factory must operate a boiler at a dangerous pressure of nearly 9.0 MPa. This requires expensive high-pressure piping, certified expert operators, and introduces heavy safety hazards. In contrast, the YY(Q)W thermal oil system delivers 300°C heat at an operating pressure of just 0.8 MPa. This drastically cuts your initial piping capital expenditure (CAPEX) and ensures total factory safety.

Need to Replace an Old Boiler or Calculate Thermal Oil Capacity?

Choosing the wrong thermal power can cause oil degradation or insufficient heating. Our engineering team provides precise thermal capacity calculations and expansion tank layout designs at zero cost.

---

Global Regional Applications for YY(Q)W Thermal Oil Heaters

Our thermal oil systems are engineered to meet the unique energy costs and regulatory standards of each target market.

1. Uzbekistan & Central Asia: Infrastructure & Asphalt With Thermal Oil Heater

Uzbekistan is a primary priority market for our high-temperature heating solutions.

• Primary Application: We specialize in providing the bitumen melting thermal oil heater for large-scale road construction projects.
• Fuel Strategy: Our systems utilize high-efficiency natural gas burners to take advantage of local energy resources.
• Logistics & Compliance: We manage specialized rail and road transport via the Khorgos route and provide all necessary EAC certification.
• Process Goal: Achieving uniform heat distribution to prevent asphalt carbonization during the melting and mixing phases.

2. Southeast Asia: Textiles & Plantation Processing With Thermal Oil Heater

In markets like Indonesia and Vietnam, we focus on high-precision thermal control for industrial manufacturing.

• Primary Application: Our heaters power the stenter machine heating system required for high-grade fabric finishing.
• Fuel Strategy: We adapt our combustion chambers to run on diesel or local biomass to stabilize operational costs.
• Process Goal: Maintaining ultra-stable temperatures within ±1°C for perfect fiber crystallization and color setting.

3. Middle East: Heavy Oil & Chemical Synthesis With Thermal Oil Heater

For regions with established oil and gas industries, we provide rugged systems designed for 24/7 reliability.

• Primary Application: We deliver the dedicated chemical reactor thermal oil heater for long-cycle synthesis and distillation.
• Fuel Strategy: We offer specialized burners designed for heavy oil or gas to ensure consistent uptime in remote industrial sites.
• Process Goal: Preventing batch failures in hydrothermal reactions by providing a constant thermal environment over extended cycles.

4. Africa: Emerging Industrial & Food Processing With Thermal Oil Heater

In African markets, our focus is on robust engineering that is easy to maintain in developing infrastructure environments.

• Primary Application: Our systems support regional sterilization and palm oil processing facilities.
• Fuel Strategy: We emphasize diesel or light oil compatibility to ensure fuel availability in all locations.
• Process Goal: Providing high-temperature energy at low operating pressures to reduce structural fatigue on local factory equipment.

Strategic Selection: Regional Technical Standards

Region	Primary Certification	Logistics Route	Common Heat Application
Uzbekistan	EAC Compliance	Khorgos Route	Bitumen Melting
Southeast Asia	CE / ISO Standards	Sea Freight	Textile Setting
Global	ASME / ISO Standards	International Shipping	Chemical Synthesis

---

Local Operational Problems & Engineering Solutions

Operating organic heat carrier heaters above 250°C introduces rigid technical risks, such as thermal oil cracking, internal coil carbon fouling, and localized overheating bursts. Our manufacturing facility utilizes precise fluid dynamics to prevent these common onsite hazards.

Problem 1: Thermal Oil Cracking and Internal Coil Carbon Fouling

• The Challenge: If the thermal oil moves too slowly inside the tubes, the oil layer closest to the furnace flame will overheat. This causes the oil to crack, producing carbon flakes that clog the coil and eventually cause tube burn-through.
• Our Solution: We design the internal coils using a multi-layer, multi-start structure with strict flow velocity limits. We pair every unit with a high-delivery Yuanheng hot-oil circulation pump to keep oil velocities high and heat absorption perfectly uniform, preventing any localized stagnation or oil degradation.

Problem 2: Thermal Expansion Shock and System Oil Leaks

• The Challenge: Heating up several tons of organic oil from 20°C to 300°C creates immense volumetric expansion. If the piping system cannot handle this extra volume safely, high-pressure leaks and fires can occur.
• Our Solution: We supply a complete automated auxiliary skid with every YY(Q)W module. This package includes an oversized Expansion Tank (Deaerator Tank) and an Oil Storage Tank. The expansion loop automatically absorbs the expanded oil volume and vents volatile light ends safely away from the burner.

Problem 3: Abrupt Electrical Grid Outages (Residual Heat Hazards)

• The Challenge: If a sudden power blackout stops the oil circulation pump while the furnace refractories are still white-hot, the trapped oil inside the coils will boil and crack instantly, ruining the entire oil batch.
• Our Solution: We integrate a specialized gravity-drain system into our boiler configurations. During a power failure, a mechanical DC-powered valve opens automatically, allowing cold oil from the elevated expansion tank to flush through the furnace coils via gravity, safely cooling the system down without electricity.

ROI Analysis: The Economic Power of Thermal Oil Systems

A thermal oil heater is a strategic asset that reduces overhead by providing high-temperature energy at low operating pressures. Unlike steam systems, thermal oil operates in a closed-loop cycle, which eliminates common energy losses.

1. Annual Operational Savings (OpEx)

To understand the ROI, we must look at the three primary areas where Taiguo systems save you money:

• Zero Water Treatment Costs: Thermal oil systems do not require expensive water softeners or chemical dosing, saving thousands of dollars annually in maintenance.
• Reduced Energy Loss: Since there is no “blowdown” (discharging hot water) or steam trap leakage, nearly 100% of the heat generated is delivered to your process.
• Integrated Waste Heat Recovery (WHR): Our heaters include economizers that capture exhaust heat, reducing fuel consumption by 10% to 15% per year.

2. The “Payback Period” Case Study

Let’s look at a typical 2.8 MW (2.4 million kcal) project for a bitumen plant or a textile factory:

• The Investment: The total cost for the heater, installation, and initial oil fill is approximately $100,000.
• Fuel Savings: In regions like Uzbekistan or Southeast Asia, the high efficiency and lack of water-related energy loss can save approximately $45,000 to $60,000 per year in gas or diesel costs.
• The Result: The equipment typically pays for itself within 18 to 24 months. After this period, the annual fuel savings convert directly into net profit for your business.

---

Manufacturing Authority & Global Brand System

CNMIRACLE operates as the international engineering and export brand of Taiguo Boiler Group, providing overseas customers with complete thermal system solutions and global project support.

Every YY(Q)W thermal oil heater is engineered and manufactured at the Henan Taiguo Boiler production base under strict industrial quality control procedures.

Our manufacturing capability covers the complete production lifecycle, including engineering design, pressure component fabrication, automatic welding, non-destructive testing (NDT), hydrostatic pressure testing, and final performance inspection.

Supported by the China Class-A Boiler Manufacturing License, ISO 9001 quality management system, and successful project experience across more than 30 countries, our thermal oil heating systems deliver reliable performance for demanding industrial applications worldwide.

Global Thermal System Delivery Workflow

Every industrial thermal oil project follows a structured execution process from manufacturing to final operation.

---

Comprehensive Engineering Support for High-Temperature Industrial Projects

Industrial thermal oil systems require more than reliable equipment. They require professional engineering planning, safe operation strategies, and continuous technical support throughout the project lifecycle.

Our engineering services include:

• Customized Thermal System Design
  • We analyze process temperature requirements, heating capacity, and operating conditions to recommend the most suitable thermal oil heater configuration for asphalt plants, bitumen processing facilities, chemical reactors, textile plants, and other high-temperature applications.
• Intelligent Safety & Efficiency Optimization
  • Our systems integrate advanced safety controls, including temperature monitoring, flow protection, and abnormal operating condition alarms to reduce thermal oil degradation and maintain long-term system reliability.
  • We also optimize burner selection and combustion parameters based on regional fuel availability, including natural gas, diesel, and heavy oil.
• International Delivery & Long-Term Technical Service
  • For Central Asia and other overseas markets, CNMIRACLE provides professional export coordination, transportation planning, technical documentation support, installation guidance, operator training, and long-term after-sales engineering assistance.

Advanced Thermal Oil Engineering Solutions for Asphalt & Chemical Industries

Industrial heating applications such as asphalt mixing, bitumen melting, and chemical processing require more than standard heating equipment.

Combining Taiguo Boiler’s manufacturing expertise with CNMIRACLE’s global engineering support, we provide customized thermal oil heating solutions designed for safe operation, fuel efficiency, and reliable long-term performance.

Our thermal oil heaters have supported numerous high-temperature operations across Uzbekistan and Kazakhstan. Consequently, we understand the specific engineering challenges of the bitumen melting thermal oil heater and chemical synthesis sectors. We provide a complete “Engineering + Logistics” ecosystem to ensure your facility reaches peak production without delay.

1. Intelligent Safety Interlocks for High-Temp Operations

Safety is our primary engineering priority for every chemical reactor thermal oil heater project.

• Automated Protection: Our system automatically shuts down if sensors detect low oil flow or abnormal pressure.
• Emergency Response: We integrate flow rate sensors and high-limit temperature controllers to prevent oil carbonization.
• Asset Longevity: These redundant safety protocols extend the service life of your boiler steel and thermal fluids to over 20 years.

2. Strategic Fuel Flexibility & Burner Efficiency

We optimize our heater designs to match the most economical energy sources in your region.

• Multi-Fuel Compatibility: Our burner designs allow for easy switching between natural gas, diesel, or heavy oil.
• Optimized Combustion: We calibrate each burner to ensure stable heat delivery for sensitive textile setting machine or bitumen processes.
• Energy Intelligence: Integrated waste heat recovery units can capture exhaust energy, reducing your monthly fuel consumption by 10% to 15%.

3. Specialized Logistics Support via the Khorgos Route

Managing heavy industrial shipments requires deep knowledge of Central Asian trade corridors.

• Reliable Transit: We manage specialized rail and road transport via the Khorgos route to ensure on-time delivery to Tashkent or Almaty.
• EAC Certification: Every export shipment includes the specialized EAC documentation required for seamless customs clearance.
• Secure Packaging: We use seaworthy, anti-corrosion packaging to protect your investment during the long-distance journey from our factory.

4.Installation, Commissioning & Long-Term Technical Support

A reliable thermal oil system requires professional engineering assistance beyond equipment delivery.

CNMIRACLE provides:

• Thermal system configuration assistance.
• Piping and installation guidance.
• Remote commissioning support.
• Operator training and long-term technical consultation.

Frequently Asked Questions (FAQ)

We provide professional technical guidance to ensure the safe operation of your thermal energy system. Consequently, we have addressed the most common concerns of our global industrial partners below.

Still have technical questions? Consult our overseas engineering team now!

Request a customized project drawing from our Engineering Team.

Need steam instead of thermal oil? Explore our WNS Series

High-temperature manufacturing processes require precise thermal fluid controls. Examine our advanced Industrial Hot Oil Boiler inventory to optimize your asphalt factory.solid fuel organic heat carrier boiler also work well for different fields.
