1 Project Profile & Performance Highlights Of SZS20 steam boiler Pakistan
- Location & Year: Faisalabad, Punjab Province, Pakistan | Project Commissioned in October 2024
- Client Industry: Tier-1 Integrated Textile Spinning, Printing, Dyeing & Exporting Mill
- System Equipment: 1 Unit of SZS20-1.6-Q Saturated Gas Steam Boiler (20 t/h single capacity)
- Core Architecture: Double-drum longitudinal D-type water tube layout with full membrane walls.
- Measured ROI: 21.8% Reduction in Monthly Gas Consumption yielding USD 14,200+ monthly savings with a guaranteed 15-month capital payback window.
- Track Record: 20+ Months of continuous 24/7 heavy industrial service under severe load fluctuation cycles.
2. Customer Background & South Asian Textile Giants Thermal Pain Points
The client operates a world-class, export-oriented textile printing and fabric finishing conglomerate located in Faisalabad, the textile capital of Punjab Province, Pakistan. Large-scale textile wet processing demands an immense, unrelenting supply of high-density thermal energy. Saturated steam directly feeds automated continuous bleaching ranges, high-temperature jet dyeing vessels, and giant fabric texturizing stenters.
Operating a high-capacity utility plant in the intensely competitive Pakistani manufacturing landscape exposes operations managers to three fatal thermodynamic vulnerabilities:
- Violent Dynamic Load Swings: When multiple heavy fabric dyeing runs finish and reload simultaneously, the plant steam demand drops or spikes by up to 6 t/h within minutes. Standard fire-tube or low-end shell boilers suffer sudden pressure crashes under these thermal shocks.
- Ruinous Fabric Shading Variations: A pressure drop in the distribution line causes an immediate temperature drop inside the fabric drying stenters. This variation shifts the chemical dye fixing rate, creating uneven fabric color shades and ruining entire textile export batches.
- Punishing Local Fuel Tariffs: Pakistan faces volatile industrial natural gas pricing and frequent pipeline pressure drops. Running an older, inefficient boiler with high stack heat loss heavily destroys factory net profit margins.
The textile corporation required a highly advanced, ultra-responsive single-unit 20 t/h gas steam boiler. The asset must maintain steady system pressures while thriving under intense continuous peak demands.

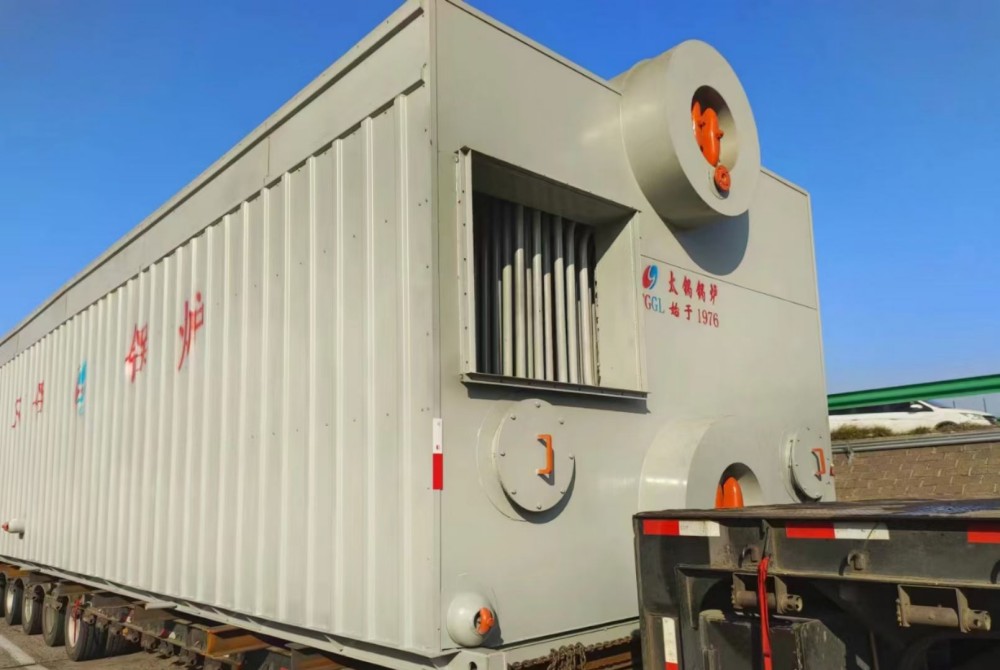

3. The Engineered D-Type Water Tube Solution (SZS20 steam boiler Pakistan)
Taiguo Factory did not suggest a standard fire-tube layout for this intense application profile. Our engineering group deployed our flagship SZS20 double-drum longitudinal D-type water tube boiler system.
High-Velocity Water Tube Thermal Responsiveness
Unlike shell-type systems, our SZS20 architecture routes water through an intricate network of high-pressure boiler tubes welded into gas-tight membrane walls. Water-tube boilers retain significantly smaller water volumes within their heat absorption zones. Consequently, the steam station flashes heat into the process lines instantly, neutralizing sudden 6 t/h load drops or surges without pressure drops.
Gas-Tight Full Membrane Wall Sealing
The boiler furnace is entirely enclosed by water-cooled membrane panels. This configuration eliminates heavy structural firebrick materials completely, removing the risk of masonry thermal cracking under relentless 24/7 multi-shift schedules. The D-type layout expands the radiant furnace space, optimizing natural gas flame development to drop emission intensities.
4. Market Synergies within the South Asian Textile Infrastructure
The Pakistani textile sector remains the primary contributor to national industrial exports, upgrading manufacturing lines rapidly to secure global high-end retail supply chain partnerships. Our high-capacity SZS20 gas-fired water tube boiler serves as a premier utility anchor for this industrial transition:
- Abundant Pipeline Natural Gas Tuning: The system optimizes fuel consumption data via precision imported electronic burners, maintaining peak thermal transfers during gas pressure drops.
- Strict Eco-Zone Environmental Conformance: Advanced large-volume furnace dimensions combined with automated flue gas recirculation (FGR) ensure the entire system is designed to comply with local emission requirements across Punjab industrial zones.
- Absolute Business Continuity Protection: Eliminating unexpected boiler shutdown cycles protects expensive chemical dye batches, stabilizing production schedules across extensive manufacturing zones.
5. Technical Parameters of the SZS20 steam boiler Pakistan Running System
| System Configuration Item | Technical Specification Value |
| Boiler Structural Layout | SZS20-1.6-Q (Double-drum longitudinal water tube D-type layout) |
| Rated Steam Capacity Output | 20 t/h (20 Ton Per Hour Continuous Capacity) |
| Design Structural Pressure | 1.6 MPa (Accommodates large factory pipe grids easily) |
| Saturated Vapor Temperature | 204℃ |
| Measured Boiler System Efficiency | > 96.2% (With Advanced Condensing Heat Reclaimers) |
| Combustion Hardwares | Premium European Fully Modulating Low-NOx Gas Burner |
6. Deep Technical Breakdown Of SZS20 steam boiler Pakistan: Auxiliary Configuration & Safety Automation
For a high-capacity 20-ton industrial water tube asset, instrumentation accuracy and component quality dictate long-term operational profitability. Taiguo Factory executes rigid engineering protocols, matching all core system auxiliaries with world-class hardware:
Three-Element Intelligent Feedwater Regulation
Because water tube boilers evaporate drum water volumes at intense velocities, single-element tracking loops fail during sudden valve changes. We deployed an advanced three-element automatic control logic loop. The system monitors drum water level trends, steam output flow rates, and incoming feedwater velocity simultaneously using a high-precision Siemens S7-1500 PLC matrix. The valve responds instantly to balance the loops, preventing low-water emergency shut-offs.
Premium Hardware Component Standardization:
- Automation PLC System: Siemens central control system equipped with a 12-inch heavy industrial touchscreen interface, offering native support for integration with the mill’s primary Distributed Control System (DCS).
- Gas Safety Train: Germany Dungs explosion-proof dual-block automatic gas isolation valves integrated with digital leakage testing monitors.
- Feedwater Pump Array: Twin high-pressure vertical Grundfos multi-stage centrifugal pumps running with active VFD parallel frequency modulation.
- Continuous Blowdown Matrix: Automated surface blowdown control valves paired with electrical conductivity tracking probes to maintain pure internal water matrices continuously.
7. On-Site Field Assembly and System Commissioning For SZS20 steam boiler Pakistan
Given the large modular dimensions of a 20-ton water tube steam boiler, Taiguo Factory arranged a detailed field engineering campaign at the Faisalabad site.
Phase 1: Heavy Crane Rigging & Structural Leveling

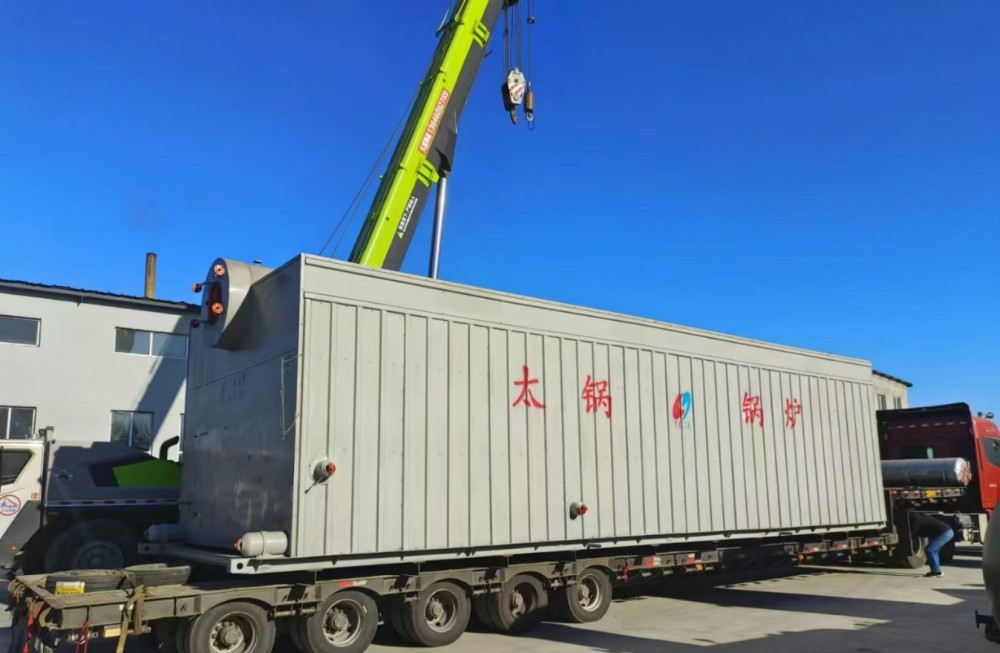

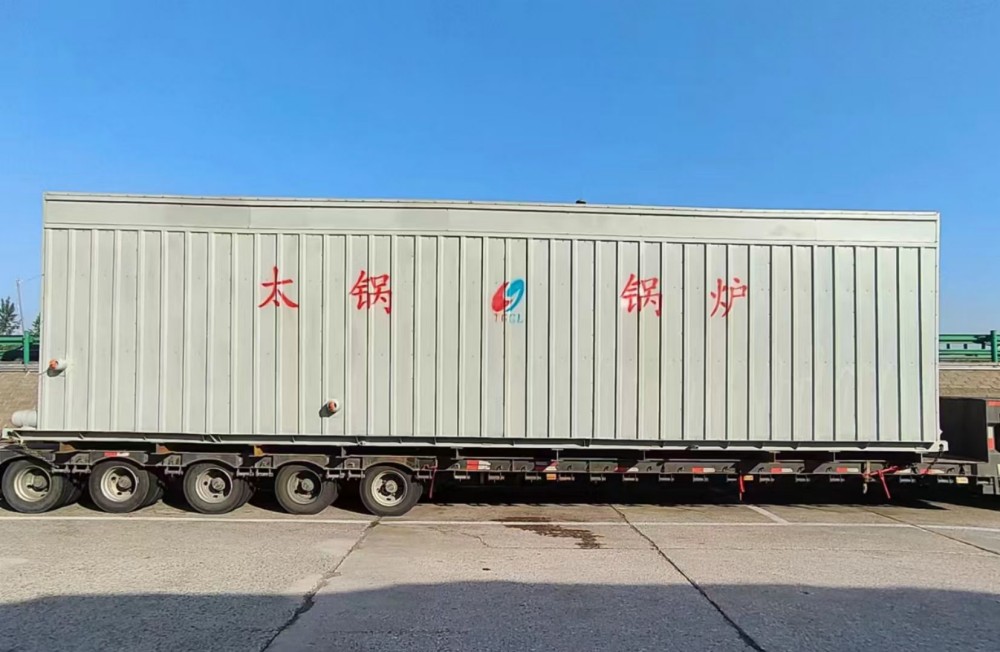

Our factory pre-fabricated the heavy upper and lower longitudinal steam-drums and the complete membrane wall bundle sections as standalone shipping modules. On-site in Punjab, our field engineering crew supervised heavy cranes to seat the assemblies on the reinforced concrete pad. We aligned the long steam drums to within a strict 1mm variance to guarantee uniform internal water lines.
Phase 2: High-Pressure Field Hydro-Testing
Following site assembly and final pipe connecting, our service group directed an exhaustive hydrostatic pressure test at a code-mandated pressure of 2.0 MPa. This validation certified absolute seal safety across all field-welded seams before applying outer rock wool insulation jackets. You can inspect our complete validation checklists on our dedicated Boiler Commissioning Service page.
Phase 3: FGR Combustion Balancing
Our technicians fine-tuned the automated burner air-fuel linkages, mapping the flue gas recirculation (FGR) damper inputs to smooth out natural gas combustion values during high summer intake ambient temperatures.
8. Operating Results & Complete ROI Analysis Of SZS20 steam boiler Pakistan
This SZS20 steam boiler Pakistan has supported the Punjab textile conglomerate flawlessly for over 20 months.
Absolute Eradication of Fabric Shading Flaws
The responsive water tube configuration maintains distribution header pressures within a precise ± 0.04 MPa variance under intense shift switches. This rock-solid thermal control completely eliminated fabric coloring inconsistencies, saving thousands in reject reworking costs.
Direct Commercial Cash Flow Returns:
- Substantial Fuel Saving Efficiencies: Cut overall plant industrial natural gas consumption metrics by 21.8% compared to their older, legacy shell-type steam utilities.
- Direct Monthly Financial Savings: Reduces the textile mill’s operational fuel expenditures by approximately USD 14,200 to USD 16,800 per month.
- Amortization Payback Window: The company fully recovered their total capital investment in this modern boiler asset upgrade within just 15 months of official commissioning.
9. Summary of Engineering Scope Of SZS20 steam boiler Pakistan
Taiguo Factory provided comprehensive lifecycle support and heavy technical execution for this South Asian textile asset, delivering a true high-value turnkey project:
- High-Volume Steam Distribution Engineering: Designed the complete boiler room plant layout, structural piping calculations, and isometric distribution manifold schematics for the 20-ton plant.
- SZS20 Vessel Components Precision Fabrication: Manufactured the thick longitudinal drum steels and bent water-tubes under rigid code inspections with 100% radiographic testing of welded seams. You can review our destructive/non-destructive testing equipment on our dedicated Boiler Manufacturing & Quality Inspection Capabilities page.
- Automated Low-NOx Combustion System Matching: Integrated a premium imported fully modulating gas burner calibrated to handle localized natural gas pipeline pressure variances.
- Overseas On-Site Rigging & Assembly Supervision: Dispatched a field service team to Faisalabad to manage modular alignment, structural positioning, and weld inspections.
- Three-Element Automation Loop Programming: Developed and calibrated customized PLC logic arrays governing three-element water tracking, safety interlocking, and burner throttling.
- Comprehensive 10-Day Operator Technical Certification: Certified local Pakistani plant staff in automated soft-water testing protocols, safety valve blowdown routines, and electronic burner fault diagnosis.
10. Related Solutions & Products
- SZS Large Capacity Gas/Oil Steam Boiler (10t/h – 100 t/h)
- WNS Series Gas/Oil Steam Boiler (1t/h – 20 t/h)
- Industrial Boiler Manufacturing Capabilities
- Customized Thermal Solutions for Textile & Garment Industry
Related Project Case Studies (Cross-Linking Grid):
- Uzbekistan Textile Factory – 12 t/h Gas Steam Boiler Solution Performance Review
- Uzbekistan Textile Mill – 3×SZS10 Intelligent Parallel Water Tube Boiler Grid
- Indonesia Garment Factory – 18 t/h Centralized Parallel WNS6 Boiler Operations
- Saudi Arabia Chemical Plant-SZS 50 t/h D-Type Water Tube Steam Boiler
11. Project Frequently Asked Questions For SZS20 steam boiler Pakistan
Why choose an SZS water tube boiler over a WNS fire-tube boiler for a 20 t/h textile printing project?
WNS fire-tube boilers hold an immense mass of water inside their main shell, creating significant thermal inertia. When textile printing lines experience rapid, massive steam demand shifts, fire-tube boilers react slowly, resulting in large pressure drops. An SZS water tube boiler holds less water and responds instantly to load shifts, keeping steam distribution pressures completely stable.
How does the integrated convective condensing heat reclaimer push boiler efficiency over 96%?
The heat reclaimer matrix captures hot flue gas waste heat from the exhaust stack. The first stage transfers heat directly to preheat incoming boiler feedwater. The secondary condensing stage reclaims latent heat from water vapor within the gas streams, lowering stack temperatures significantly and saving massive fuel volumes.
What water quality parameters are required to protect the small-diameter water tubes from scaling?
To prevent mineral scale layers from burning out the water tubes, the feed-water must undergo full reverse osmosis (RO) treatment and active thermal deaeration. Total water hardness must stay strictly at 0mu mol/L, dissolved oxygen must drop below 0.015 mg/L, and water electrical conductivity must remain under 15 mu S/cm.
How does the system handle unexpected natural gas pipeline pressure drops in industrial zones?
Our imported burner packages include integrated gas pressure regulation valve trains and low-pressure safety switches. If the municipal natural gas pressure drops below safe thresholds, the system modifies the burner fan speed automatically to maintain the optimal air-fuel ratio, preventing flame-outs while stabilizing steam output.
