1. Project Profile & Performance Highlights Of SZS10 steam boiler Uzbekistan
- Location & Year: Tashkent Region, Uzbekistan | Project Commissioned in November 2024
- Client Industry: Mega-Scale Integrated Textile Spinning, Continuous Dyeing & Fabric Finishing Plant
- System Equipment: 3 Sets of SZS10-1.6-Q Saturated Gas Steam Boilers (10 t/h capacity per unit)
- Total Capacity: 30 t/h Giant Centralized Water Tube Steam Power Grid
- Measured ROI: 22.5% Annual Gas Overhead Reduction yielding over USD 16,500+ monthly energy savings with a 14-month capital payback period.
- Track Record: 18+ Months of continuous 24/7 heavy industrial baseload running under massive steam shock loads.
2. Customer Background & Mega Textile Cluster Thermal Energy Pain Points
The client operates one of the largest integrated state-backed textile industrial complexes in the Tashkent region of Uzbekistan. This mega facility runs dozens of ultra-modern, continuous scouring, bleaching, jet dyeing, and fabric printing lines. To feed this massive infrastructure, the centralized utility grid must deliver up to 30 tons of high-purity saturated steam per hour without any thermal disruption.
Operating an industrial steam hub of this scale for textile manufacturing presents severe thermodynamic challenges:
- Punishing Intermittent Peak Load Spikes: When multiple continuous fabric dyeing ranges and drying stenters engage simultaneously, the system steam consumption spikes by 8 t/h within 10 minutes. Standard shell boilers cannot withstand such intense thermal shocks, leading to sudden pressure crashes.
- Fabric Finishing Shading Defects: If boiler steam pressure drops during the fabric chemical fixing or steaming process, the local temperature drops. This creates color shade variations across fabric batches, ruining thousands of meters of export-grade textiles.
- Massive Energy Waste Under Partial Loading: During seasonal shift handovers, maintenance days, or lower product-mix volumes, running an oversized single 30-ton boiler causes severe low-load fuel waste, spiking factory overhead.
The textile group required a highly scalable, flexible multi-boiler water tube plant capable of maintaining steady system pressure while adapting to variable production demands.

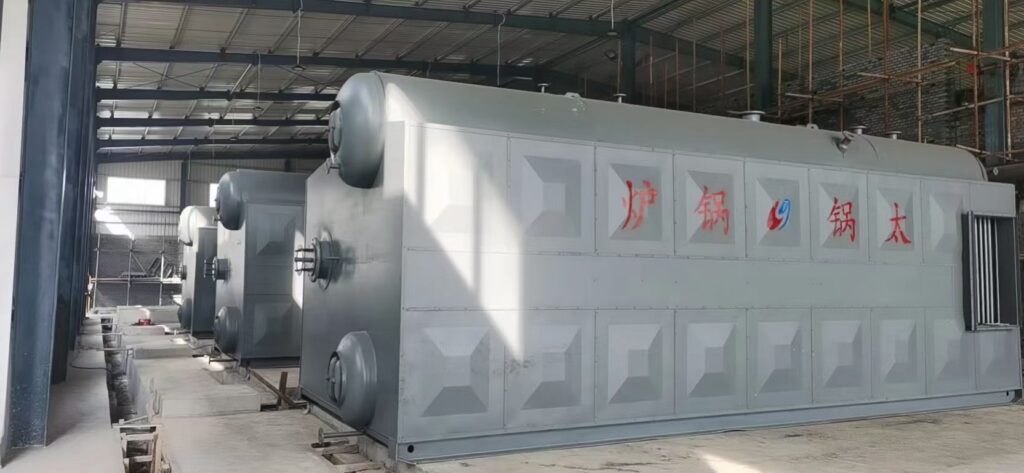

3. The Centralized 3× Water Tube SZS10 steam boiler Uzbekistan Parallel Solution
Taiguo Factory engineered a centralized 30 t/h industrial steam plant deploying three units of 10 t/h SZS double-drum longitudinal D-type water tube boilers running in an intelligent parallel network.
Full Membrane Wall Gas-Tight Combustion Chamber
Each SZS20 water tube boiler incorporates a completely sealed membrane tube wall panel construction. This eliminates traditional heavy refractory brick linings, preventing thermal degradation and structural cracking during rapid heating cycles. The D-type longitudinal layout provides an expansive radiation surface area, accelerating thermal response times to a matter of seconds.
Multi-Boiler DCS Lead-Lag Smart Orchestration
Our engineering team integrated the three independent 10-ton boilers into a unified master-slave automation loop controlled via a centralized plant Distributed Control System (DCS).
- Peak Demand (20 – 30 t/h): All three units run in active modulation to maintain high-volume steam distribution header pressures.
- Medium Demand (10 – 20 t/h): Boiler 1 and Boiler 2 operate at maximum thermal output, while Boiler 3 enters an automated, hot-standby mode.
- Off-Peak / Night Shifts (Below 10 t/h): Only Boiler 1 stays online to power basic fabric lines, completely shutting off the standby gas losses of an oversized utility design.
4. Strategic Alignment within the Uzbekistan Textile Modernization Drive
Uzbekistan is rapidly transforming its industrial framework under aggressive national economic development policies, shifting from raw material trading into high-value textile finishing networks. Our high-capacity SZS gas water tube boiler matrix aligns perfectly with this nationwide manufacturing surge:
- Abundant Local Gas Supply Synchronization: The SZS parallel grid utilizes local natural gas pipelines efficiently, matching advanced burners with optimized gas valve trains.
- Rigid Environmental Compliance Benchmarks: We configured each furnace with large combustion geometries. The combustion systems are designed to comply with local emission requirements across national special economic zones perfectly.
- Uncompromising Business Continuity Assurance: For critical multi-stage textile dyeing lines, steam stops mean complete fabric losses. The 3-boiler parallel setup guarantees built-in 100 % operational redundancy, allowing operators to service one boiler while the remaining units handle factory base-loads safely.
5. Technical Parameters of the Centralized SZS10 steam boiler Uzbekistan Utility Hub
| System Configuration Item | Technical Specification Value |
| Boiler Structural Architecture | SZS10-1.6-Q (Double-drum longitudinal water tube D-type layout) |
| Boiler Fleet Configuration | 3 Units Operating in Smart Lead-Lag Sequenced Parallel Network |
| Total Plant Steam Capacity | 10 t/h Per Unit /30 t/h Combined System Output |
| Rated Operating Pressure | 1.6 MPa (High-pressure margin for long distribution grids) |
| Saturated Vapor Temperature | 204℃ |
| Measured Boiler System Efficiency | > 96.2% (With Advanced Convective Condensing Economizers) |
6. Deep Technical Breakdown Of SZS10 steam boiler Uzbekistan : Auxiliary Configuration & Component Matrix
For a mega-scale 30 t/h utility facility, component durability and instrumentation accuracy dictate the plant’s financial success. Taiguo Factory maintains rigid supply chain standardizations, matching core boiler accessories with world-class hardware:
Three-Element Automatic Feedwater Controls
Water tube boilers hold minimal relative water volumes inside the steam drum, evaporating liquids at immense velocities. We programmed advanced three-element control loops tracking drum liquid levels, outgoing steam flow velocity, and incoming feedwater inputs simultaneously via Siemens S7-1500 controllers. This ensures instantaneous feedwater adjustments during sudden textile line engagements.
Premium Hardware Configuration Selection:
- Combustion Assemblies: 3 Sets of imported fully modulating low-NOx gas burners featuring electronic flue gas recirculation (FGR) control linkages.
- Centralized Automation Panel: Integrated Siemens DCS communication interfaces, allowing remote monitoring and data adjustments from the primary factory control room.
- Gas Safety Infrastructure: Germany Dungs explosion-proof dual-block automatic shutoff valves equipped with computerized valve proving leakage diagnostics.
- Feedwater Pump Array: Multi-pump vertical Grundfos arrays configured with integrated variable frequency drive (VFD) controllers for active flow adaptation.
7. On-Site Heavy Installation and System Commissioning Of SZS10 steam boiler Uzbekistan
Given the extensive size of three separate 10-ton water tube boilers, Taiguo Factory arranged a multi-phase structural rigging and field service deployment in Tashkent.
Phase 1: Heavy Rigging & Foundation Seating
Our manufacturing facility pre-fabricated the longitudinal drum headers and massive membrane wall panel modules. On-site, field crews utilized heavy cranes to position each boiler casing on the customer’s reinforced concrete foundations. We restricted structural level variances to under 1 mm to guarantee uniform internal water distribution across the long drums.
Phase 2: Comprehensive Pipeline Balancing
We engineered and installed a massive 3-in-1 centralized steam header distribution manifold. Our technicians calibrated the non-return check valves and isolation segments, balancing flow velocities perfectly to eliminate pressure differentials between different boiler loops. You can review our full field validation processes on our dedicated Boiler Commissioning Service page.
Phase 3: High-Pressure Hydrostatic Code Certification
Our technical supervisors conducted on-site hydrostatic structural testing at code-mandated pressures (2.0 MPa), certifying complete structural integrity across all field-welded pipe connections before launching main burner operations.
8. Operating Results & Complete ROI Analysis For SZS10 steam boiler Uzbekistan
This centralized 3×SZS10 gas water tube steam boiler installation has delivered uninterrupted utility baseload support for the Tashkent complex for over 18 months.
Zero Fabric Quality Shading Failures Of SZS10 steam boiler Uzbekistan
The highly responsive water tube structures paired with smart master-slave PLC sequencing limit steam manifold pressure variations to a strict ± 0.04 MPa. This rock-solid temperature stability completely eliminated fabric coloring variations, maximizing export-grade factory passing yields.
Direct Commercial Returns Summary Of SZS10 steam boiler Uzbekistan:
- Substantial Fuel Savings Performance: Cut overall industrial natural gas consumption by 22.5% compared to running an aged, single oversized legacy water-tube boiler plant.
- Direct Financial Cash Flow Improvements: Saves the textile industrial group approximately USD 16,500 to USD 19,000 per month in fuel procurement budgets.
- Amortization Timeline: The client fully recovered their entire new multi-boiler facility acquisition, building modifications, and pipeline distribution capital within 14 months of official commissioning.
9. Summary of Engineering Scope Of SZS10 steam boiler Uzbekistan
Taiguo Factory executed a comprehensive turnkey delivery cycle for this high-capacity project, ensuring top-tier manufacturing and technical integration:
- Centralized Utility Plant Thermodynamic Engineering: Designed the complete 3-boiler parallel layout schematics, distribution manifold sizing, and isometric steam pipe network algorithms.
- 3 Units of SZS10 Water Tube Vessels Precision Fabrication: Fabricated the high-pressure longitudinal drums and membrane wall panels under international codes with 100% radiographic testing of welded seams. You can review our testing procedures on our dedicated Boiler Manufacturing & Quality Inspection Capabilities page.
- Advanced Automated Low-NOx Burner Integration: Synchronized three imported modulating burners equipped with electronic FGR controls to maximize natural gas combustion safety.
- Field Construction & Rigging Supervision Support: Dispatched a senior engineering team to Tashkent to direct modular heavy alignment, structural assembly, and safety inspections.
- Centralized DCS Lead-Lag Control Programming: Developed and calibrated custom PLC logic loops to govern automated boiler sequencing, safety interlocking, and parallel load balancing.
- Intensive 10-Day Plant Operator Certification Workshop: Trained local Uzbek plant staff in automated three-element water tracking, industrial water softeners tracking, and emergency safety vent operations.
10. Related Solutions & Products
- SZS Large Capacity Gas/Oil Steam Boiler (10t/h– 100 t/h)
- WNS Series Gas/Oil Steam Boiler (1 t/h – 20 t/h)
- Industrial Boiler Manufacturing Capabilities
- Customized Thermal Solutions for Textile & Garment Industry
Related Project Case Studies (Cross-Linking Grid):
- Uzbekistan Textile Factory – 12 t/h Centralized Gas Steam Boiler Solution Performance
- Uzbekistan Textile Mill – WNS10 High-Capacity Single Unit Steam Boiler Operation
- Indonesia Garment Factory – 18 t/h Centralized Parallel WNS6 Boiler Operations
- Pakistan Premium Textile Printing Mill -20T D-Type Water Tube Steam Boiler
- Saudi Arabia Chemical Plant-SZS 50 t/h D-Type Water Tube Steam Boiler
11. Project Frequently Asked Questions Of SZS10 steam boiler Uzbekistan(FAQ)
Why is a 3×SZS10 water tube parallel system preferred over a single large 30 t/h water tube boiler for a textile complex?
A single large 30-ton water tube boiler suffers from severe low-load fuel waste when fabric lines shut down for maintenance or order transitions. A 3-boiler parallel system allows outstanding operational scalability. It enables the plant to deactivate unneeded modules completely during low-demand windows, matching real-time factory demands with top efficiency.
How does the membrane wall construction enhance the boiler life under intensive shift schedules?
Traditional boilers use heavy firebrick linings that suffer from structural cracking under rapid thermal expansion and contraction cycles. Our SZS membrane walls route water through tightly welded tubes, creating a structural water-cooled jacket. This design absorbs thermal stresses safely, allowing fast cold startups without risking refractory wall failures.
What is the purpose of the convective condensing economizer matrix behind each SZS boiler?
The convective economizer network reclaims hot flue gas waste heat from the exhaust stack. The first stage preheats incoming boiler feedwater, while the secondary condensing stage reclaims latent heat from water vapor within the gas streams, pushing the total thermal efficiency to over 96.2%.
What feed-water purity standards protect the small-diameter tubes of a 1.6 MPa SZS boiler?
To prevent mineral scaling inside the high-velocity water tubes, feed-water must undergo full reverse osmosis (RO) purification followed by active thermal deaeration. Total water hardness must stay strictly at 0 mu mol/L, dissolved oxygen must drop below 0.015 mg/L, and water pH must be maintained between 8.5 and 9.2 to avoid interior pipe corrosion.
