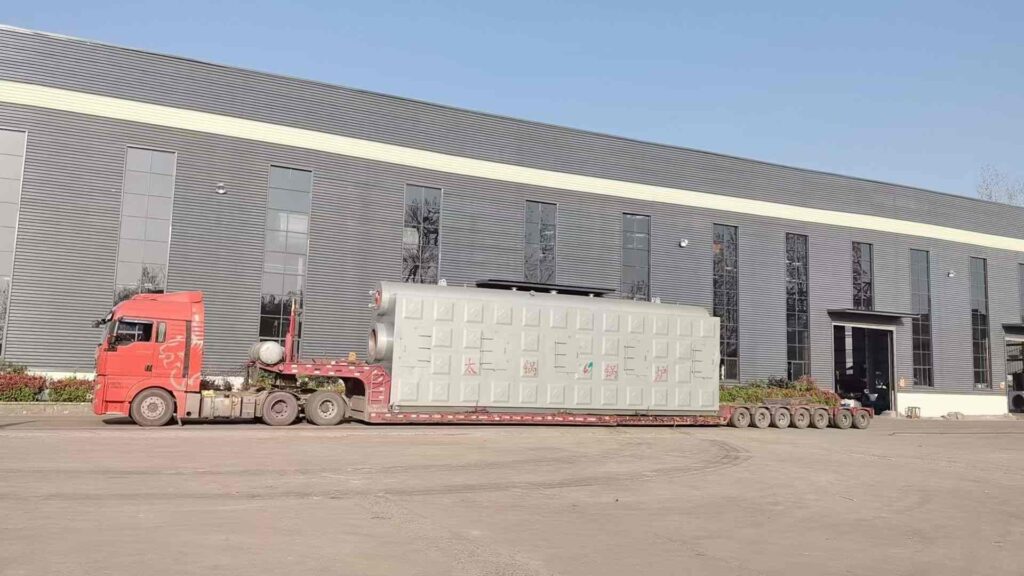

1. Project Profile & Performance Highlights Of SZS50 steam boiler Saudi Arabia
- Location & Year: Jubail Industrial City, Saudi Arabia | Project Commissioned in June 2024
- Client Industry: Large-Scale Petrochemical & Fine Chemical Refining Plant
- System Equipment: 1 Unit of SZS50-2.5-Q Saturated/Superheated Steam Boiler (50 t/h single capacity)
- Core Architecture: Double-drum longitudinal D-type water tube structure with membrane wall sealing.
- Measured ROI: 96.4% Extreme Thermal Efficiency yielding over USD 18,500+ monthly energy cost savings with a 16-month project payback window.
- Track Record: 24+ Months of continuous 24/7 baseload operation under severe 50℃ desert environment conditions.
2. Customer Background & Chemical Sector High-Pressure Steam Pain Points
The client operates a flagship downstream chemical and hydrocarbon refining complex located in Jubail Industrial City, Saudi Arabia. Chemical manufacturing and distillation columns require an immense, high-density thermal energy grid. High-pressure saturated steam acts as both a primary heat source for continuous chemical reactors and a driving force for heavy industrial reboilers.
Operating a massive utility plant in the extreme climate zones of the Middle East introduces three fatal technical liabilities for chemical engineers:
- Absolute Zero Downtime Tolerance: Chemical reactors run under exothermic conditions and cannot tolerate thermal interruptions. A sudden 10-minute steam pressure drop triggers fluid solidification. This issue causes catastrophic chemical batch losses and multimillion-dollar system flushing bills.
- Extreme Ambient Overheating: Midsummer temperatures in Jubail frequently exceed 50℃. Combined with violent sandstorms and airborne dust particles, standard boiler auxiliary electronics, burners, and forced draft fans fail rapidly due to overheating and clogging.
- Stringent Flue Gas Emission Mandates: Modern industrial complexes in Saudi Arabia enforce strict environmental statutes. Large-scale 50-ton boilers must deploy highly advanced low-NOx combustion layouts to pass corporate compliance audits.
The petrochemical plant management required a world-class, heavy-duty 50 t/h water tube steam boiler. The system must operate as a stable baseload anchor while thriving under punishing ambient conditions.
3. The Industrial D-Type Water Tube SZS50 steam boiler Saudi Arabia Solution (SZS50)
Taiguo Factory did not offer a standard shell boiler for this massive scale. Our thermal engineering group deployed our flagship SZS50 double-drum longitudinal D-type water tube boiler system.
Advanced Membrane Wall Architecture & Rapid Thermal Response
Unlike traditional fire-tube boilers, our SZS50 design routes water through a complex network of high-pressure tubes welded into rigid membrane walls. This structure creates an entirely sealed, gas-tight combustion chamber. Water-tube boilers contain smaller water masses per module. Consequently, the system reacts instantly to sudden refinery load demands without thermal lag or steam pressure drops.
Ruggedized Desert-Proof Component Customization
To conquer the harsh Jubail outdoor climate, we tailored all core auxiliary components. The high-capacity forced draft combustion fan features heavy-duty multi-stage sand filters to block airborne silica. Furthermore, we enclosed all Siemens PLC control panels inside IP65-rated, air-conditioned double-layer terminal cabins. This layout isolates delicate microprocessors from external desert heatwaves completely.
4. Why This SZS50 steam boiler Saudi Arabia Solution Matches the Saudi Vision 2030 Industrial Expansion
Saudi Arabia is accelerating its industrial diversification under the Vision 2030 initiative, investing billions into advanced downstream specialty chemical manufacturing zones. Our high-capacity SZS50 gas water tube boiler serves as a premier utility core for this expansion:
- Optimized Natural Gas Integration: The system maximizes energy output from Saudi Aramco’s local pipeline networks via automated fuel-air ratio loops.
- Rigid Middle East Emission Alignment: Combining an expansive furnace volume with specialized flue gas recirculation (FGR) allows the combustion setup to satisfy strict local environmental thresholds.
- High-End Superheated Customization Potential: The D-type longitudinal layout provides sufficient space to integrate specialized convective superheater banks. This setup allows the system to scale from saturated steam to high-temperature superheated vapor smoothly.
5. Technical Parameters of the SZS50 steam boiler Saudi Arabia Running System
| System Configuration Item | Technical Specification Value |
| Boiler Structural Type | SZS50-2.5-Q (Double-drum longitudinal water tube) |
| Rated Steam Capacity | 50 t/h (50 Ton Per Hour Continuous Capacity) |
| Design Working Pressure | 2.5 MPa (High-pressure refinery threshold) |
| Steam Condition Output | Saturated Steam (225℃) / Customizable Superheated |
| Measured Boiler Efficiency | > 96.4% (With Condensing Heat Recovery Matrix) |
| Combustion Hardware | Specialized Ultra-Low NOx Gas Burner with FGR Controls |
6. Deep Technical Breakdown Of SZS50 steam boiler Saudi Arabia: Thermodynamic Design & Auxiliary Engine Configuration
For a 50-ton heavy industrial boiler, component reliability and furnace thermal calculations determine the system’s decades-long lifespan. Taiguo Factory maintains strict procurement standards, selecting only world-class brands for the auxiliary supply chain:
Furnace & Membrane Wall Heat Transfer Design
The furnace uses tight pitch 51mm boiler tubes welded into fully gas-tight membrane walls. This design eliminates traditional refractory bricks, avoiding structural cracking caused by thermal expansion cycles. The convection bank features an optimized staggered arrangement to maximize flue gas disturbance, pushing heat absorption limits to the maximum.
World-Class Premium Component Configuration Matrix:
- Central Control Unit: Siemens S7-1500 Redundant PLC System with a 15-inch heavy industrial touchscreen, enabling seamless integration with the factory-wide Distributed Control System (DCS).
- Gas Valve Train Array: Germany Dungs explosion-proof dual-block gas safety valves equipped with automatic valve leakage testing systems.
- Feedwater Pump Set: Dual Grundfos high-pressure multi-stage vertical pumps configured with intelligent frequency drive (VFD) sequencing for active parallel load redundancy.
- Water Level Monitoring Instrument: Hydrastep electronic steam-drum level indicators combined with independent differential pressure transmitters to fulfill strict safety trip mandates.
7. On-Site Heavy Installation and Commissioning Details
Due to the massive footprint of a 50-ton industrial water tube boiler, Taiguo Factory arranged a multi-stage field engineering campaign in Jubail.
Phase 1: Heavy Rigging & Foundation Positioning

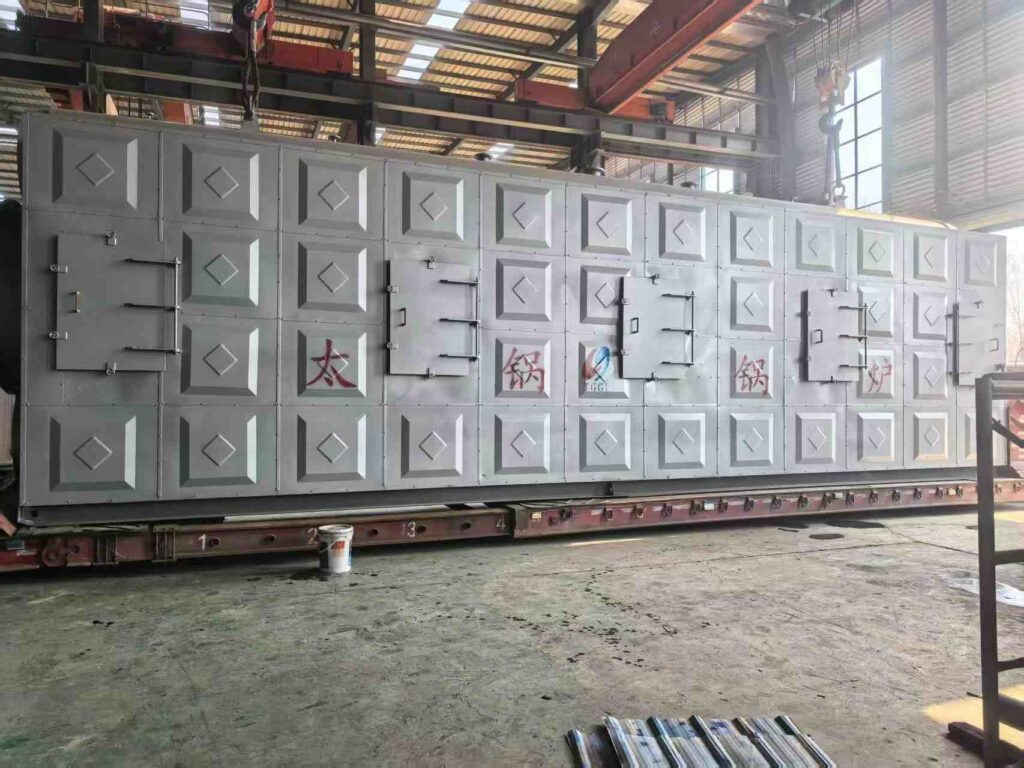

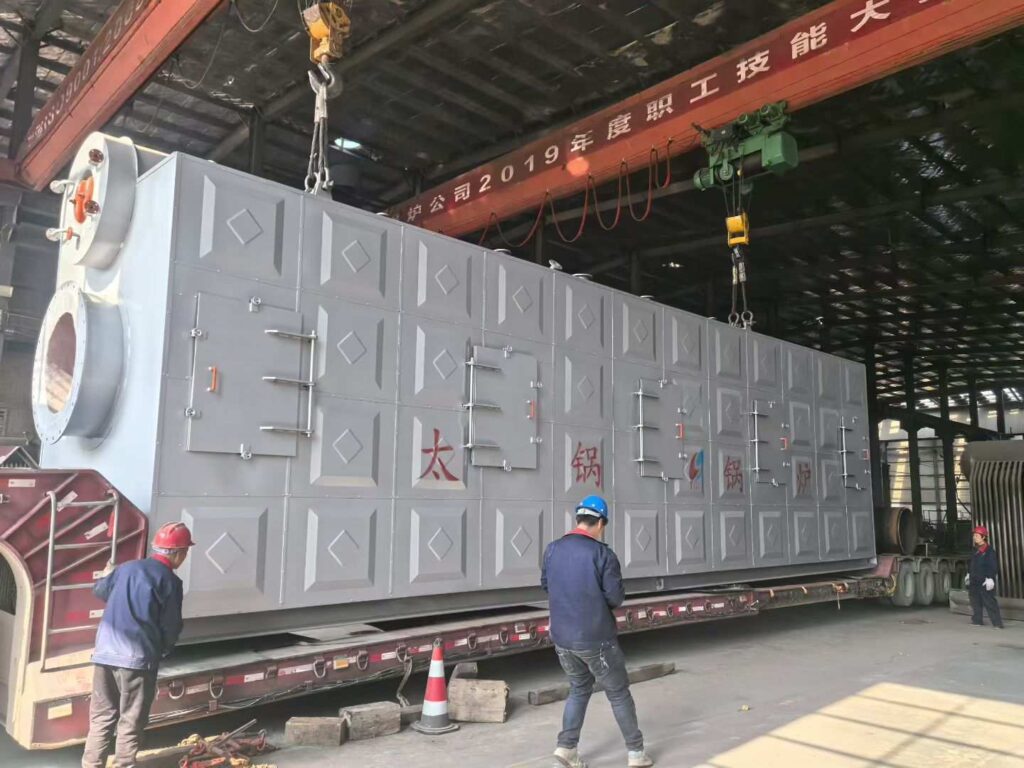

Our factory pre-fabricated the upper and lower longitudinal steam drums along with the membrane wall panel bundles as massive modules. On-site, heavy-duty crawler cranes positioned these components on the customer’s reinforced concrete pad. Engineers calibrated individual level variances to under 1mm to ensure uniform water distribution.
Phase 2: High-Pressure Hydraulic Field Validation
Our service team supervised exhaustive hydrostatic structural checks under $3.12\text{ MPa}$ water pressure, certifying absolute pressure seal safety across all on-site welded segments. You can inspect our full field verification processes on our dedicated [Boiler Commissioning Service](Internal Link to Engineering Hub Page) page.
Phase 3: FGR Combustion & Actuator Tuning
We programmed the electronic air-fuel actuators to regulate flue gas recirculation flow rates. This step maintains top combustion efficiency and minimizes flame core temperatures even under 50℃ scorching air intake environments.
8. Operating Results & Complete ROI Analysis
This SZS50 industrial gas water tube boiler has provided uninterrupted baseload steam utility for the chemical plant for over 24 months.
Zero Reactor Process Disruptions
The water-tube system handles intense, abrupt reactor steam intake valve openings flawlessly. Steam header pressure remains rock-solid within ± 0.05 MPa of the target, recording zero chemical batch solidification losses.
Direct Financial Savings Summary:
- Monthly Fuel Overhead Reduction: Slashed gas consumption by 4.2% compared to the factory’s previous standard system.
- Monthly Monetary Savings: Saves approximately USD 18,500 to USD 22,000 per month in natural gas expenditures.
- Project Capital Payback Period: The plant achieved full financial amortization and capital payback within 16 months of official commissioning.
9. Summary of Engineering Scope
Taiguo Factory executed a comprehensive turnkey delivery cycle for this high-capacity project, ensuring top-tier manufacturing and technical integration:
- Turnkey Heavy Utility Plant Engineering: Designed the complete steam distribution layouts, structural thermal modeling, and piping isometric schematics for the 50-ton facility.
- SZS50 Membrane Wall & Drum Precision Fabrication: Manufactured the heavy longitudinal drums and bent water tubes under rigid quality inspection codes with 100% radiographic testing of welded seams. You can review our destructive/non-destructive testing equipment on our dedicated Boiler Manufacturing & Quality Inspection Capabilities page.
- Sandstorm-Proof Combustion System Engineering: Integrated an imported ultra-low NOx burner equipped with custom anti-sand intake air filtration matrices.
- On-Site Construction & Hydraulic Audit Direction: Dispatched field engineering supervisors to direct modular site positioning, structural column rigging, and code compliance checks.
- Advanced Automatic Control Loop Integration: Wired and calibrated dual-PLC redundancy loops for automatic three-element water level tracing and rapid safety shutoffs.
- Intensive Operator Engineering Certification: Conducted a 10-day intensive technical workshop certifying refinery staff in automated water chemistries, FGR parameters, and emergency venting.
