1. Project Profile & Performance Highlights Of YQW1400Q thermal oil heater Malaysia
- Location & Year: Klang Industrial Zone, Selangor, Malaysia | Project Commissioned in October 2024
- Client Industry: High-Volume Medical Nitrile & Latex Rubber Glove Manufacturing Plant
- System Equipment: 1 Unit of YQW-1400Q Horizontal Gas-Fired Thermal Oil Heater (1.4 MW / 1.2 million kcal capacity)
- Core Requirement: Rock-solid± 1℃ uniform heating fluid delivery across a 150-meter automated continuous dipping oven line.
- Measured ROI: 15% Fuel Gas Efficiency Gains yielding USD 3,800+ monthly savings with a 14-month equipment payback period.
- Track Record: 20+ Months of continuous 24/7 liquid-phase heat circulation with zero structural coil distortion.
2. Customer Background & Glove Sector Precise Temperature Pain Points
The client operates a flagship medical-grade nitrile and latex rubber glove manufacturing complex located in the Klang industrial hub of Selangor, Malaysia. Producing premium rubber gloves requires an uninterrupted, highly precise thermal energy infrastructure. The automated continuous dipping lines require precise, constant heat profiles between 110℃ and 220℃ across multiple stages, including hand-mold preheating, latex coagulant drying, and final rubber vulcanization ovens.
Operating a high-speed dipping line with sub-standard thermal equipment introduces severe financial and quality liabilities for rubber glove manufacturers:
- Devastating Product Pinhole & Blister Defects: If the heating oven temperature fluctuates by even ±3℃, the liquid latex layer cures unevenly. This creates micro-blisters, thinning zones, and pinholes, causing entire batches to fail strict medical FDA compliance tests.
- Long and Costly On-Site Installation Windows: Traditional solid-fuel or large site-built boilers require weeks of on-site refitting, refractory brick laying, and pipe welding. For fast-expanding Malaysian factories, these installation delays cause severe revenue losses.
- Escalating Gas Consumption Bills: Older industrial heaters lack specialized waste heat recovery layouts, leaking massive heat through their exhaust stacks and eroding factory margins amid shifting local gas tariffs.
The factory management required a highly stable, pre-assembled 1400 kW horizontal thermal oil heater capable of maintaining uniform temperature profiles across unrelenting 24-hour manufacturing shifts.
3. The Horizontal Skid-Mounted YQW1400Q thermal oil heater Malaysia Thermal Fluid Solution
Taiguo Factory engineered a YQW1400Q horizontal gas-fired liquid-phase thermal oil heater optimized specifically for continuous conveyor-driven glove dipping operations.

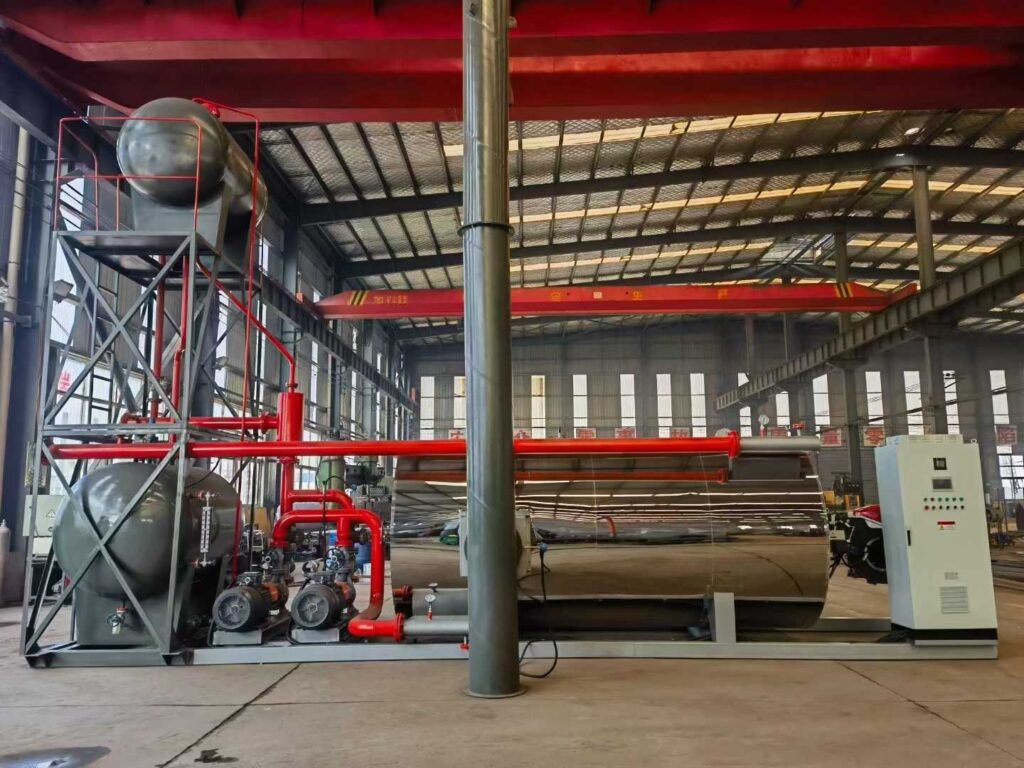

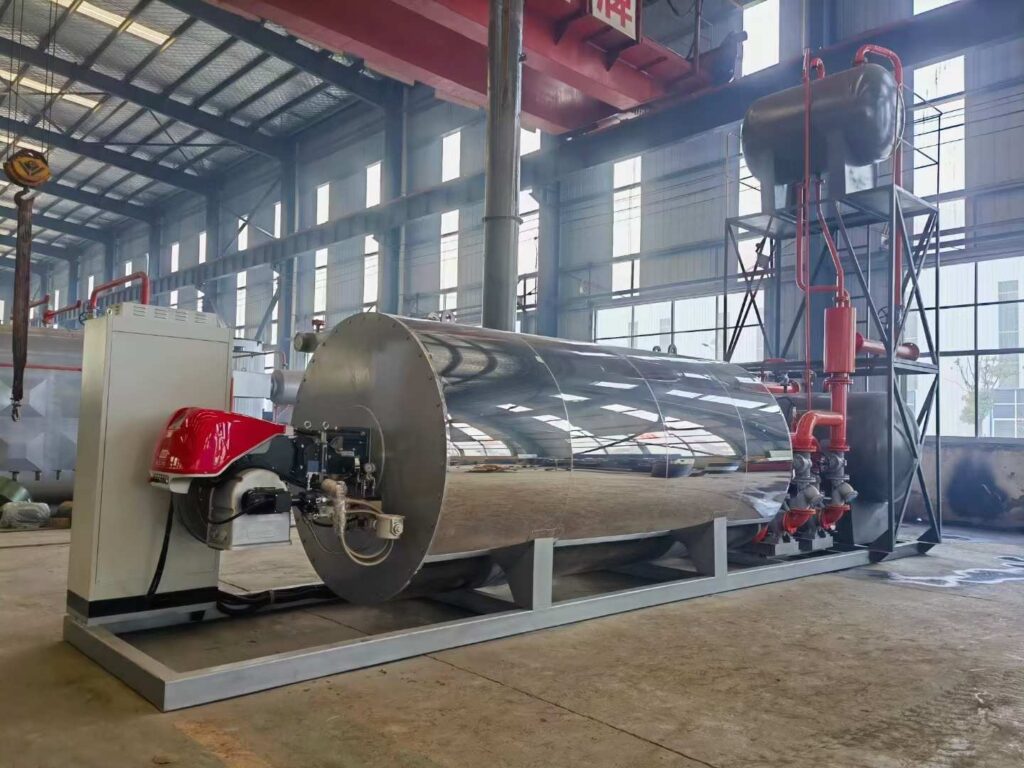

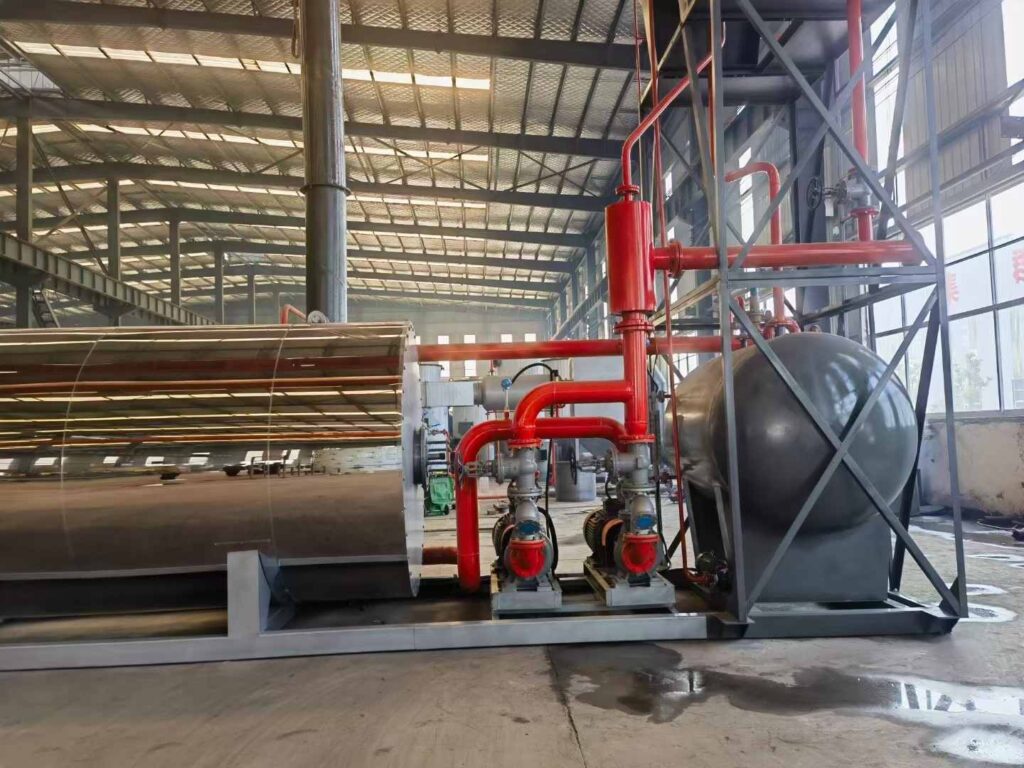

Pre-Assembled Packaged Skid-Mounted Layout For YQW1400Q thermal oil heater Malaysia
Our engineering team designed the YQW1400Q boiler with a heavy industrial horizontal skid structure. We integrated the boiler body, the primary thermal oil circulation pumps, the expansion valves, and the control panels onto a single structural steel skid at our factory. This integrated design allows true plug-and-play installation, reducing on-site pipeline assembly times significantly.
Three-Pass Horizontal Circular Coil Thermal Stability For YQW1400Q thermal oil heater Malaysia
The YQW1400Q organic heat carrier boiler achieves an operating temperature of 220℃ while running at a safe operational pressure below 0.8 MPa. High-temperature thermal oil flows through closely packed horizontal multi-layer circular coils continuously without phase changes. The elongated horizontal combustion chamber provides an expansive radiant heating surface area. This layout keeps oven temperatures perfectly stable within a strict ±1℃ variance, completely eliminating glove pinholes.
4. Market Synergies within the Malaysian Rubber Glove Export Grid
Malaysia supplies over 60% of the world’s medical examination gloves. To maintain their global dominance, local factories are rapidly modernizing their infrastructure to prioritize thermal precision and eco-friendly operations:
- Perfect Pipeline Natural Gas Alignment: The fully modulating automated burner utilizes local natural gas networks efficiently, tracking real-time oven demands to minimize standby waste.
- Strict Regional Environmental Compliance: Advanced combustion chambers ensure the entire oil heater setup is designed to comply with local emission requirements across industrial estates perfectly.
- High Thermal Availability for Intensive Shifts: The ruggedized multi-loop heating coils handle continuous high-velocity fluid circulation easily, supporting uninterrupted 24-hour manufacturing schedules.
5. Technical Parameters of the YQW1400Q thermal oil heater Malaysia Heating System
| System Configuration Item | Technical Specification Value |
| Boiler Model Layout | YQW-1400Q (Horizontal skid-mounted liquid-phase organic heat carrier boiler) |
| Thermal Output Power | 1.4 MW (1,400 kW / 1.2 million kcal/h Capacity) |
| Design Working Pressure | 0.8 MPa (Low-pressure high-temperature safety profile) |
| Media Temperature Range | Maintained at 220℃ for continuous rubber vulcanization |
| Measured System Efficiency | > 95.2% (With Energy-Saving Finned Air Preheater Module) |
| Combustion Hardwares | Premium European Fully Modulating Low-NOx Automatic Gas Burner |
6. System Installation and Commissioning Of YQW1400Q thermal oil heater Malaysia
Our specialized field engineering supervisors traveled to Selangor to direct the complete physical positioning and terminal loop synchronization.
- Skid Level Positioning Audit: Engineers utilized industrial optical instruments to verify the structural level alignment of the horizontal skid foundation, ensuring balanced water-side expansion profiles across the horizontal drums.
- System Boil-Out & Dehydration Controls: Thermal fluids contain micro-moisture particles that can cause pump cavitation. Our team executed a strict 48-hour slow-heating dehydration program to vent water vapor safely before launching full manufacturing speeds. You can inspect our full field validation processes on our dedicated Boiler Commissioning Service
- Three-Way Modulating Valve Integration: We calibrated automated three-way bypass valves at the oven inlets to adjust oil flows in real-time, locking in precise temperatures across separate drying zones.
7. Operating Results & Complete ROI Analysis Of YQW1400Q thermal oil heater Malaysia
This YQW1400Q horizontal gas thermal oil heater has delivered exceptional continuous service at the Klang facility for over 20 months.
- Zero Pinhole Quality Failures: Absolute ± 1℃ temperature control across the long baking zones eliminated rubber skin defects completely, dropping glove rejection rates to zero.
- 15% Monthly Natural Gas Savings: An advanced finned air preheater reclaims stack waste heat to preheat burner intake air, cutting fuel gas bills significantly.
- Direct Financial Return: The combined combustion efficiencies save the glove manufacturing plant approximately USD 3,800 to USD 4,500 per month in natural gas costs.
- 14-Month Equipment Amortization: The factory completely recovered its total boiler unit acquisition and piping infrastructure investment within just 14 months of operation.
8. Summary of Engineering Scope Of YQW1400Q thermal oil heater Malaysia
Taiguo Factory provided comprehensive turnkey delivery and service for this Malaysian industrial asset, ensuring complete process synchronization:
- Packaged Industrial Loop Pipeline Design: Engineered advanced horizontal skid layout connections to safely deliver high-temperature oil through extensive factory workshops.
- YQW Coils Vessel Precision Manufacturing: Fabricated the layered internal circular heating coils under strict hydraulic codes with 100% radiographic testing of welded seams. You can review our testing protocols on our dedicated [Boiler Manufacturing & Quality Inspection Capabilities](Internal Link to Engineering Hub Page) page.
- Air Preheater Heat Recovery Integration: Manufactured and assembled an advanced finned-tube air preheater module to capture stack exhaust heat efficiently.
- On-Site Fast Plug-and-Play Assembly Supervision: Managed the quick-positioning heavy crane logistics, terminal pipe tie-ins, and gas manifold matching loops.
- Centralized Control Automation Programming: Configured automated Siemens PLC logic loops for real-time oil flow tracing, differential pressure monitoring, and auto-burner modulation.
- Local Factory Operator Technical Training: Certified local plant engineers in automated soft-water management, daily safety block checkups, and thermal fluid property analysis routines.
9. Related Solutions & Products
- YQW Series Gas/Oil Thermal Oil Heater (240 kW – 14000kW)
- YLW Series Coal/Biomass Thermal Oil Boiler (350kW– 14000 kW)
- Industrial Boiler Manufacturing Capabilities
- Customized Thermal Solutions for Chemical & Rubber Industries
Related Project Case Studies (Cross-Linking Grid):
- Uzbekistan Textile Factory – 12 t/h Gas Steam Boiler Solution Performance Review
- Indonesia Palm Oil Refinery – YQW 2.4 MW Gas-Fired Thermal Oil Heater Operations
- Indonesia Wood Processing Plant – YLW Biomass Chain Grate Thermal Oil Boiler
10. Project Frequently Asked Questions (FAQ)
What are the main benefits of a YQW horizontal packaged boiler over field-assembled heaters?
Field-assembled units require extensive on-site structural welding, valve calibration, and circuit wiring, pausing production for weeks. The YQW horizontal packaged boiler arrives with core auxiliaries pre-mounted on a heavy structural steel skid. This allows rapid site integration and shortens the installation window dramatically.
How does the boiler prevent thermal oil degradation when running continuous 24/7 schedules?
Our design enforces high fluid velocities inside the circular coils, maintaining turbulent flow profiles above 2.5 m/s. This swift circulation prevents localized fluid overheating. It eliminates coking and carbon deposits, keeping the heat transfer surfaces clean and expanding oil life significantly.
Why is a thermal oil heater preferred over a high-pressure steam boiler for glove vulcanization?
Nitrile vulcanization requires stable temperatures above 200℃. A steam system would require an expensive, high-pressure infrastructure operating above 1.6 MPa to reach this temperature. Thermal oil hits 220℃ under zero pressure liquid circulation, slashing equipment wall thickness costs and maximizing plant safety.
What happens if the oil circulation pump fails suddenly during operation?
Safety is our absolute engineering baseline. If the differential pressure switch senses a drop in oil flow, the centralized Siemens PLC cuts power to the gas burner instantly. Simultaneously, an emergency standby pump engages to maintain fluid circulation, protecting the heating coils from furnace radiant heatwaves.
