Designing an efficient and safe industrial thermal facility requires meticulous planning. A professional boiler room layout design is vital for reliable steam production, operator safety, and long-term system reliability.
As a leading industrial boiler manufacturer, our overseas engineering division delivers tailored Boiler Room Layout Design. We optimize your available floor space, reduce civil engineering costs, and ensure strict compliance with global safety codes.
Industrial Applications & Industry Scenarios
Our engineering division tailors every boiler room layout design to match specific industrial operational workflows:
- Textile Factory Steam System: Optimized for continuous high-volume steam loads with integrated condensate recovery.
- Food Processing Plant Boiler Room: Engineered with strict sanitary piping layouts and rapid load-response configurations.
- Chemical Plant Steam Distribution: Features advanced explosion-proof zoning and specialized hazardous gas ventilation.
- Paper Mill Energy System: Large-scale multi-boiler configurations designed for massive, uninterrupted thermal output.
- Industrial Laundry Boiler System: Ultra-compact layouts that maximize steam output within limited urban footprints.
Key Principles of Industrial Boiler Room Layout Design
Our engineering team executes every project based on four foundational parameters:
Spatial Planning and Clearances
We allocate sufficient physical space for each boiler unit, piping network, and maintenance access aisle. Our designs systematically reserve unblocked areas for future facility expansions. We guarantee a minimum front clearance of 2 meters for easy tube cleaning and burner maintenance.
Ventilation and Airflow Optimization
Industrial burners demand massive, continuous volumes of fresh air for stable fuel combustion. We engineer high-capacity air intake louvers near the floor level and exhaust ventilation near the ceiling. This strategic layout creates a linear, vertical airflow that handles massive volumetric changes during peak burner operations.
Equipment Maintainability
We position daily control interfaces, water softeners, and blowdown valves along clear, wide walkways. Technicians can safely access every valve, gauge, and control panel during routine inspections or emergency shutdowns.
Safety Escape Routes
Our blueprints incorporate a dual-exit architecture into every facility design. We guarantee completely unblocked emergency egress routes. These dedicated pathways allow operators to evacuate the thermal plant instantly during critical plant emergencies.
Engineering Boiler Room Layout Design Parameters & Standards
We strictly adhere to international engineering benchmarks to ensure absolute operational safety and maximum thermal efficiency:
- Boiler Spacing: We maintain ≥ 1.5 to 2 meters of clear space between boiler shells for safe maintenance access.
- Steam Pressure Loss Control: We limit total pressure drops to < 5% across the primary distribution mainline.
- Ventilation Rate: We calculate total airflow capacity based on exact burner combustion air and ambient heat dissipation requirements.
- Safety Clearance: Every physical layout fully complies with international ASME and EN/CE standards.
Multi-Boiler System Integration Strategies
When installing multiple industrial boilers within a single thermal plant, our division implements advanced grid integration:
- Steam Header Optimization: We design centralized steam distribution headers to balance thermal loads and minimize line pressure drops.
- Redundancy and Load Sharing: Our configurations allow flexible master-slave automated sequencing, ensuring uninterrupted steam supply during individual unit maintenance.
- Smart Control Automation: We integrate centralized PLC monitoring systems for synchronized fuel regulation, water feed synchronization, and remote data logging.
Fuel and Auxiliary System Layout
We separate high-voltage electrical cabinets from fuel supply lines to eliminate hazardous ignition risks. Auxiliary machinery undergoes strategic positioning to maximize thermal efficiency:
| Auxiliary Component | Strategic Layout Positioning Logic |
| Water Treatment System | Positioned close to the raw water intake to minimize supply piping friction. |
| Feedwater Tank & Deaerator | Elevated above the feedwater pumps to prevent pump cavitation via positive suction head. |
| Blowdown Expansion Tank | Located near external drainage trenches for safe, immediate thermal dissipation. |
Common Boiler Room Layout Design Pitfalls to Avoid
Improper layout planning creates long-term operational liabilities. Our engineering audits frequently eliminate these common factory errors:
- Insufficient maintenance clearance or overly congested piping loops.
- Poor ventilation leading to structural moisture condensation or high burner ambient heat.
- Ignoring mandatory safety clearance distances between fuel storage tanks and electrical switchgear.
- Lack of predefined structural spacing for future water pump or economizer retrofits.

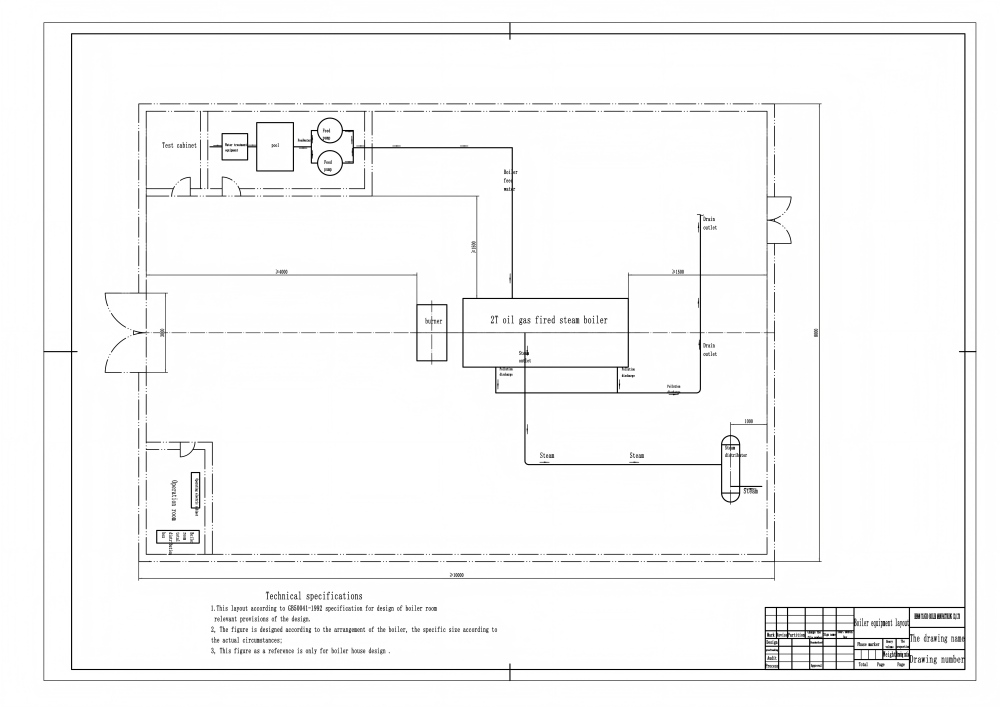

Standard Equipment Arrangement & Boiler Room Layout Design Blueprint
For a typical high-capacity industrial steam thermal plant, our engineering team implements a standardized parallel arrangement layout to maximize fluid efficiency:
- Parallel Boiler Alignment: We align industrial boilers side-by-side, maintaining identical maintenance clearance corridors between the pressure vessel shells.
- Proximity Auxiliaries Setup: We position critical feedwater pumps and water softening skids closely behind the boiler back-ends to shorten suction lines.
- Sloped Steam Mainlines: Our blueprints run the main steam distribution headers horizontally along one structural side wall, incorporating a strict 1% downward slope to guarantee continuous, safe condensate drainage.
- Laminar Airflow Routing: We strategically align forced-draft intake fans with overhead exhaust air ducts to establish linear, laminar air circulation across the entire facility.
