Project Overview Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan
- Project Location: Tashkent, Uzbekistan
- Target Industry: Large-Scale Textile Manufacturing & Fabric Dyeing

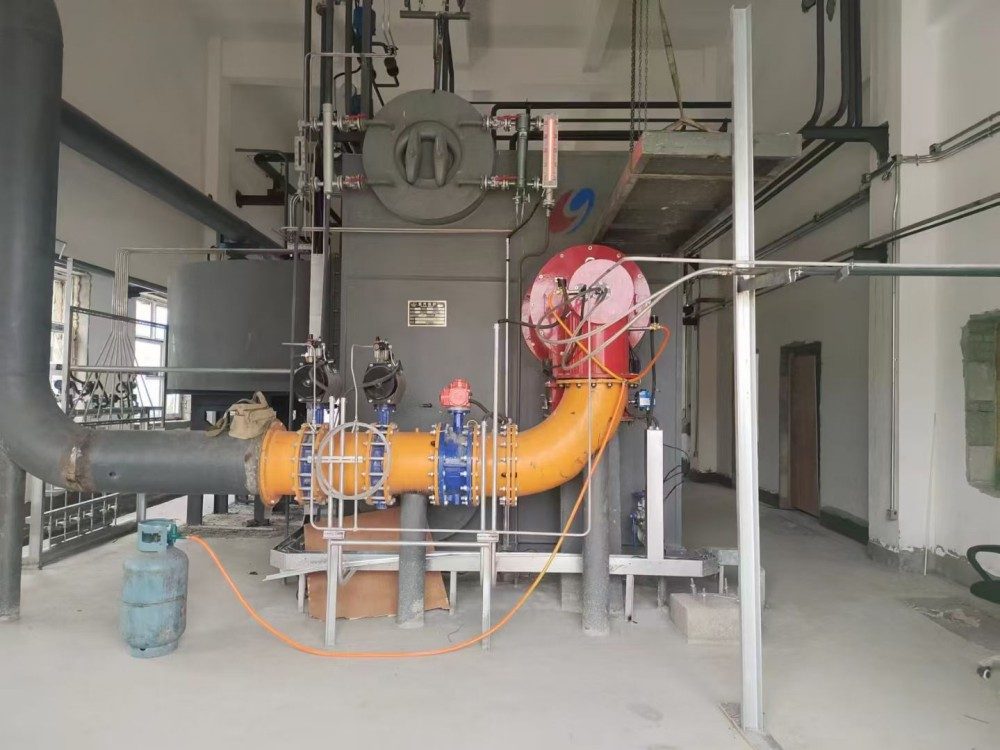

- Boiler Model: Taiguo SZS10-1.6-Q High-Capacity Water Tube Boiler
- Primary Fuel Type: Natural Gas (Pipeline Supply)
- Commissioning Year: 2025
- Engineering Scope: Custom Thermal System Engineering, Double-Drum Structural Design, Global Logistics, On-Site Installation Management
Technical Parameters & Specifications Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan
Large-scale textile finishing hubs require continuous, high-volume steam flows to sustain critical dye vats and print lines. The table below outlines the rigorous technical configuration engineered by Taiguo for this high-capacity Uzbekistan infrastructure deployment:
SZS 10 t/h Water-Tube Boiler Technical Parameters
Comprehensive thermodynamic thresholds, structural features, and industrial compliance criteria.
| Parameter Item | Specification / Engineering Value | Technical Notes & Compliance |
|---|---|---|
| Boiler Type |
SZS Double-Drum D-Type ↗
Water-Tube |
Water tube design handles high-volume steam loads safely without thermal shock risks. |
| Rated Steam Capacity | 10 Tons per Hour (10 t/h / 7,000 kW) |
Tailored for massive, simultaneous continuous dyeing and washing production lines. |
| Design Pressure | 1.6 MPa (16 Bar / 232 PSI) |
Sustains high-velocity thermal headers across expansive plants with minimal distribution drop. |
| Saturated Steam Temp. | 204°C | Provides intense, rapid heat transfer for industrial stenters and drying cylinders. |
| Boiler Layout | D-Type Arrangement Membrane Wall Construction |
100% gas-tight membrane walls prevent flue gas leakage and lower casing heat dissipation. |
| Convective Bank | Inline Arrangement Tubes | Optimizes heat transfer while lowering gas-side flow resistance and soot accumulation. |
| Thermal Efficiency | 98.1% (With Dual Condensing Recovery) |
Drastically scales down daily gas bills and fuel consumption for industrial textile loops. |
| Automation System | Siemens PLC Multi-Point O₂ Feedback |
Monitors real-time combustion air to maintain stoichiometric combustion and peak efficiency. |
Customer Challenges: High-Volume Steam Fluctuations in Tashkent Textiles
A premier textile manufacturing corporation in Tashkent, Uzbekistan, required a massive thermal infrastructure expansion. The plant runs continuous automated dye vats, rapid fabric washing arrays, and heavy-duty fabric printing lines simultaneously.
To maintain production speed and color consistency across premium fabrics, the facility demands a constant supply of high-volume, high-pressure steam.
The client’s legacy fire-tube boiler array was failing to cope with their expanded footprint, introducing two severe commercial risks:
- Insufficient Peak Capacity Response: When multiple large-scale dye vats opened their steam valves simultaneously, the old fire-tube boilers suffered from thermal lag. The steam pressure dropped rapidly across the main lines. This extended the dyeing cycles, caused color shading variations, and ruined high-value export fabric batches.
- High Structural Wear from Thermal Shocks: The rapid load swings subjected the old boilers’ tubesheets to severe thermal stress. This resulted in frequent tube weld cracking and expensive, unscheduled production shutdowns.
The factory required a transition to a high-capacity water-tube layout. They needed a verified industrial partner capable of execution spanning from complex structural engineering design to complete on-site installation in Central Asia.
Textile Mill Steam Demand and Boiler Selection
Our engineers evaluated thermal demand by assessing individual process stages across the plant:
The final 10 t/h capacity was determined based on the customer’s production schedule, peak steam demand, and planned capacity expansion.
Textile Mill Steam Consumer Dynamics & Boiler Selection
| Process Stage | Operating Characteristics | Steam Flow Profile |
|---|---|---|
| Fabric Dyeing | Batch heating of dye baths to 95°C–130°C | High intermittent peak loads |
| Continuous Washing | Hot water wash boxes running at 85°C | Steady continuous baseline |
| Stenter Frame Drying | Finned radiator heating for moisture evaporation | Continuous medium-to-high load |
| Finishing & Setting | Direct/indirect steam cylinders for smooth finish | Uniform low-to-medium load |
| Estimated Peak Demand | Concurrent operation during multi-shift peaks | ~8.8 t/h – 9.2 t/h |
| Selected Boiler | SZS10-1.25-Q Packaged Unit | 10.0 t/h rated output |
A 10 t/h unit provides sufficient operational headroom. This margin absorbs peak dyeing demands without causing pressure sags in the stenter lines.
Detailed Engineering Solution: Customized SZS Gas Steam Boiler for Textile Mill in Uzbekistan
To address these massive load profiles, Taiguo engineered an advanced SZS10-1.6-Q high-capacity water tube boiler. The SZS Gas Steam Boiler for Textile Mill in Uzbekistan classic double-drum D-type layout provides structural safety and rapid thermal response times under fluctuating conditions.
1. Robust Double-Drum Water Tube Structure Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan
The water tube design separates water circulation entirely from combustion gases. The large upper and lower drums provide exceptional water capacity and thermal inertia. This configuration accommodates instantaneous load surges up to 10 tons without suffering from pressure dips or tubesheet distortion.
2. Full Membrane Wall Combustion Chamber Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan
We engineered a completely enclosed membrane wall structure around the furnace zone. This design uses continuous welded tube panels to create a 100% gas-tight barrier. It eliminates heavy refractory firebrick components completely, improves radiant heat absorption, and prevents flue gas bypass leaks.
3. Double-Stage Internal Steam Separation Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan
To guarantee absolute color consistency in premium fabrics, steam dryness must remain near perfect. Taiguo integrated an advanced double-stage separation system inside the upper steam drum. It features primary cyclone separators followed by secondary chevron scrubbing grids. This combo maintains output steam dryness above 99.5%.
4.Large Steam Capacity
At 10 t/h, water-tube designs handle operational stresses effectively over extended periods.
5.Responsive Load Modulation
Textile dyeing creates sharp load swings. The water-tube design responds quickly to rapid firing adjustments.
6.Reliable Water Circulation
Natural convection circulation protects boiler tubes from localized overheating during prolonged manufacturing runs.
7.Clean Gas Integration
The furnace dimension matches natural gas flame geometry, ensuring complete combustion and low NOx emissions.
Complete Boiler System Configuration
A reliable high-pressure boiler room requires balanced peripheral equipment. We supplied a complete mechanical and electrical balance-of-plant package:
Gas Train: Includes double block valves, gas filter, precision pressure regulator, and safety relief vents.
Low-NOx Burner: Electronic air-fuel ratio control maintains complete combustion across the entire modulation range.
High-Pressure Feedwater System: Two multistage centrifugal pumps arranged in active/standby mode ensure uninterrupted drum feeding against 1.6 MPa vessel pressure.
Dual-Stage Water Softening & Deaeration: Ion-exchange resin units and thermal deaeration remove hardness minerals and dissolved oxygen to prevent tube corrosion.
Finned-Tube Economizer: Recovers exhaust heat, preheating feedwater before entry into the upper steam drum to achieve 98% thermal efficiency.
Steam Distribution Header: Collects 1.6 MPa steam and distributes it directly to high-temperature stenters while routing through PRV stations for lower-pressure dyeing baths.
PLC Automation Cabinet: Monitors drum water level, furnace pressure, steam flow, and burner status in real time.
Installation & Commissioning Process
Deploying a 10-ton water tube boiler system requires extensive logistics coordination and precise on-site construction management. Taiguo dispatched a senior overseas engineering team to Tashkent to manage the complete turn-key mechanical erection.
Our overseas construction deployment process was carried out across five critical stages:
- Module Rigging & Assembly Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan: We managed the complex transport and positioning of the upper and lower drums, followed by the seamless on-site erection of auxiliary platforms.
- Pipeline & Deaerator Integration Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan: Our team connected the high-pressure feedwater manifold lines and calibrated a heavy-duty thermal deaerator system to strip dissolved oxygen from incoming water loops.
- 100% Non-Destructive Testing (NDT) Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan: Certified quality control technicians executed on-site X-ray examinations across all high-pressure water tube junction welds to confirm zero internal anomalies.
- High-Pressure Hydraulic Testing Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan: We subjected the complete pressure framework to a hydrostatic test at 2.4 MPa (1.5 times the maximum design pressure), holding it stable to guarantee structural integrity.
- Fully Automated System Commissioning Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan: Our engineers fine-tuned the multi-burner arrangement and calibrated the PLC oxygen sensors. We verified the automated safety trips, low-water cutoff interlocks, and overpressure protections.
Project Results Of SZS Gas Steam Boiler for Textile Mill in Uzbekistan: Measurable Operational ROI Data
The SZS high-capacity steam boiler system achieved exceptional performance parameters immediately following deployment. The data matrix below details the upgrades over their old equipment:
Legacy Fire-Tube vs. Modern SZS Water-Tube System
Comparative thermodynamic benchmark across continuous industrial textile operations.
| Performance Indicator | Legacy Fire-Tube Boiler | New SZS System ↗ | Operational & Financial Impact |
|---|---|---|---|
| Fuel Utilization Efficiency | 83% Wasted Thermal Energy | 98.1% Condensing Recovery | 15.1% Total Fuel Savings: Minimizes natural gas consumption across continuous operations. |
| Steam Dryness Level | < 95% Frequent Priming | 99.5% Centrifugal Dry Steam | Flawless Fabric Dyeing: Eliminates color shading flaws and water carryover damage. |
| Pressure Stability Range | ±0.20 MPa Volatile Surges | ±0.02 MPa Precision Modulation | Uninterrupted Output: Maintains constant pressure during peak dye vat demand surges. |
| Refractory Repair Costs | High Yearly Brick Maintenance | Zero Expenses 100% Membrane Walls | Low Maintenance Costs: Full membrane walls remove expensive firebrick repairs completely. |
| System Load Adaptation | Slow & Lagging Thermal Inertia | Rapid & Smart Dynamic Modulation | Maximized Output: Water tube configuration scales quickly to meet sudden plant demands. |
Why Natural Gas Was Selected in Uzbekistan
Thermal energy selection depends heavily on local infrastructure and operational patterns. The client opted for pipeline natural gas for clear engineering reasons:
- Direct Pipeline Access: The manufacturing site sits close to an industrial gas trunk line with reliable supply pressure.
- Zero Fuel Storage Footprint: Gas firing eliminates storage silos, unloading hoppers, and manual handling required by solid fuels.
- Clean Flue Gas Profile: Natural gas produces no fly ash or soot, protecting sensitive dyed fabrics from airborne contamination.
- Fast Burner Turndown: Gas-fired burners throttle down instantly when textile machines pause, avoiding unnecessary fuel waste.
- Continuous Shift Compatibility: Automated fuel feeding supports uninterrupted multi-shift textile manufacturing.
Lessons from This Uzbekistan Textile Boiler Project
- Pressure Defines Process Temperature: Stenter heat-setting requires saturation temperatures above 180℃, making a 1.6 MPa boiler system mandatory.
- Size for Peak Process Demand: In fabric dyeing facilities, average hourly demand figures mislead. Sizing must accommodate simultaneous batch heating cycles.
- Pressure Stability Protects Fabric Quality: Inconsistent steam pressure degrades textile finishing. Water-tube designs buffer dynamic steam draws effectively.
- Feedwater Quality Governs Boiler Lifespan: Water-tube systems require strict hardness and dissolved oxygen control. Automated water treatment must be integrated early.
- Design Steam Distribution with PRV Stations: Running high pressure (1.6 MPa) through the main header and stepping down locally optimizes piping size and thermal control.
Project Engineering Gallery
Discover the real-world deployment footprints of Taiguo Boiler across Central Asian textile hubs. Every stage highlights our strict quality standards.
- Precision Manufacturing – Advanced X-ray non-destructive welding inspection of the heavy-duty SZS upper and lower drum assemblies at our factory.
- Central Asia Logistics – Heavy-duty structural anchoring and secure wood-crate packaging prepared for specialized international rail freight transit straight to Tashkent, Uzbekistan.
- On-Site Erection – Taiguo overseas technical team using heavy rigging cranes to position the large D-type boiler modules and assembling the water-tube membrane wall panel grids. Read about our international field construction standards on our dedicated Industrial Boiler Engineering page.
- System Integration – Integrating the high-capacity thermal deaerator system and executing proportional air-to-fuel calibration on the imported natural gas burner.

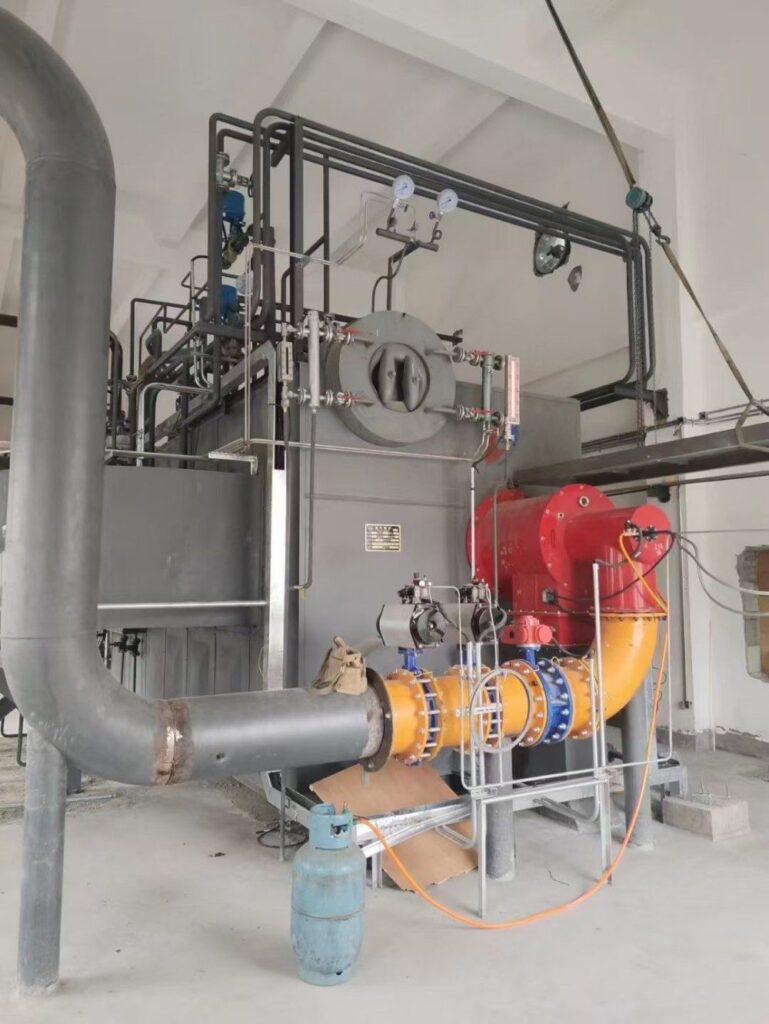

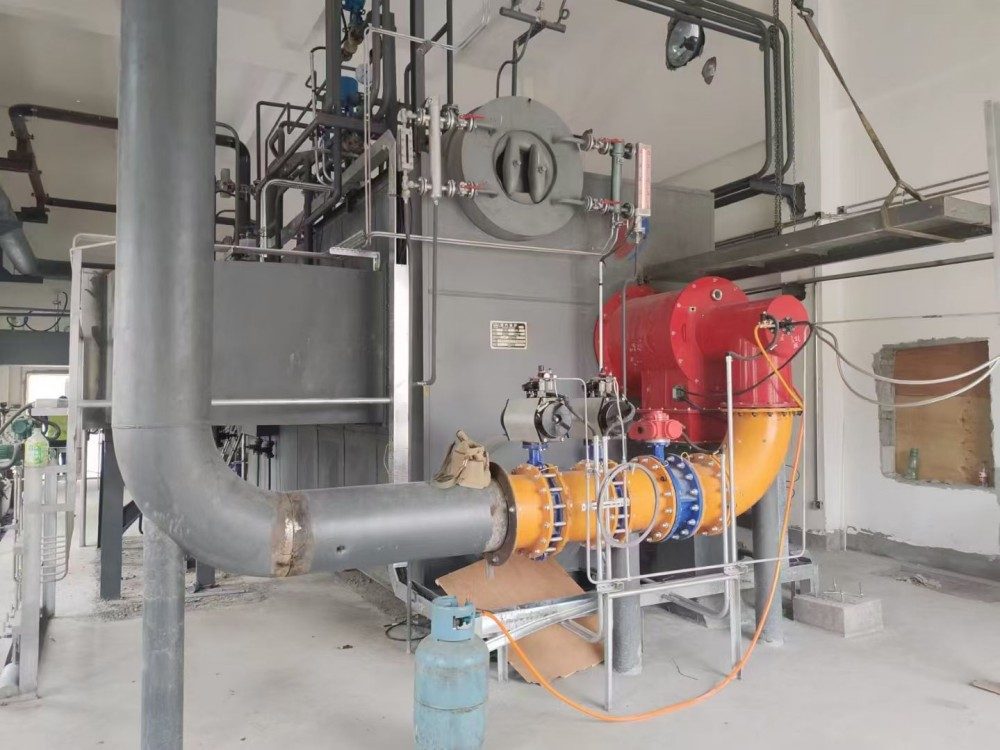

- Continuous Operation – The final 10 t/h gas water-tube boiler running cleanly and delivering continuous, high-volume steam to the client’s automated dye vats.
FAQ
Why is an SZS water tube boiler superior to a fire tube boiler for large textile mills?
Large textile mills operate massive dye vats that create sudden, heavy steam load demands. Fire tube boilers react slowly and suffer from structural stress under these fluctuations. Taiguo SZS Gas Steam Boiler for Textile Mill in Uzbekistan have faster water circulation and a resilient membrane design, allowing them to adapt to rapid load swings safely without pressure drops.
How does the full membrane wall design lower factory maintenance costs?
Traditional industrial boilers rely on thick refractory bricks to retain heat inside the furnace. These bricks crack under constant temperature changes and require regular replacement. Taiguo’s membrane walls use continuous welded steel tubes filled with circulating water, eliminating firebrick refractories entirely to cut maintenance costs.
What parameters does Taiguo verify during on-site commissioning?
Our overseas engineering division conducts full turnkey testing. This includes pipeline flush verification, X-ray weld inspection, high-pressure hydrostatic integrity checks, burner air-to-fuel calibration, automated safety trip validation, and full operator training.
Can the SZS boiler series handle multi-fuel gas supply systems?
Yes. The SZS Gas Steam Boiler for Textile Mill in Uzbekistan features a highly adaptable furnace geometry. It can be paired with premium multi-fuel burners to run interchangeably on natural gas, liquefied petroleum gas (LPG), compressed biogas, or light diesel oil.
