Super SZS15 Hot Water Boiler Kazakhstan For District Heating

1. Project Profile & Performance Highlights Of SZS15 hot water boiler Kazakhstan

Location & Year: Karaganda Region, Kazakhstan | Project Commissioned in September 2024

Client Industry: Municipal Public Utility & Centralized District Thermal Heating Network

System Equipment: 1 Unit of SZS15-1.25-Q Hot Water Boiler

Single Unit Capacity: 15 t/h (10.5 MW Dedicated Baseload Urban Heating Utility

Measured ROI: 16.5% Reduction in Fuel Gas Overhead yielding over USD 7,800+ monthly savings under a 14-month project payback amortization.

Track Record: 20+ Months of zero-fault continuous running through brutal -40℃Central Asian winter heating seasons.

2. Customer Background & Central Asian District Heating Pain Points

The client operates a critical localized district heating network and municipal public utility plant in the Karaganda region of Central Kazakhstan. Providing residential and commercial winter heating in this high-latitude geography demands an immense, highly reliable thermal energy network. The municipal grid serves thousands of local households and public facilities, requiring an unbroken supply of high-purity hot water and steam from October through April.

Operating a single-unit urban utility heating hub under the extreme continental climate zones of Kazakhstan introduces severe technical liabilities for municipal engineers:

Brutal -40℃ Anti-Freezing Risks: Midwinter temperatures in Central Kazakhstan regularly crash to below -40℃. Because the community relies on a single baseline boiler, any unexpected shutdown causes immediate ice expansion inside the municipal pipeline grids, cracking iron mains and triggering public safety emergencies.
Extreme Thermal Shocks from Large Return Sub-Cooling: On peak winter days, the temperature gap between outgoing hot water (95℃ – 115℃) and returning sub-cooled water (50℃ – 60℃) becomes massive. Injecting this cold return fluid directly into traditional boilers causes intense localized thermal shocks, resulting in welded seam failure or tube sheet cracking.
Violent Sudden Heating Load Demand Peaks: Sudden, blustery Arctic windstorms require rapid boiler output ramp-ups. The utility system must throttle heat upward rapidly within minutes to prevent urban home indoor temperatures from plummeting. Older single-unit shell boilers suffer massive thermal lag during these transitions.

The public utility group required a world-class, highly robust single-unit water tube solution. The asset must function as an absolute baseline anchor while thriving under extreme sub-zero weather conditions.

3. The Single-Unit Water Tube SZS15 hot water boiler Kazakhstan Baseload Solution

Taiguo Factory engineered an advanced 15 t/h (10.5MW) single-unit thermal power asset using our flagship SZS15 double-drum longitudinal D-type water tube boiler design.

Step 01 Arctic Return Inflow Sub-Cooled 50°C Return Balanced via Internal Mix Loop

➔

Step 02 SZS15 Membrane Walls Elastic Water Tube Array Reacts to Blizzard Loads

➔

Step 03 Urban Distribution Continuous 115°C Heating Constant Output

High-Velocity Water Tube Thermal Response & Elastic Design

Unlike traditional fire-tube boiler designs, our SZS15 architecture routes water through a complex grid of high-pressure boiler tubes welded into rigid, gas-tight membrane walls. Water-tube boilers contain significantly smaller fluid masses per module. This elastic construction expands and contracts safely under huge municipal temperature shifts, handling extreme 50℃ return water inflows without structural cracking or stress failure.

Full Membrane Wall Gas-Tight Combustion Chamber

The single boiler furnace is entirely enclosed by water-cooled membrane panels. This configuration eliminates heavy structural firebrick materials completely, removing the risk of masonry thermal cracking under relentless 24/7winter loads. The D-type longitudinal layout expands the radiant furnace space, optimizing natural gas flame development to ensure top-tier heat absorption.

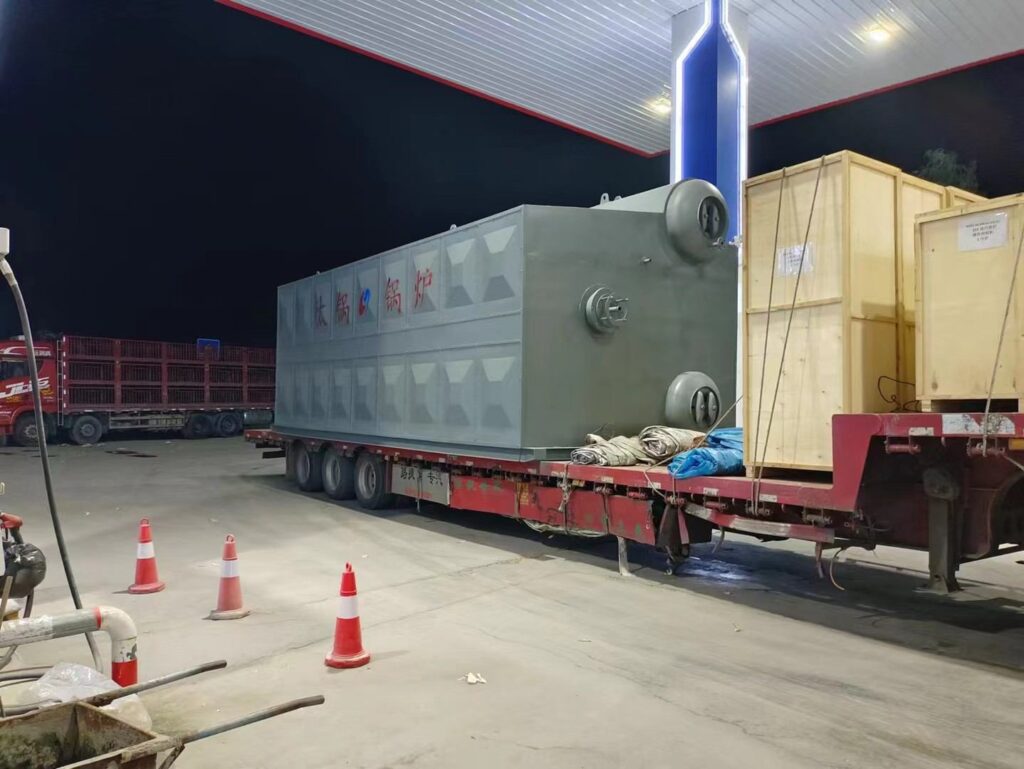

SZS15 hot water boiler Kazakhstan SZS15 water tube boiler operating for a district heating network in Kazakhstan

Operational showcase of Taiguo’s giant 15 t/h (10.5 MW) single-unit water tube boiler plant engineered for heavy municipal winter heating in Karaganda.

4. Strategic Alignment within Central Asian Infrastructure Modernization

Kazakhstan and broader Eurasian industrial economic zones are aggressively modernizing aging Soviet-era centralized utility plants to cut down urban emission intensities and secure energy efficiency. Our high-capacity SZS15 water tube boiler fits this regional grid modernization perfectly:

Seamless Local Natural Gas Grid Matching: The system maximizes combustion safety from localized pipeline infrastructures via automated fuel-air ratio loops.
Strict Eurasian Customs Union Compliance: Advanced furnace geometries combined with low-NOx burner assemblies ensure the entire plant layout is designed to comply with local emission requirements and national environmental codes.
High Unit Reliability for Continuous Service: The heavy-duty water-tube structure handles continuous high-flow urban winter operations safely, preventing sudden freeze downtime losses across the municipal area.

5. Technical Parameters of the SZS15 hot water boiler Kazakhstan Centralized Heating Plant

System Configuration Item	Technical Specification Value
Boiler Structural Architecture	SZS15-1.25-Q (Double-drum longitudinal water tube D-type layout)
Boiler Fleet Setup	1 Unit Dedicated Baseload Operation System
Single Unit Thermal Capacity	15 t/h (10.5MW) Saturated Steam / Hot Water Capability
Rated Operating Pressure	1.25 MPa (Perfect for high-head municipal pumping grids)
Media Temperature Specification	115℃ High-Temperature Water
Measured Plant Thermal Efficiency	> 96.2% (With Advanced Convective Fuel Condensers)

6. Deep Technical Breakdown Of SZS15 hot water boiler Kazakhstan: Auxiliary Customization for Polar Conditions

For a large-scale single utility heating station operating under extreme sub-zero continental conditions, accessory reliability and winterization engineering dictate the plant’s security. Taiguo Factory maintains strict industrial standards, selecting only premium world-class brands for the auxiliary supply network:

Full Thermal Enclosure & Cold-Weather Winterization

We added heavy-duty rock wool insulation blankets across the entire boiler body hull. The high-capacity forced draft combustion air fan features automated pre-heating coils to raise sub-zero outdoor air temperatures above 5℃ before injection. Furthermore, we enclosed all Siemens PLC control panels inside air-conditioned, dust-proof double-insulated terminal cabins to isolate delicate microprocessors from freezing ambient environments completely.

Premium Hardware Component Standardization Matrix:

Central Control Automation: Siemens S7-1500 PLC platform with native Profibus/Modbus integration to stream field parameters to the municipal command center.
Combustion Assembly: Imported fully modulating electronic low-NOx burner equipped with integrated flue gas recirculation (FGR) control actuators.
Gas Feed Safety Train: Germany Dungs explosion-proof dual-block gas safety valves featuring integrated automatic valve leakage testing systems.
Feedwater Pump Array: Dual high-pressure vertical Grundfos centrifugal arrays configured with variable frequency drives (VFD) for active parallel load redundancy.

7. On-Site Heavy Installation and System Commissioning Details For SZS15 hot water boiler Kazakhstan

Given the large modular dimensions of a 15-ton industrial water tube boiler, Taiguo Factory deployed a multi-stage field engineering campaign in the Karaganda region.

Phase 1: Heavy Rigging & Foundation Positioning Of SZS15 hot water boiler Kazakhstan

Our factory pre-fabricated the longitudinal upper and lower drums along with the membrane wall panel bundles as massive modules. On-site, heavy-duty mobile cranes positioned these blocks on the customer’s reinforced concrete pad. Engineers calibrated individual level variances to under $1\text{mm}$ to guarantee uniform internal water lines across the long drums.

Phase 2: Internal Re-Circulation Loop Integration Of SZS15 hot water boiler Kazakhstan

To handle massive 50℃ cold water returns safely, we engineered an active hot water mixing loop bypass system. A dedicated blending pump injects a portion of the outgoing 115℃ hot water back into the cold return manifold before it enters the boiler inlet. This step pre-heats the water to above 70℃, completely neutralizing low-temperature oxygen corrosion and thermal shocks. You can review our full field validation processes on our dedicated Boiler Commissioning Service page.

Phase 3: High-Pressure Hydraulic Field Validation Of SZS15 hot water boiler Kazakhstan

Our technical supervisors conducted on-site hydrostatic structural checks at code-mandated pressures (1.65 MPa), certifying absolute structural integrity across all field-welded pipeline segments before launching winter burner operations.

8. Operating Results & Complete ROI Analysis Of SZS15 hot water boiler Kazakhstan

This centralized SZS15 gas water tube boiler utility plant has provided uninterrupted urban heating support for the Kazakhstan municipal grid for over 20 months.

Zero Pipeline Freeze Emergencies Recorded

The highly responsive water-tube configuration paired with smart Siemens PLC automation handles rapid, blustery temperature drops effortlessly. Outgoing water temperatures remain perfectly steady within ± 0.5 ℃ of the set target, eliminating urban pipeline freezing risks.

Direct Financial Savings Summary:

Drastic Monthly Fuel Overhead Reduction: Reclaiming latent stack heat via advanced convective condensers cut overall natural gas consumption by 16.5% compared to the city’s previous legacy system.
Direct Monetary Cash Flow Savings: Saves the municipal utility group approximately USD 7,800 to USD 9,200 per month in natural gas expenditures.
Amortization Payback Window: The public utility group completely recovered their entire new boiler facility acquisition and winterization network investment within 14 months of official commissioning.

9. Summary of Engineering Scope Of SZS15 hot water boiler Kazakhstan

Taiguo Factory executed a comprehensive turnkey delivery cycle for this high-capacity project, ensuring top-tier manufacturing and technical integration:

Centralized Utility Heating Network Engineering: Designed the complete single-boiler plant layout schematics, distribution bypass blending manifold sizing, and isometric pipe network algorithms.
SZS15 Water Tube Vessel Precision Fabrication: Manufactured the heavy longitudinal drums and membrane wall panels under international codes with 100% radiographic testing of welded seams. You can review our destructive/non-destructive testing equipment on our dedicated Boiler Manufacturing & Quality Inspection Capabilities page.
Polar Sandstorm-Proof Burner Customization: Integrated an imported ultra-low NOx burner equipped with custom anti-freezing air intake filtration and pre-heating matrices.
Overseas On-Site Rigging & Assembly Supervision: Dispatched a senior engineering team to Kazakhstan to manage modular heavy alignment, structural assembly, and safety inspections.
Advanced Automatic Control Loop Integration: Programmed automated control logic for real-time fluid flow tracking, differential pressure monitoring, and over-temperature safety cutoffs.
Comprehensive 10-Day Operator Technical Certification: Certified local Kazakh plant staff in automated water treatment monitoring, electronic burner tuning, and safety blowdown routines under extreme sub-zero operations.

10. Related Solutions & Products

Related Project Case Studies (Cross-Linking Grid):

11. Project Frequently Asked Questions (FAQ)

Why is an SZS water tube boiler preferred over a WNS fire-tube boiler for a municipal district heating grid?

WNS fire-tube boilers hold a massive volume of water inside a single shell, creating large thermal inertia. When ice-cold municipal return water flows back into a fire-tube boiler, it creates immense thermal stress on the tube sheets, causing leaks. An SZS water tube boiler uses an elastic membrane wall layout that absorbs these dramatic cold-water temperature shocks safely.

How does the boiler fan pre-heating system prevent ice formation under -40°C outdoor weather?

The fan winterization system routes a small stream of hot water from the boiler discharge through an air-preheating coil positioned in front of the primary forced draft fan. This system raises the freezing outdoor air intake temperature above 5℃ before it hits the burner, preventing internal frost fouling and ensuring stable combustion fuel ratios.

How does the internal water blending loop protect a single boiler from oxygen corrosion?

When cold water (50℃) returns from the city, any remaining dissolved oxygen can attack the hot steel tubes rapidly. Our internal blending pump injects high-temperature water to lift the boiler inlet temperature above 70℃ instantly. This preheating suppresses localized condensation and prevents oxygen corrosion completely.

What water treatment standards protect the municipal water tubes from freezing-induced scaling?

To prevent internal scaling or corrosion inside the water tubes, the network water must pass through automatic softeners and continuous vacuum deaeration. Total water hardness must stay strictly at 0 mu mol/L, dissolved oxygen must drop below 0.02 mg/L, and water pH must be maintained between 8.5 and 9.5 to form a protective passivation layer inside the pipes.
