1. Project Profile & Performance Highlights Of LSS0.5 steam generator Philippines
- Location & Year: Biñan, Laguna Province (Near Manila), Philippines | Project Commissioned in December 2024
- Client Industry: Commercial Pharmaceutical Synthesis, Cleanroom Formulation & Laboratory Testing Plant
- System Equipment: 2 Units of LSS0.5-0.7-Q Gas-Fired Vertical Once-Through Steam Generators
- Total Fleets Capacity: 1.0 t/hCentralized High-Precision Modular Steam Grid
- Core Capability: Delivering 99.9% Clean Pure Steam with a surgical temperature Accuracy within ± 0.5℃.
- Measured ROI: 22% Reduction in Batch Energy Costs with an estimated 13-month full equipment payback window.
- Track Record: 18+ Months of continuous aseptic operation without a single sanitary validation failure.
2. Customer Background & Pharmaceutical Lab High-Purity Thermal Pain Points
The client operates a state-of-the-art pharmaceutical synthesis laboratory, liquid medicine formulation plant, and vaccine cleanroom cluster in Laguna, Philippines. Medicinal manufacturing processes demand an exceptionally sterile, high-precision thermal utility network. Pure saturated steam directly powers jackets of chemical batch reactors, centralized sterile-in-place (SIP) piping flushes, and heavy-duty laboratory autoclaves.
Operating a high-end medical laboratory utilizing traditional large-capacity shell boilers introduces severe cross-contamination risks and fiscal defects:
- Ruinous Chemical Cross-Contamination Liabilities: Standard boiler steam contains chemical volatile boiler water additives (amines, softeners) to prevent carbon-steel corrosion. If this industrial steam touches formulation components or laboratory equipment, it triggers immediate product contamination and severe regulatory closures.
- Sluggish Temperature Throttling Lag: Pharmaceutical reactor cooking loops require fast temperature changes to maintain perfect chemical reaction states. Traditional heavy shell boilers have massive thermal inertia, drifting past target thresholds and ruining expensive chemical batches.
- High Off-Peak Standby Fuel Waste: Laboratory operations alternate between rapid testing peaks and prolonged formulation holding stages. Running a large, single legacy boiler during low-load testing states creates massive standby heat dissipation, inflating monthly fuel gas expenditures.
The medical enterprise required a highly scalable, flexible multi-unit 1 t/h steam plant capable of delivering ultra-pure, chemical-free saturated steam with rapid temperature tracing capabilities.
3. The Parallel Sanitary 2×Once-Through LSS0.5 steam generator Philippines Solution
Taiguo Factory did not offer a single massive industrial carbon-steel boiler for this sanitary lab cleanroom. Our chemical engineering team configured 2 separate units of LSS0.5 gas-fired vertical once-through steam generators constructed with high-grade stainless steel fluid contacts.

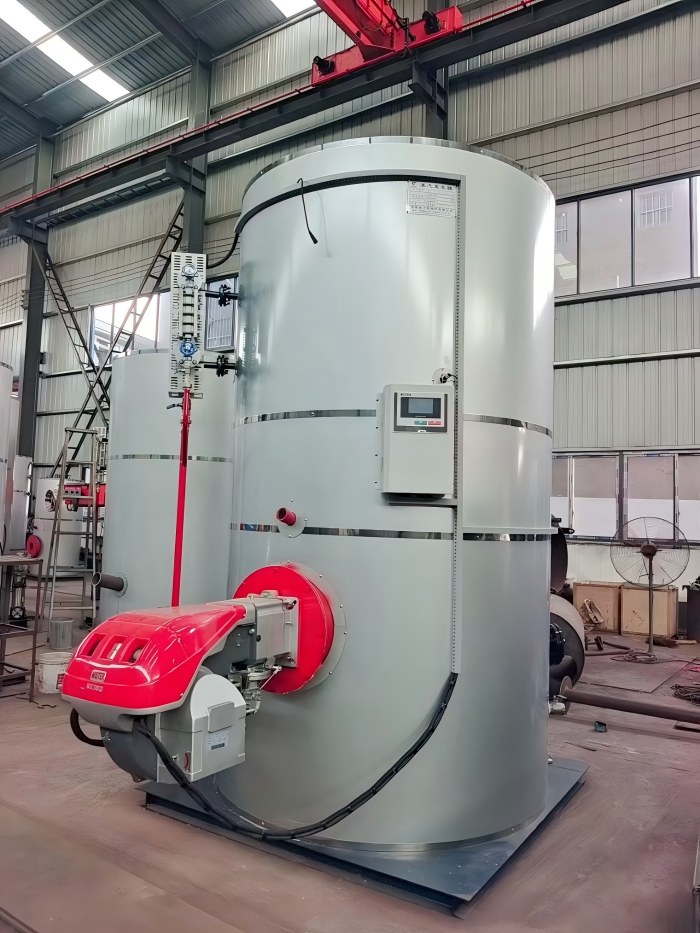

High-Velocity Stainless Steel Tube Array Of LSS0.5 steam generator Philippines
Each LSS0.5 steam generator is constructed with premium SS316L stainless steel internal heating tubes. This food-and-medical grade alloy eliminates rust scaling or chemical fluid leaching completely. Combined with a multi-stage pure water separator grid, the plant generates true pyrogen-free clean steam, ensuring full compliance with WHO and local FDA pharmaceutical validation statutes.
Parallel Intelligent Smart Throttling Loop Of LSS0.5 steam generator Philippines
Our technical group wired the two independent 0.5-ton units into a synchronized master-slave parallel PLC coordination block.
- Peak Sterilization Loads (1.0 t/h): Both units fire in active modulation to deliver deep thermal volumes during full-facility autoclave flushes.
- Low-Load Reactor Tracing (Below 0.5 t/h): The automated PLC deactivates Boiler 2 completely, running only Boiler 1 at peak thermal efficiency. This strategy eliminates the standby fuel losses common in oversized boiler layouts.
- Ultra-Precise Temperature Tracking: The low thermal mass of the once-through tubes tracks reactor target values instantly, pinning header pressure variances within a surgical ± 0.01 MPa range.
4. Strategic Alignment within the Philippine Medical Manufacturing Upgrade
The Philippine Department of Health and local industrial bodies are upgrading domestic pharmaceutical self-sufficiency rapidly, providing investment incentives for localized drug manufacturing centers. Our high-efficiency parallel LSS0.5 clean steam solution serves as a premier utility for this laboratory modernization:
- Compact Footprint for Cleanroom Zones: The vertical pre-assembled skid layout eliminates extensive construction outlays, fitting through lab corridors easily to enable point-of-use installation.
- Decoupled Operation Redundancy: Maintaining a 2-unit parallel network secures uninterrupted operation. Plant operators can run routine inspections on Boiler 1 while Boiler 2 keeps critical vaccine cleanrooms active.
- Strict Environmental Compliance Audits: Advanced low-NOx vertical burners ensure the entire gas-fired generator array is designed to comply with local emission requirements across national special economic zones.
5. Technical Parameters of the Parallel LSS0.5 steam generator Philippines Pharma Grid
| System Configuration Item | Technical Specification Value |
| Boiler Structural Model | 2 Units of LSS0.5-0.7-Q Working in Automated Parallel Sequence |
| Fleet Total Steam Output | 0.5 t/hPer Unit / 1.0 t/h Maximum Combined System Flow |
| Design Structural Pressure | 0.7MPa (Perfect for high-pressure laboratory autoclaves) |
| Saturated Vapor Cleanliness | 99.9% Clean Steam (Pyrogen-free, chemical additive-free) |
| Internal Metal Material | Full SS316L Stainless Steel Heat Exchanger Contact Tubes |
| Measured Plant Efficiency | > 95.8% (With Built-In Condensing Economizer Modules) |
6. On-Site System Installation and Commissioning For LSS0.5 steam generator Philippines
Our specialized overseas technical department managed the rapid setup and sterile water linkage synchronization at the Biñan laboratory facility.
- Aseptic Skid Level Integration: Because the parallel network features a pre-mounted packaged skid layout, our technical crew finalized on-site positionings, clean steam line couplings, and gas links within 72 hours.
- Ultra-Pure Deionized Feed Synchronization: Pharmaceutical water-tube structures cannot tolerate minerals or chlorine. We integrated a dual-stage reverse osmosis (RO) system combined with an active continuous electrodeionization (EDI) polishing array. You can review our full field validation processes on our dedicated [Boiler Commissioning Service](Internal Link to Engineering Hub Page) page.
- PID Thermal Tuning & Control Calibration: We fine-tuned the automated PID algorithms within the Siemens control loops, establishing rock-solid ± 0.5℃ temperature stability across separate chemical processing blocks.
7. Operating Results & Complete ROI Analysis Of LSS0.5 steam generator Philippines
This parallel LSS0.5 gas-fired once-through steam generator network has delivered exceptional high-purity thermal service for over 18 months.
- 100% Sterile Product Batch passing Rates: High-dryness chemical-free clean steam eliminated contamination risks entirely, passing every strict corporate audit and FDA validation test.
- 22% Reduction in Monthly Fuel Expenditures: Shifting from an oversized legacy boiler to our automated parallel sequencing loop eliminated early morning preheating waste and low-load fuel idling.
- Direct Financial Cash Flow Savings: The combined system energy efficiencies save the pharmaceutical complex approximately USD 3,200 to USD 3,800 per month in utility gas bills.
- 13-Month Full Capital Payback Window: Eliminating separate boiler room construction costs and maximizing fuel savings allowed the client to fully recover their utility modernization investment within 13 months.
8. Summary of Engineering Scope Of LSS0.5 steam generator Philippines
Taiguo Factory provided comprehensive turnkey delivery and validation support for this Philippine laboratory cleanroom asset, ensuring clean performance:
- Sanitary Clean Steam Loop Piping Design: Engineered optimized stainless steel manifold lines to safely transport clean steam without creating stagnant condensate dead legs.
- SS316L High-Grade Pressure Vessel Manufacturing: Fabricated the vertical small-diameter clean heating tubes under rigorous radiographic inspections with 100% radiographic testing of welded seams. You can inspect our quality controls on our dedicated Boiler Manufacturing & Quality Inspection Capabilities page.
- Integrated Condensing Economizer Matching: Integrated a compact stainless steel economizer module directly into the vertical exhaust frame to maximize natural gas heat extraction.
- On-Site Fast Plug-and-Play Assembly Supervision: Managed the alignment rigging, high-purity valve train couplings, and initial gas loop leak audits.
- Centralized Parallel PLC Automation Sequence Programming: Calibrated custom logic maps for automated lead-lag staging, rapid over-pressure shutdowns, and real-time electronic water level tracing.
- Intensive Operator Validation Training Workshop: Certified local laboratory technicians in automated water chemistry testing, aseptic blowdown scheduling, and touchscreen control adjustments.
9. Related Solutions & Products
- LSS Vertical Once-Through Steam Generator (0.1t/h- 2t/h)
- Stainless Steel Clean Steam Generator Customization Options
- Industrial Boiler Manufacturing Capabilities
- Customized Thermal Solutions for Pharmaceutical & Bio-Chemical Sectors
Related Project Case Studies (Cross-Linking Grid):
- Philippines Food Processing Complex – SZS15 Water Tube Steam Boiler Performance
- Uzbekistan Textile Factory – 3×SZS10 Intelligent Parallel Water Tube Boiler Grid
- Kazakhstan Commercial Laundry – LSS1 Once-Through Steam Boiler Operations
10. Project Frequently Asked Questions (FAQ)
What makes “clean steam” from an SS316L boiler different from standard industrial steam?
Standard industrial steam is produced inside carbon-steel boilers and contains chemical water-treatment additives to prevent rust. Clean steam is generated using pure deionized water inside a full stainless steel (SS316L) boiler shell. It is completely free of chemical additives, volatile compounds, and mineral residues, making it perfectly safe for direct injection into medicine batches or sterile equipment.
Why is a parallel 2×LSS0.5 system better than a single 1 t/h steam boiler for a pharmaceutical lab?
Pharmaceutical labs alternate between intense testing peaks and prolonged formulation holding stages. A single 1-ton boiler faces severe low-load fuel waste during holding windows. A parallel system allows outstanding operational scalability. It enables the facility to deactivate one module completely during low-demand periods, running only a single 0.5-ton unit at peak efficiency.
How does the once-through water tube structure achieve ±0.5°C temperature control?
Traditional shell boilers hold tons of water, resulting in massive thermal inertia that lags behind burner control adjustments. An LSS once-through generator routes water through small-diameter tube tracks, holding a minimal liquid volume. The system transfers heat into the stream instantly, allowing the automated burner to adjust temperature profiles precisely within seconds.
What feed-water standards are mandatory to protect this stainless steel pharma generator?
To protect the high-purity SS316L heat exchanger surfaces, incoming water must pass through reverse osmosis (RO) and electrodeionization (EDI) networks. Total water hardness must stay strictly at 0 mu mol/L, electrical conductivity must drop below 1.0mu S/cm, and total organic carbon (TOC) must remain under 0.5mg/L to prevent micro-fouling inside the system.
