Project Overview Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia
- Project Location: Southeast Asia (Major Biomedical & Pharma Zone)
- Target Industry: Pharmaceutical Manufacturing & Cleanroom Sterilization
- Boiler Model: Taiguo WDR2-1.25-D High-Purity Stainless Steel Electric Boiler
- Primary Fuel Type: Electric Power Supply (380V/50Hz Three-Phase)
- Commissioning Year: 2025
- Engineering Scope: Clean Steam System Engineering, Sanitary Boiler Manufacturing, Sea Freight Logistics, On-Site Commissioning & Validation Support
Technical Parameters & Specifications Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia
Pharmaceutical formulation and cleanroom operations require absolute purity, zero combustion emissions, and precise pressure regulation for vial sterilization, autoclave lines, and pure steam generators. The table below outlines the high-performance technical configuration engineered by Taiguo to satisfy strict sanitary standards for this Southeast Asian pharmaceutical production facility:
| Parameter Item | Specification / Engineering Value | Technical Notes & Compliance |
| Boiler Type | WDR Series Horizontal Electric Steam Boiler | Zero-emission, zero-combustion cleanroom-compatible utility |
| Rated Steam Capacity | 2 Ton per Hour (2 t/h /1440 kW power rating) | Tailored for precise batch autoclaving and cleanroom injection |
| Design / Working Pressure | 1.25MPa / 0.7 MPa (Low-Pressure Sanitary Flow) | Maintains steady low-pressure drops across specialized piping |
| Saturated Steam Temp. | 151°C–194°C Adjustable Range | Ideal temperature for strict pathogen destruction and vial drying |
| Pressure Vessel Material | SUS316L High-Grade Stainless Steel (Core Boundaries) | Eliminates heavy metal contamination and rust scaling entirely |

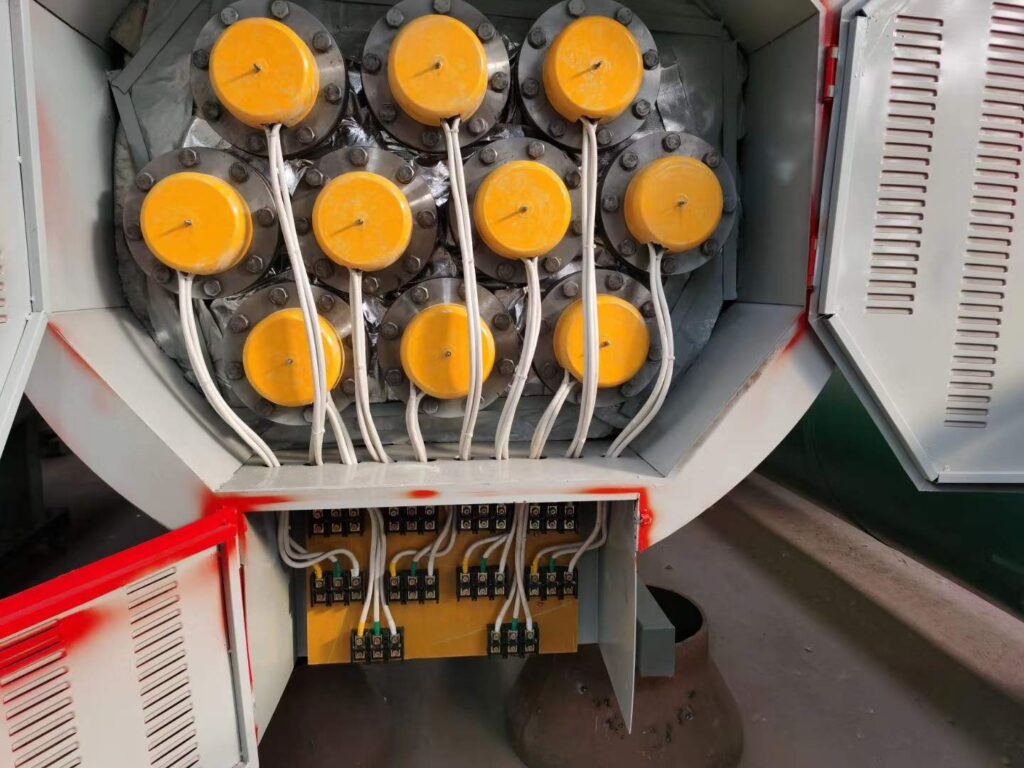

| Heating Elements | Incoloy 800 Stainless Steel Electric Heating Tubes | Low surface heat load design prevents mineral scale bake-on |
| Thermal Efficiency | 99.1% (Direct Electrical Conversion) | Direct immersion elements deliver near-zero jacket heat loss |
| Control Integration | Redundant PLC with Stepped Power Modulation | Automatically cycles independent heating arrays to save energy |
Customer Challenges: High Contamination Risks and Strict Validation Barriers
A global pharmaceutical manufacturing corporation in Southeast Asia expanded its advanced liquid formulation and vaccine packaging facilities. The plant operates multiple cleanroom-isolated autoclaves, glass ampoule washing arrays, and pure steam distillation columns simultaneously. To comply with international Good Manufacturing Practices (GMP), these processes demand a constant, reliable supply of high-purity steam completely free of volatile organic compounds, boiler chemicals, or rust particulates.
However, the client’s legacy central utility utility faced three critical operational bottlenecks:
- Severe Contamination from Conventional Carbon Steel: Their old centralized fuel-fired boiler used standard carbon steel tubes. Over time, minor scale buildup and iron sloughing contaminated the steam line. This triggered frequent batch rejections during cleanroom sterilization checks, running up massive financial liabilities.
- Inability to Pass Strict Regulatory Validation: Local pharmaceutical regulatory agencies require strict “Clean Steam” validation (verifying zero chemical carryover from water treatment agents). Conventional fuel boilers require chemical oxygen scavengers that naturally carry over into the steam headers, making validation impossible.
- Prohibitive Emissions Rules in Urban Bio-Zones: The production facility is located inside an eco-friendly urban biomedical park that enforces strict limits on combustion exhaust stacks, rendering traditional gas or oil boilers non-compliant.
The manufacturing plant required a compact, zero-emission electric steam system built completely from sanitary stainless steel. They selected Taiguo to deliver a complete turnkey solution, covering everything from custom SUS316L vessel fabrication to comprehensive on-site commissioning and validation support.
Detailed Engineering Solution: Customized Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia
To satisfy these strict medical-grade criteria, Taiguo engineered an advanced WDR2-1.25-D stainless steel electric steam boiler. The system was completely enclosed within an easy-to-clean sanitary casing while keeping floor space demands to a minimum.
1. Zero-Emission Heating and Streamlined Processing Sequence Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia
The utility plant converts electrical energy into high-purity process steam through an automated loop:
- Sanitary Water Dosing: Pure reverse-osmosis (RO) deionized water enters the degassed boiler drum, eliminating the need for volatile oxygen-scavenging chemicals.
- Direct Immersion Heating: Step-controlled electric elements transfer thermal energy directly into the water mass, initiating rapid, zero-combustion steam generation.
- Stainless Steel Steam Separation: Saturated steam rises through an internal baffle matrix built from high-grade SUS316L stainless steel to trap micro-droplets.
- Modulated Header Distribution: Pure, dry steam enters the cleanroom headers at a precise pressure, maintaining strict temperature profiles across the autoclaves.
- Condensate Management: The system routes clean return lines through a closed condensate recovery tank to prevent room moisture spikes.
2. Full SUS316L Stainless Steel Construction Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia
Every internal surface in contact with the water or steam—including the main shell, convective baffles, heating element flanges, and internal piping—is fabricated from high-grade SUS316L stainless steel. This premium material choice eliminates iron-oxide particulate generation, preventing cleanroom contamination and ensuring full compliance with international sanitary equipment codes.
3. Progressive Stepped Power Modulation Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia
To handle the variable loads of batch sterilization without causing electrical grid surges, the system utilizes solid-state relays (SSRs) managed by a central Siemens PLC. Instead of running at full power continuously, the boiler switches individual heating element groups on or off in precise, stepped increments. This smart modulation balances energy use perfectly against real-time steam draws.
Installation & Validation Support Process Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia
Deploying a sanitary electric system inside a pharmaceutical environment requires strict cleanroom installation protocols and comprehensive documentation support. Taiguo managed the complete engineering deployment through five structured phases:
- Phase 1: Specialized Cleanroom Moving & Rigging Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia – Our logistics division handled the sea freight delivery to the Southeast Asian industrial port. On-site, field technicians unboxed the unit in a controlled staging zone, wiped down all surfaces, and rolled the compact boiler onto its cleanroom floor foundation.
- Phase 2: Sanitary Pipeline Integration Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia – Technicians utilized automated orbital TIG welding to connect the SUS316L steam lines, ensuring smooth, crevice-free internal weld beads that prevent bacterial growth.
- Phase 3: Hydrostatic Boundary Safety Testing Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia – Our field team filled the system with deionized water and performed a hydrostatic test at 1.05 MPa (1.5 times the maximum design pressure). We held the pressure stable to verify absolute seal safety across all element flanges.
- Phase 4: Non-Destructive X-Ray Quality Inspection Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia – Certified quality control inspectors conducted 100% non-destructive X-ray testing and dye-penetrant checks on all sanitary pipe joints, confirming absolute structural integrity before power-up.
- Phase 5: IQ/OQ/PQ Validation & Handover Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia – Our engineers provided complete Installation Qualification (IQ) and Operational Qualification (OQ) validation documentation. We calibrated the automated PLC power stages, verified the low-water safety trips, executed steam purity tests, and successfully handed the running clean steam plant over to the client’s quality assurance team.
Project Results Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia: Operational Excellence Matrix
The stainless steel electric boiler system achieved immediate GMP compliance and exceptional operational control for the Southeast Asian facility. The data matrix below highlights the concrete upgrades over their old equipment:
| Performance Indicator | Old Fuel-Fired Utility | New Taiguo Electric System | Operational & Financial Impact |
| Steam Purity Level | Industrial Grade (Particulate Risks) | Medical-Grade Clean Steam | 100% Batch Success: Eliminates iron rust contamination and carryover product rejections. |
| Exhaust Stack Emissions | Smoke & Gas Combustion Plume | Absolute Zero (No Stack Needed) | Eco-Park Compliance: Satisfies strict urban environmental codes without air filtering costs. |
| Pressure Control Range | Volatile (±0.15 MPa) | Ultra-Precise ±0.01 MPa | Flawless Sterilization: Delivers exact, reliable temperatures inside cleanroom autoclaves. |
| Boiler Chemical Demands | High (Requires Heavy Treatment) | Zero Additives Necessary | Simplified Validation: Using pure RO water removes chemical carryover verification hurdles. |
| Thermal Setup Footprint | Large Dedicated Utility Room | Compact Skid-Mounted Casing | Saved Floor Space: Space-saving design mounts close to cleanrooms to cut down pipe thermal loss. |
Project Engineering Gallery Of Electric Steam Boiler for Pharmaceutical Factory in Southeast Asia
Discover the real-world deployment footprints of Taiguo Boiler across Southeast Asian pharmaceutical complexes. Every stage highlights our strict quality standards.
- Manufacturing Excellence – Advanced X-ray non-destructive welding inspection and surface passivation techniques executed on the SUS316L boiler shell. Learn more about our specialized Welding Heat Treatment Processes via our engineering portal.
- Sanitary Maritime Logistics – Heavy-duty clean-wrap packaging, desiccated moisture-proof shielding, and secure container bracing executed for international shipping to the Southeast Asian port.

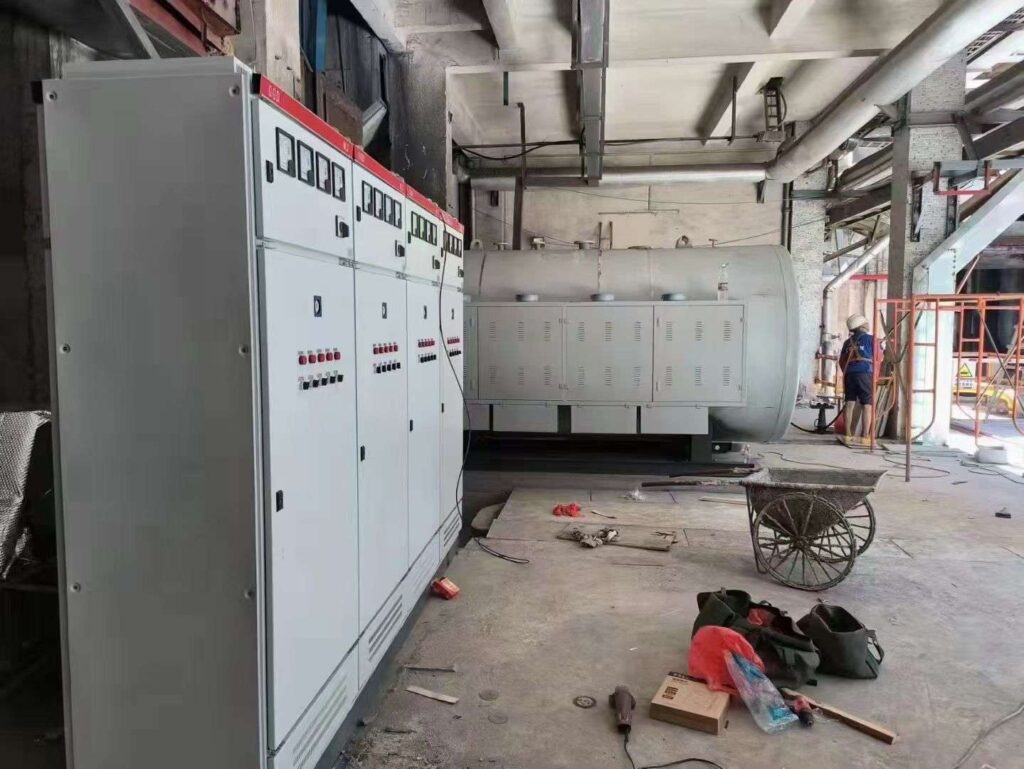

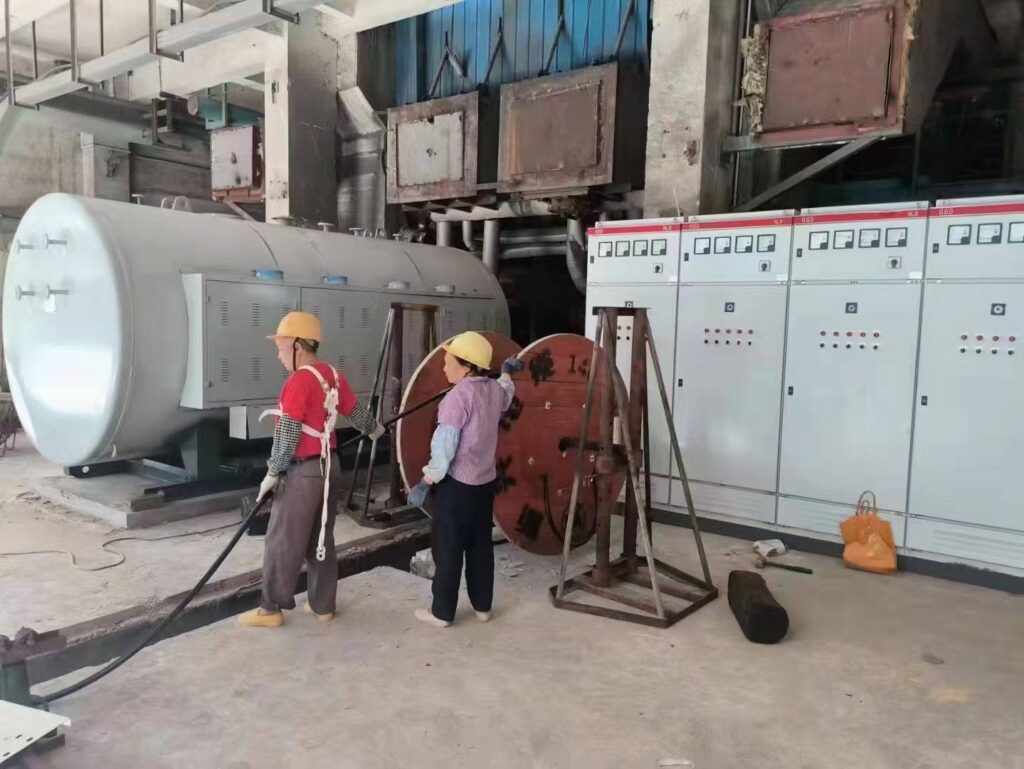

- Field Structural Erection – Taiguo field technicians managing precision cleanroom rigging and orbital TIG welding assembly for the sanitary steam lines. Read about our international Heavy Rigging & Structural Installation Services on our dedicated portal page.
- Pressure Boundary Validation – Conducting high-purity water hydrostatic pressure testing on the stainless steel shell to verify complete structural sealing before commissioning. Review our global Boiler Hydrostatic Testing Standards to examine our full field quality procedures.

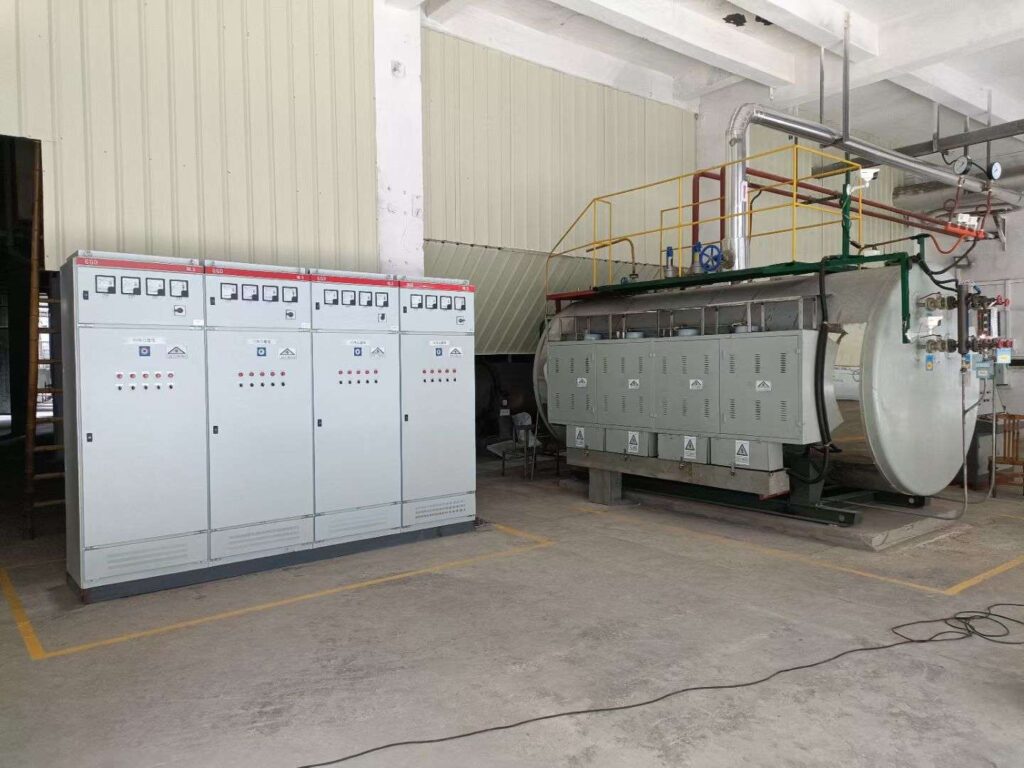

- Pharmaceutical Factory Handover – The final automated electric steam boiler operating cleanly, delivering continuous high-purity steam to the autoclave lines. Learn more about our Industrial Control System Calibration and Commissioning protocols directly through our service portal.
Deep-Dive Technical Resources
Choosing the right industrial thermal system requires rigorous research. Based on this successful Southeast Asian pharmaceutical project, the following resources will assist your engineering team in making an informed decision:
- Technical Specifications: Review the full capacity limits, electrical stage diagrams, and dimension charts on our WDR Series Electric Steam Boilers product page.
- Industry Application: Explore how we customize pure steam separation and chemical-free layouts within our Pharmaceutical & Biomedical Industry Boiler Solutions center.
- On-Site Execution: Learn more about our overseas turnkey capabilities, IQ/OQ validation protocols, and welding standards via our Industrial Boiler Installation Services portal.
- Regional Footprint: Discover further case studies, localized maintenance support, and client testimonials at our Southeast Asia Industrial Boiler Market hub.
FAQ
What makes an electric boiler suitable for pharmaceutical clean steam applications?
Pharmaceutical operations require steam that is completely free of chemicals, rust, and scale. Taiguo electric boilers utilize high-grade SUS316L stainless steel for all pressure boundaries and heating elements. Combined with direct electrical immersion heating and pure RO water feed, the system generates high-purity steam with zero risk of chemical carryover or oil contamination, fully satisfying strict GMP guidelines.
How does the stepped power modulation system help save electricity?
Instead of running at full electrical load constantly, Taiguo electric boilers group heating elements into independent arrays managed by a Siemens PLC panel. The system tracks minor pressure variations and turns individual heating groups on or off in steps. This stepped response matches power consumption perfectly with real-time steam draws, reducing peak demand utility charges.
What validation documentation does Taiguo provide for international compliance?
We support our international buyers by providing standard Installation Qualification (IQ) and Operational Qualification (OQ) documentation templates. This comprehensive data includes material traceability logs for the SUS316L steel, X-ray weld inspection certificates, hydrostatic test reports, and electrical layout sheets to streamline your local quality assurance validation process.
Is an electrical steam boiler cost-effective to operate compared to gas?
While local electricity rates vary, electric boilers cut down operational costs in other ways for specialized facilities. They require zero exhaust chimney setups, eliminate chemical water treatment expenses, require very little maintenance, and achieve a 99%+ thermal conversion efficiency. For cleanroom layouts that require moderate, precise batches of clean steam, they offer an incredibly efficient and compliant solution.
