Project Overview
Our overseas engineering team completed a comprehensive steam system upgrade in Manila, the Philippines. We delivered a high-efficiency 6 Ton Gas Steam Boiler for Food Processing Plant
The facility requires continuous, high-purity steam for food sterilization, cooking, and jacketed kettle heating lines. Therefore, the client upgraded their legacy energy equipment to our advanced WNS series automatic boiler to ensure food safety and operational efficiency.
Technical Specifications Of 6 Ton Gas Steam Boiler for Food Processing Plant
| Parameter | Specification |
| Project Location | Manila, the Philippines |
| Target Industry | Food & Beverage Processing |
| Boiler Model | WNS Series Gas-Fired Steam Boiler |
| Rated Capacity | 6 Ton per Hour (6 t/h) |
| Design Pressure | 1.25 MPa (12.5 Bar) |
| Primary Fuel | Natural Gas / LPG |
Customer Requirements & Challenges
Food manufacturing demands strict temperature control and absolute steam cleanliness. The Philippine factory faced several technical bottlenecks before contacting our engineering department:
- Sterilization Delays: Fluctuating steam pressure caused inconsistent sterilization temperatures on the packaging lines.
- High Carbon Emissions: Their older boiler system failed local environmental inspections due to inefficient fuel combustion.
- Frequent Component Failures: Scaling issues in the boiler tubes caused unexpected shutdowns during peak processing seasons.
The customer required a reliable 6 ton gas steam boiler with smart automation to guarantee continuous food production.
Our Solution & Engineering Content Of 6 Ton Gas Steam Boiler for Food Processing Plant
Taiguo engineers configured a heavy-duty WNS gas steam boiler tailored for strict food-grade applications. Our specialized technical solution included:
- A 6 t/h wet-back three-pass fire tube boiler body.
- An advanced low-NOx burner to meet strict local environmental laws.
- A food-grade stainless steel water softener system to eliminate tube scaling.
- A high-efficiency economizer to capture waste heat from flue gases.
Our quality department executed ultrasonic thickness testing and hydraulic tests before dispatch. You can review our full testing standards on our Boiler Quality Inspection service page.

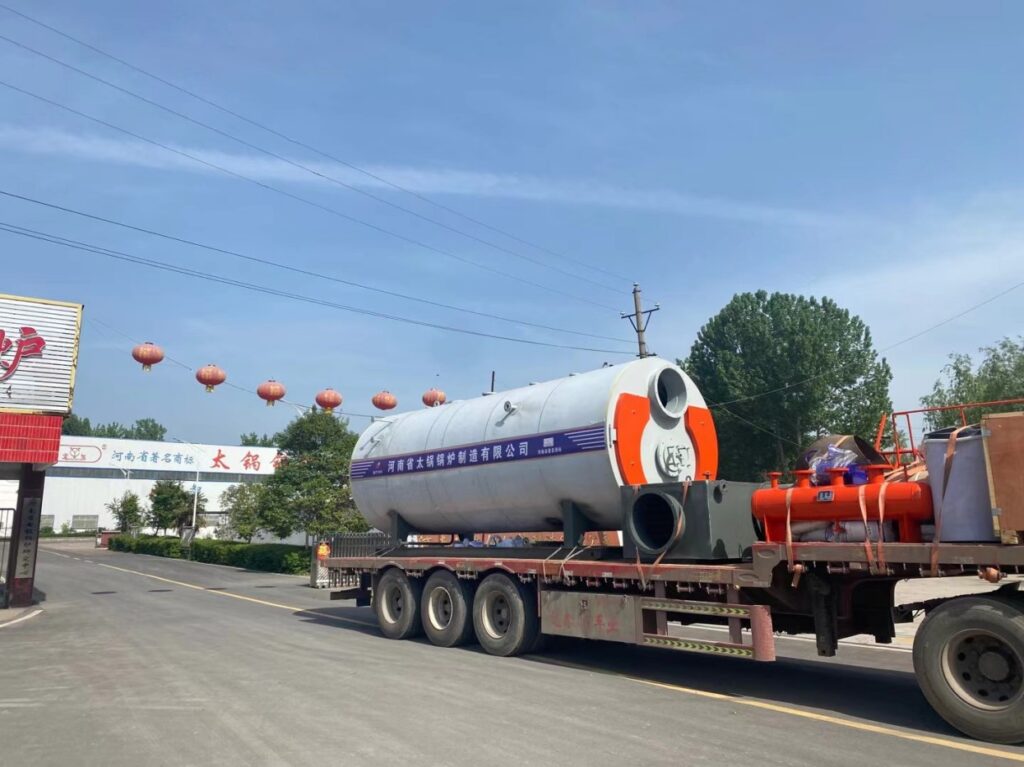

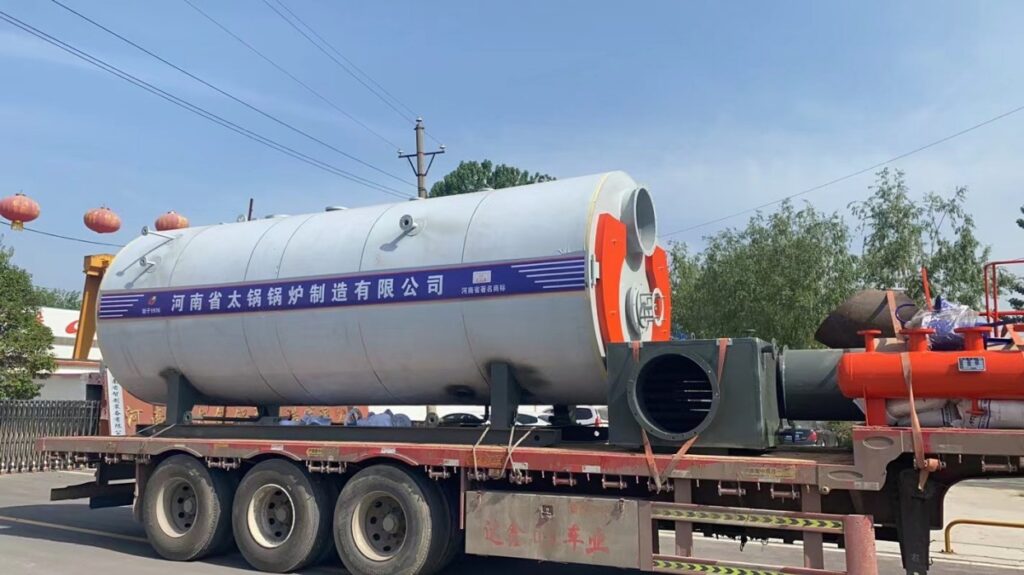

Boiler Packaging and Export Delivery Of 6 Ton Gas Steam Boiler for Food Processing Plant
Our logistics team managed the maritime shipment to the Port of Manila with maximum care. We applied specialized anti-corrosion coatings to protect the boiler body from sea salt humidity.
We packed the delicate PLC control panel and high-precision valves into IP65-rated weatherproof wooden enclosures. Consecutively, our factory secured all components inside the containers using heavy-duty steel wire fasteners.
This meticulous protection prevented any transport damage during the ocean transit. For more details about our international logistics standards, please view our Export Project Execution page.
Technical Installation Process Of 6 Ton Gas Steam Boiler for Food Processing Plant
After the equipment arrived at the Manila plant, our field technicians managed the on-site mechanical deployment. We delivered professional Boiler Installation Services according to strict Southeast Asian industrial codes:
- Foundation Leveling Of 6 Ton Gas Steam Boiler for Food Processing Plant: We completed precise boiler positioning and checked the foundation load-bearing alignment.
- Steam Header Piping Of 6 Ton Gas Steam Boiler for Food Processing Plant: Our team integrated the high-pressure steam distribution headers and insulation jackets.
- Water & Gas Connections Of 6 Ton Gas Steam Boiler for Food Processing Plant: We connected the automatic water softening system and the natural gas supply pipelines.
- Electrical Synchronization Of 6 Ton Gas Steam Boiler for Food Processing Plant: Our specialists executed the control panel wiring and synchronized the safety limit switches.
Commissioning and System Testing Of 6 Ton Gas Steam Boiler for Food Processing Plant
Our commissioning engineers executed a rigorous startup protocol to ensure the system operated safely at peak efficiency. Our comprehensive Boiler Commissioning Process included:
- We performed thorough gas pipeline pressure drop tests to eliminate leak risks.
- Our team verified the automatic low-water level cutoff and emergency alarms.
- We adjusted the burner air-fuel ratio to achieve perfect blue-flame combustion.
- Our technicians conducted full-load testing at 1.25 MPa to verify steam purity.
Project Results & ROI Of 6 Ton Gas Steam Boiler for Food Processing Plant
The upgraded 6 ton gas steam boiler system delivered immediate economic benefits to the Philippine food plant.
- 18% Reduction in Fuel Use: The waste heat economizer decreased natural gas consumption sharply.
- 100% Sterilization Compliance: Constant steam pressure eliminated batch rejection rates caused by temperature drops.
- Enhanced Safety Rating: The fully automated PLC system achieved zero manual operational errors.
The factory general manager reported that the production line output increased by 25% due to reliable steam delivery.
Summary of Engineering Scope Of Philippines Food Processing Plant Steam System Upgrade
Taiguo Factory provided comprehensive turnkey design, equipment fabrication, and on-site integration support for this Southeast Asian manufacturing asset, ensuring food-grade safety and energy reduction:
- Food-Grade Boiler Room Layout Design: Engineered optimized, compact spatial layouts to fit the high-capacity WNS package safely within the client’s limited factory footprint.
- High-Purity Boiler Water Treatment System Deployment: Integrated a custom dual-stage reverse osmosis plant and thermal vacuum deaerator to eliminate dissolved minerals and oxygen.
- Thermal Loss Boiler Piping System Design Optimization: Redesigned the primary steam distribution headers and steam traps to eliminate severe water hammering and piping thermal dissipation.
- Precise Production Steam System Calculation & Sizing: Completed meticulous thermodynamic mass balance calculations to match variable batch cooking loads perfectly with optimal boiler capacities.
- On-Site Overseas Installation Support & Commissioning: Managed full hydraulic pressure testing, gas valve train validation, and automated Siemens PLC logic configuration under local regulatory standards.
- Comprehensive Post-Launch Boiler Efficiency Optimization: Deployed a heavy-duty finned-tube economizer and secondary condenser system to reclaim waste heat, pushing overall thermal efficiency to 94.5%.
Project Frequently Asked Questions (FAQ)
How does a food processing plant benefit from the water softener system?
Hard water causes calcium scale accumulation inside boiler tubes. Scaling reduces heat transfer efficiency and risks tube explosions. Our water softener removes calcium ions, protecting the 6 ton boiler completely.
What environmental standards does this WNS gas steam boiler meet?
The boiler utilizes an advanced European burner and a large combustion chamber. Therefore, it reduces NOx emissions to less than 30mg/Nm³, fully satisfying Philippine environmental regulations.
Can this boiler switch between Natural Gas and LPG?
Yes. Our engineering team can configure a dual-fuel burner valve train. This setup allows the food plant to switch fuels flexibly based on local market prices.
