Project Overview Of Biomass Steam Boiler for Rice Mill in Southeast Asia
- Project Location: Southeast Asia (Major Agricultural & Rice Exporting Province)
- Target Industry: Rice Milling & Agricultural Food Processing

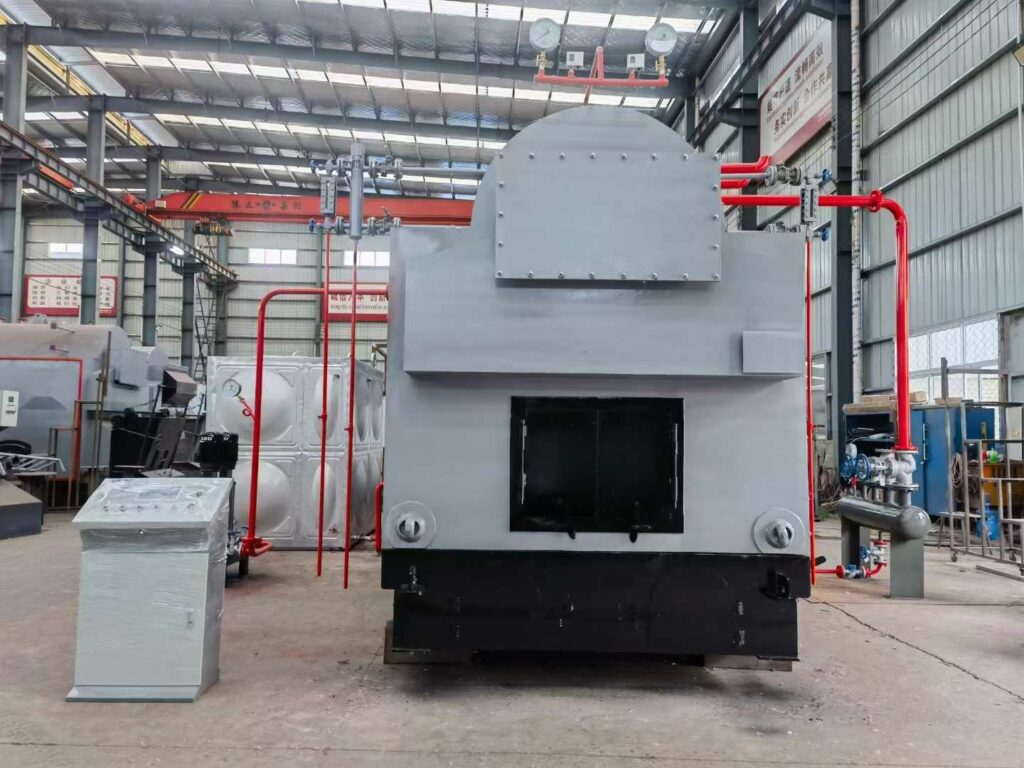

- Boiler Model: Taiguo DZH4-1.25-AII Moving Grate Biomass Boiler
- Primary Fuel Type: Rice Husks / Paddy Chaff (Agricultural Waste)
- Commissioning Year: 2025
- Engineering Scope: Custom Fuel Feeding System Design, Biomass Combustor Manufacturing, Logistics, On-Site Structural Installation
Technical Parameters & Specifications Of Biomass Steam Boiler for Rice Mill in Southeast Asia
Agricultural processing plants require continuous thermal energy to power parboiling and grain drying towers. The table below outlines the precise technical configuration engineered by Taiguo to handle low-density biomass fuels efficiently for this Southeast Asian food manufacturing facility:
| Parameter Item | Specification / Engineering Value | Technical Notes & Compliance |
| Boiler Type | DZH Series Wing-Flue Packaged Biomass Boiler | Single-drum horizontal layout optimized for solid fuels |
| Rated Steam Capacity | 4 Tons per Hour (4 t/h / 2800 kW) | Easily matches the heavy loads of massive parboiling tanks |
| Design Pressure | 1.25 MPa (12.5 Bar / 181 PSI) | Sustains robust, dry thermal headers for long-distance piping |
| Saturated Steam Temp. | 194°C | Ideal temperature for rapid, mold-free grain drying loops |
| Grate Configuration | Custom Moving Grate / Hand-Operated Grate Combo | Prevents ash sintering, allows seamless fuel bed shifting |
| Feeding Mechanism | Automated Screw Feeder with Air-Lock Grid | Prevents back-firing safety risks while dosing low-density husks |
| Thermal Efficiency | 88.5% (With Specialized Multi-Cyclone Eco) | Extremely high rating for solid waste agricultural combustion |
| Emission Control | Wet Scrubber + Multi-Cyclone Dust Collector | Controls particulate emissions well below local regulatory caps |
Customer Challenges: High Waste-Disposal Costs and High Fuel Bills
A prominent rice milling facility in Southeast Asia processed hundreds of tons of paddy daily. While their milling production lines were highly efficient, the plant faced two major financial and operational bottlenecks that threatened their profit margins:
- Massive Waste Accumulation Hindering Logistics: The milling process generated tons of low-density rice husks every day. Storing and disposing of this loose agricultural waste took up massive amounts of warehouse space and incurred heavy local environmental disposal fees.
- Skyrocketing Secondary Drying Expenses: To parboil rice and run the grain drying towers, the factory relied on legacy diesel-fired hot air generators. The high cost of imported diesel fuel made their daily processing operations expensive and highly vulnerable to fuel price shocks.
The client realized that their massive waste pile was actually a concentrated source of thermal energy. They needed an advanced boiler system that could burn un-pelletized, raw rice husks cleanly without clogging. They selected Taiguo to deliver a complete turnkey solution covering everything from specialized fuel feeding system design to complete on-site installation.
Detailed Engineering Solution: Customized Biomass Steam Boiler for Rice Mill in Southeast Asia
To transform agricultural waste into high-quality process steam, Taiguo customized a DZH4-1.25-AII moving grate biomass boiler. The entire combustion layout was engineered around the unique chemical properties and flow characteristics of raw rice husks.
1. Biomass Fuel Delivery and Air-Staged Combustion Sequence For Biomass Steam Boiler for Rice Mill in Southeast Asia
The combustion loop handles agricultural solid waste through a highly specialized process:
- Automated Screw Feeding Of Biomass Steam Boiler for Rice Mill in Southeast Asia: Low-density rice husks travel from the storage silo into a heavy-duty screw conveyor system.
- Air-Lock Star Valve Protection Of Biomass Steam Boiler for Rice Mill in Southeast Asia: Fuel passes through a rotary air-lock valve, preventing hot furnace gases from back-firing into the hopper.
- Air-Staged Furnace Combustion Of Biomass Steam Boiler for Rice Mill in Southeast Asia: Secondary air injection jets push volatile gases back down into the fire bed (1st pass radiant zone), ensuring complete, smokeless combustion of loose chaff particles.
- Convective Wing Flues Of Biomass Steam Boiler for Rice Mill in Southeast Asia: High-temperature gas passes through threaded smoke tubes and lateral wing-shaped flues, maximizing heat transfer while lowering localized ash abrasion.
- Flue Gas Clean-Up Of Biomass Steam Boiler for Rice Mill in Southeast Asia: Exhaust streams enter a multi-cyclone separator to drop heavy ash particulates before venting cleanly up the stack.
2. Specialized Low-Sintering Moving Grate Design For Biomass Steam Boiler for Rice Mill in Southeast Asia
Rice husk ash contains high levels of silica, which melts into hard glass-like slag (sintering) if furnace temperatures fluctuate. Taiguo engineered an optimized moving grate system with customized air hole distributions. This layout cools the fuel bed uniformly, prevents large clinker formations, and allows operators to discharge fine ash smoothly.
3. High-Capacity Arch and Volume Geometry For Biomass Steam Boiler for Rice Mill in Southeast Asia
We raised the height of the furnace’s front and rear arches specifically for solid agricultural waste. The reflective heat from our specialized refractory arch shape preheats the wet, incoming husks instantly. This layout accelerates ignition speeds and sustains a clean, stable fire line even during volatile load changes.
Installation & Commissioning Process For Biomass Steam Boiler for Rice Mill in Southeast Asia
Erecting a solid-fuel thermal plant requires building deep combustion foundations and integrating bulky fuel handling systems. Taiguo managed the complete field construction program on-site in Southeast Asia through five structured phases:
- Phase 1: Foundation & Grate Erection Of Biomass Steam Boiler for Rice Mill in Southeast Asia – We supervised the reinforced concrete masonry pouring and positioned the heavy moving grate assembly frame precisely to ensure correct mechanical travel.
- Phase 2: Fuel Feeding & Draft Fan Integration – Technicians integrated the automated screw conveyors, connected the high-pressure secondary air blowers, and anchored the heavy-duty induced draft fans (IDF) to the exhaust lines.
- Phase 3: Hydrostatic Boundary Safety Testing For Biomass Steam Boiler for Rice Mill in Southeast Asia – Our field team filled the single-drum pressure assembly with water and pumped it to a hydrostatic test pressure of 1.875 MPa. We held the pressure stable to verify seal integrity across all convective tube junctions.
- Phase 4: Non-Destructive X-Ray Welding Exams For Biomass Steam Boiler for Rice Mill in Southeast Asia – Certified quality control inspectors performed on-site non-destructive testing on all newly welded steam distribution headers, ensuring zero structural defects before fuel ignition.
- Phase 5: Refractory Baking & Automated Handover – Our technicians executed a controlled, slow wood-fire bake-out over 48 hours to cure the new furnace refractories safely. Following the dry-out, we tuned the automated PLC feeding speeds, verified low-water safety shutdowns, and handed the running plant over to the client.
Project Results Of Biomass Steam Boiler for Rice Mill in Southeast Asia: Operational Excellence Matrix
The biomass steam boiler system delivered immediate fuel self-sufficiency right after commissioning. The data matrix below details the operational cost improvements achieved by the Southeast Asian milling plant:
| Performance Indicator | Old Diesel-Fired Utility | New Taiguo Biomass Plant | Operational & Financial Impact |
| Primary Fuel Source | Expensive Imported Diesel Oil | Free On-Site Rice Husks | 100% Direct Fuel Savings: Completely eliminates the mill’s monthly energy purchasing bills. |
| Husk Disposal Expense | High Monthly Waste Hauling Fees | Zero Waste Disposal Outlays | Circular Economy: Transforms a problematic waste accumulation into free processing steam. |
| Drying Steam Quality | Volatile Hot Air Temperatures | Saturated Constant Steam | Premium Product Upgrades: Prevents grain cracking to improve total head rice yield ratios. |
| Particulate Air Emissions | Moderate Carbon Footprint | Filtered & Clean Stack Plume | Full Local Compliance: Wet scrubbers trap fly ash particles to protect regional air quality. |
| Investment Payback Period | Ongoing Operational Expense | Fully Recovered in 9 Months | Exceptional Project ROI: Free fuel inputs drive incredibly fast infrastructure amortization. |
Project Engineering Gallery Of Biomass Steam Boiler for Rice Mill in Southeast Asia
Discover the real-world deployment footprints of Taiguo Boiler across Southeast Asian agricultural zones. Every stage highlights our strict quality standards.
- Renewable-Energy Fabrication – Advanced X-ray non-destructive welding inspection of the biomass boiler drum shell to ensure full safety compliance. Learn more about our specialized solid-fuel mechanical testing via our Industrial Boiler Engineering portal.
- Logistics & Transit Coordination – Safe cross-border overland transport configuration and tie-down anchoring for the modular packaged boiler block heading to the agricultural hub.
- Field Structural Erection – Taiguo field technicians supervising the crane lifting and mechanical assembly of the moving grate substructure and screw feeders. Read about our international field installation standards on our dedicated Industrial Boiler Engineering page.
- Furnace Refractory Bake-Out – Executing controlled slow-thermal curing cycles to dry the custom furnace arches safely without micro-cracking risks.
- Processing Facility Handover – The final biomass-fired boiler operating cleanly at full capacity, delivering stable parboiling steam using 100% recycled husks.
FAQ
Can raw rice husks be burned directly without pelletizing them first?
Yes, absolutely. Taiguo’s biomass boiler series is engineered specifically to handle loose, un-pelletized agricultural byproducts. Our automated feeding screw and air-staged secondary injection system fluidize raw chaff instantly, allowing it to burn completely in suspension without requiring expensive pelletization pre-treatment.
How does the moving grate design prevent ash clogging and sintering?
Rice husk ash is rich in silica, which turns into hard slag under concentrated heat. Our moving grate shifts the fuel bed mechanically at adjustable intervals. This constant movement breaks up early clinker bonds, balances primary under-grate airflow, and drops fine ash safely into the automatic removal hoppers.
Is a biomass boiler difficult to operate compared to gas or oil fired boilers?
While solid-fuel boilers require mechanical fuel storage and ash handling, Taiguo minimizes manual intervention. Our Siemens PLC automation system synchronizes screw conveyor dosing speeds directly with real-time steam pressure changes, offering an easy user experience similar to conventional gas units.
Does Taiguo customize biomass boilers for other agricultural waste fuels?
Yes. Our technical team tailors furnace configurations and grate geometries for a wide range of regional biomass inputs. We provide optimized designs for coffee grounds, palm oil shells, wood chips, bagasse, peanut hulls, and straw briquettes.
