1. Project Profile & Performance Highlights For SZL20 biomass steam boiler Indonesia
- Location & Year: Medan, North Sumatra, Indonesia | Project Commissioned in October 2024
- Client Industry: Industrial Packaging Paper, Kraft Linerboard & Corrugated Medium Paper Mill
- System Equipment: 1 Unit of SZL20-1.6-M Biomass Solid Fuel Steam Boiler (20 t/h capacity)
- Core Architecture: Double-drum longitudinal shop-assembled water tube structure with heavy chain grate.
- Measured ROI: Zero Coal Procurement Cost Overhead yielding over USD 21,500+ monthly savings with an incredible 11-month equipment amortization payback.
- Track Record: 20+ Months of continuous 24/7 heavy industrial steam baseload delivery under harsh solid-fuel combustion environments.
2. Customer Background & Southeast Asian Paper Sector Solid Fuel Pain Points
The client operates a modern, high-capacity industrial paper mill and recycled linerboard manufacturing complex near Medan, Indonesia. Heavy-duty papermaking requires an immense, continuous supply of high-pressure saturated steam. Giant paper machine drying cylinders, multi-stage pulp digestion chests, and wastewater concentration networks depend on steady 1.2 MPa – 1.6 MPa steam pressures to flash moisture from wet pulp sheets at high conveyor speeds.
Operating an industrial paper utility plant inside the Indonesian manufacturing ecosystem exposes corporate managers to severe technical and fiscal liabilities:
- Exorbitant Industrial Coal Procurement Costs: Relying on commercial low-calorie coal or imported fuel oils spikes factory utility budgets, destroying net profit margins in the competitive ASEAN paper market.
- Massive Local Agro-Industrial Biomass Fluctuations: Indonesia possesses abundant agricultural wastes like Palm Kernel Shells (PKS) and Empty Fruit Bunches (EFB). However, these biomass varieties feature high moisture, low ash-fusion limits, and irregular shapes, which jam or burn out standard solid-fuel grates.
- Severe Steam Drying Temperature Dropouts: Papermaking drying lines experience rapid load shifts during paper web breaks or speed adjustments. Slow-responding boilers suffer massive pressure drops, leaving paper damp and causing weak tensile paperboard rejects.
The paper manufacturing group required a heavy-duty, highly robust 20 t/h double-drum water tube boiler. The asset must utilize low-cost local palm agricultural waste cleanly while maintaining rock-solid thermal stability across continuous 24-hour shifts.

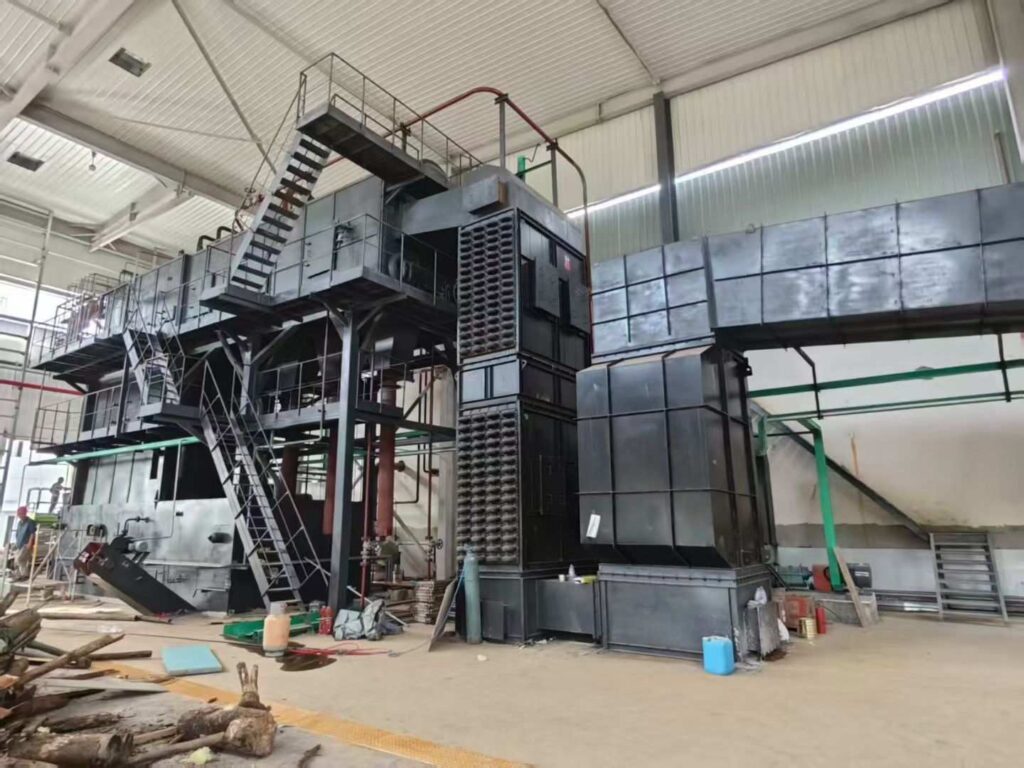

3. The Renewable Solid Fuel Water Tube SZL20 biomass steam boiler Indonesia Solution
Taiguo Factory engineered an advanced SZL20 double-drum longitudinal water tube boiler equipped with a customized heavy-duty mechanized chain grate stoker to automate biomass waste combustion.
High-Volume Water Tube Fluid Circulation Of SZL20 biomass steam boiler Indonesia
The SZL20 structure splits into upper and lower longitudinal steam drums connected by dense convective water tube banks. Membrane wall panels line the large furnace, expanding radiant heat surfaces. This configuration maximizes water circulation velocity, allowing the boiler to absorb explosive heat loads from biomass burning without creating tube scale hot spots or localized stress fatigue.
Reinforced Mechanized Chain Grate System Of SZL20 biomass steam boiler Indonesia
To process variable palm biomass fuels smoothly, we reinforced the combustion bed with premium heat-resistant scale grate bars. A small-angle mechanized feeder feeds fuels like palm kernel shells or mixed wood chips uniformly onto the grate. Independent air plenum chambers beneath the grate adjust combustion drafts, ensuring complete, smoke-free burnout across variable fuel moisture shifts.
4. Market Synergies within the Indonesian Paper Packaging Industry
Indonesia remains a premier powerhouse for pulp and paperboard exports across the Asia-Pacific region. As international retail brands enforce strict green manufacturing mandates, local mills are upgrading legacy utilities to sustainable biomass platforms:
- Circular Agro-Industrial Sustainability: Burning available palm mill shells or lumber shavings decouples the mill completely from expensive fossil fuels, achieving carbon-neutral operational status.
- Strict Regional Environmental Compliance: We paired the solid-fuel boiler with an advanced multi-cyclone soot collector and a downstream water-film wet scrubber stack. The setup ensures the entire system is designed to comply with local emission requirements across Indonesian national regulations perfectly.
- Heavy Industrial Baseload Continuity: The robust longitudinal double-drum layout provides a substantial internal water capacity, providing massive steam reserves to handle sudden paper drying cylinders shifts safely.
5. Technical Parameters of the SZL20 biomass steam boiler Indonesia Plant
| System Configuration Item | Technical Specification Value |
| Boiler Structural Model | SZL20-1.6-M (Longitudinal double-drum shop-assembled water tube) |
| Rated Steam Capacity Rate | 20t/h (20 Ton Per Hour Saturated Steam Output Capacity) |
| Design Working Pressure | 1.6MPa(High-pressure margin for massive paper machine lines) |
| Saturated Boiler Temperature | 204℃ |
| Primary Solid Fuel Profiles | Palm kernel shells (PKS), biomass wood pellets, agricultural offcuts |
| Measured Plant Thermal Efficiency | > 88.5% (With Heavy-Duty Extended Finned-Tube Economizer) |
6. System Installation and Commissioning Of SZL20 biomass steam boiler Indonesia
Our specialized field engineering supervisors directed the maritime transport rigging, structural alignment, and pipeline initialization loops in North Sumatra.
- Modular Assembly Engineering Execution: The SZL20 features a smart two-component modular delivery. The upper component houses the convective tube banks, while the lower component holds the chain grate chassis. Our team leveled these sections with a strict 1mm structural tolerance, ensuring stable water lines across the steam drums.
- Water Quality Lifespan Calibration: Water-tube boilers cannot tolerate mineral scaling. We configured an automated twin-tank reverse osmosis (RO) system coupled with a continuous chemical dosing assembly. You can review our full field validation processes on our dedicated Boiler Commissioning Service page.
- Air Balance Optimization: Our technicians fine-tuned the multi-zone under-grate blast dampers, balancing primary and secondary air injections to optimize palm hull volatile gas combustion.
7. Operating Results & Complete ROI Analysis Of SZL20 biomass steam boiler Indonesia
This heavy-duty SZL20 biomass water-tube boiler has delivered continuous baseload thermal power for the Sumatra paper packaging group for over 20 months.
- Complete Liberation from Commercial Coal: The mill shifted its thermal energy profile to local palm agricultural scrap, lowering fuel procurement expenses to near zero.
- Substantial Monthly Monetary Savings: The bio-fuel migration saves the industrial paper complex approximately USD 21,500 to USD 24,800 per month in operating expenditures.
- 11-Month Extreme Capital Payback Window: Low initial fuel costs combined with top-tier combustion efficiency allowed the company to fully amortize equipment acquisition outlays within 11 months.
- Flawless Paper Drying Quality Control: Stable±0.04 MPa steam header pressure regulation across the drying drums dropped paper web breakages and moisture rejection rates to absolute zero.
8. Summary of Engineering Scope Of SZL20 biomass steam boiler Indonesia
Taiguo Factory provided comprehensive lifecycle support and heavy mechanical integration for this Indonesian paper manufacturing asset, ensuring clean performance:
- High-Pressure Utility Layout Engineering: Designed the complete boiler room plant layout schematics, high-volume steam headers, and water treatment network algorithms.
- SZL20 Water Tube Vessel Components Precision Fabrication: Manufactured the long steam drums and membrane walls under rigorous hydraulic checks with 100% radiographic testing of welded seams. You can review our testing protocols on our dedicated Boiler Manufacturing & Quality Inspection Capabilities page.
- Customized Biomass Chain Grate Fabrication: Reinforced the carbon-steel grate bars and multi-speed gearboxes to handle high-friction solid biomass fuels smoothly.
- Multi-Stage Air Pollution Filter Grid Integration: Connected high-efficiency multi-cyclone soot collectors and wet scrubbing towers to wash particulate emissions before exhaust stack release.
- Centralized Automation System Commissioning: Calibrated automated control loops for real-time electronic water tracking, under-grate fan draft balancing, and automatic high-limit cutoffs.
- On-Site Indonesian Operator Certification Training: Trained localized plant engineers in routine reverse osmosis water soften testing, automated continuous blowdowns, and solid-fuel combustion damper adjustments.
9. Related Solutions & Products
- SZL Series Biomass/Coal Chain Grate Boiler (4t/h – 35 t/h)
- YLW Series Coal/Biomass Thermal Oil Boiler (350kW– 14000kW)
- Industrial Boiler Manufacturing Capabilities
- Customized Thermal Solutions for Pulp, Paper & Packaging Industries
Related Project Case Studies :
- Indonesia Garment Factory – 18 t/h Centralized Parallel WNS6 Boiler Operations
- Indonesia Wood Processing Plant – YLW Biomass Chain Grate Thermal Oil Boiler
- Saudi Arabia Packaging Plant – WNS10 ASME Gas Fired Steam Boiler Shipment
10. Project Frequently Asked Questions Of SZL20 biomass steam boiler Indonesia
What are the main technical benefits of an SZL water tube boiler over WNS shell boilers for a 20 t/h paper mill?
WNS fire-tube boilers hold a massive volume of water inside a single shell, creating large thermal inertia that reacts slowly to load changes. Paper mills experience sudden, violent steam demand shifts during production adjustments. The SZL water tube layout holds less relative water per module, flashing heat into steam lines instantly to handle high-volume load surges without dropping header pressures.
How does the chain grate furnace handle high-volatile fuels like palm kernel shells safely?
Palm kernel shells release explosive volatile gases rapidly upon entering a hot furnace. Traditional solid boilers cause back-smoking or flashing failures under these loads. Our SZL furnace features a spacious combustion chamber paired with a high-pressure secondary air fan. This system injects air streams above the fuel bed, mixing and burning volatile gases completely while dropping soot emissions.
What feed-water purity standards protect the small-diameter tubes of a 1.6 MPa SZL boiler?
To prevent hard scale layers from overheating the water tubes, incoming feed-water must undergo full reverse osmosis (RO) purification and active thermal deaeration. Total water hardness must stay strictly at 0 mu mol/L, dissolved oxygen must drop below 0.015 mg/L, and water pH must be maintained between 8.5 and 9.2 to avoid interior pipe corrosion.
How does the system prevent grate jamming when burning irregular tree bark or wood offcuts?
Our heavy-duty chain grate stoker incorporates reinforced, high-tensile carbon steel link chains driven by an automated variable frequency drive (VFD) gearbox. If an irregular timber chunk blocks the fuel channel, the torque sensor drops a signal to the central panel, reversing the grate track momentarily to clear the block automatically.
