1. Project Profile & Performance Highlights Of WNS10 gas steam boiler Saudi Arabia
- Location & Year: Riyadh Industrial City, Kingdom of Saudi Arabia | Project Shipped and Commissioned in November 2024
- Client Industry: Heavy-Duty Industrial Packaging & Paperboard Manufacturing Group
- System Equipment: 1 Unit of WNS10-1.25-Q Gas-Fired Packaged Steam Boiler (10 t/h capacity)
- Core Certification: Strict ASME (American Society of Mechanical Engineers) “S” and “U” Stamp Compliance.
- Measured ROI: 16.5% Reduction in Fuel Gas Overhead yielding USD 8,400+ monthly energy savings with a projected 14-month capital payback window.
- Track Record: 19+ Months of seamless automated high-dryness steam delivery across intensive corrugated paper production runs.
2. Customer Background & Gulf Industrial Sector Strict Code Pain Points
The client operates a world-class industrial packaging and high-density corrugated board manufacturing complex in Riyadh, Saudi Arabia. Corrugated board production requires large volumes of constant, reliable thermal energy. Heavy-duty corrugators, pre-heating drums, and starch glue curing stations depend on high-dryness saturated steam between 170℃ and 195℃ to maintain continuous corrugation speeds without paper tearing or delamination flaws.
Operating a high-capacity utility station in the Gulf Cooperation Council (GCC) market exposes operations managers to strict technical and regulatory challenges:
- Strict Regulatory ASME Compliance Codes: The Saudi Arabian Ministry of Industry and local insurers enforce zero-compromise adherence to international boiler codes. Importing standard non-ASME boiler units triggers immediate custom clearance rejections and factory operational bans.
- Extreme Ambient Sandstorm Environments: The central desert plains of Saudi Arabia experience intense summer ambient heat up to 50℃ combined with heavy atmospheric fine dust storms. Standard electronic combustion components overheat and fail rapidly under these conditions.
- Fuel Budget Stress Under Volatile Tariff Adjustments: Industrial facilities in Riyadh operate under strict carbon footprint audits and local fuel price metrics. Older, poorly insulated boilers cause excessive stack heat dissipation, heavily draining monthly operating margins.
The manufacturing corporation required an ASME-certified, turnkey 10 t/h fire-tube gas boiler equipped with heavy-duty weatherization configurations to withstand harsh desert conditions while maintaining peak energy efficiencies.
3. The ASME-Compliant WNS10 Gas Steam Boiler Saudi Arabia Solution
Taiguo Factory engineered a customized WNS10 gas-fired horizontal fire-tube steam boiler plant, shifting raw vessel steel fabrication into full alignment with international ASME code guidelines.
ASME Code Pressure Vessel Metallurgy
Our manufacturing facility selected specialized boiler plates matching strict ASME SA516-Gr70 steel standards. All main longitudinal and circumferential seams underwent 100% radiographic testing and manual ultrasonic verification before code stamp authorizations. The wet-back three-pass fire-tube structure optimizes thermal tracking while avoiding the rear smoke box cracking defects found in older dry-back layouts.
High-Dryness Industrial Vapor Assurance
To protect high-speed paper corrugators from moisture spots, we integrated an advanced internal baffled moisture separator array within the upper boiler water space. This layout eliminates micro-water carryover continuously. Saturated steam dryness surpasses 98.5%, optimizing heat transfer efficiency across corrugator cylinders while completely preventing thermal adhesive starch diluted failures.
4. Market Synergies within the Saudi Industrial Modernization Strategy
Saudi Arabia is aggressively expanding its localized non-oil industrial sectors under its Vision 2030 economic framework, driving massive investments into sustainable consumer packaging and regional logistics hubs. Our advanced WNS10 gas steam boiler plant matches this manufacturing expansion perfectly:
- High Ambient Climate Adaptation: We equipped the fully modulating burner with an integrated air intake dust filtration network and tropicalized enclosure cabins to prevent central control processor overheating during summer peaks.
- Seamless Pipeline Gas Integration: The fuel system utilizes local natural gas infrastructures efficiently via precision automatic combustion ratio systems to minimize raw fuel expenditures.
- Compliant Industrial Park Layouts: The advanced three-pass configuration paired with clean combustion chambers ensures the entire boiler plant is designed to comply with local emission requirements across Saudi industrial zones.
5. Technical Parameters of the WNS10 Gas Steam Boiler Saudi Arabia Plant
| System Configuration Item | Technical Specification Value |
| Boiler Structural Model | WNS10-1.25-Q (ASME Code wet-back three-pass fire-tube layout) |
| Rated Steam Capacity Rate | 10 t/h (10 Ton Per Hour Saturated Steam Output) |
| Design Code Standards | ASME “S” and “U” Stamps Authorized Certification |
| Rated Operating Pressure | 1.25 MPa (Perfect for long manufacturing header networks) |
| Saturated Boiler Temperature | 194℃ |
| Measured Energy Efficiency | > 95.8% (With Advanced Finned-Tube Reclaim Economizer) |
6. System Installation and Commissioning Of WNS10 Gas Steam Boiler Saudi Arabia
Our specialized field engineering supervisors directed the overseas transport rigging, position leveling, and piping grid balancing in Riyadh.

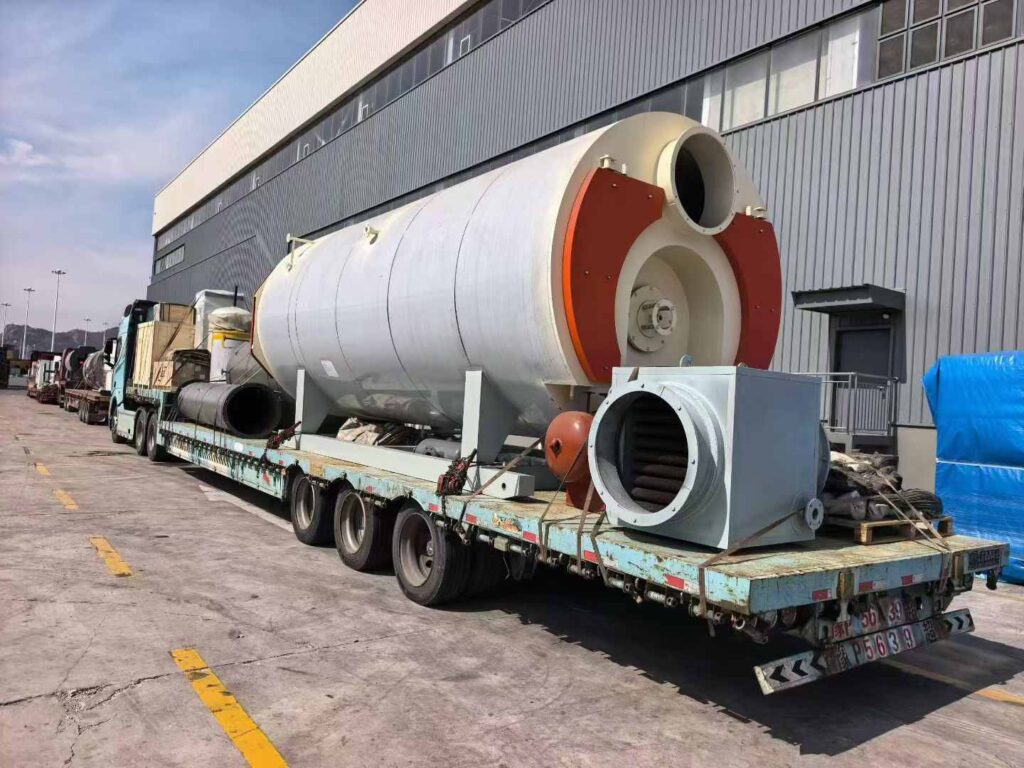

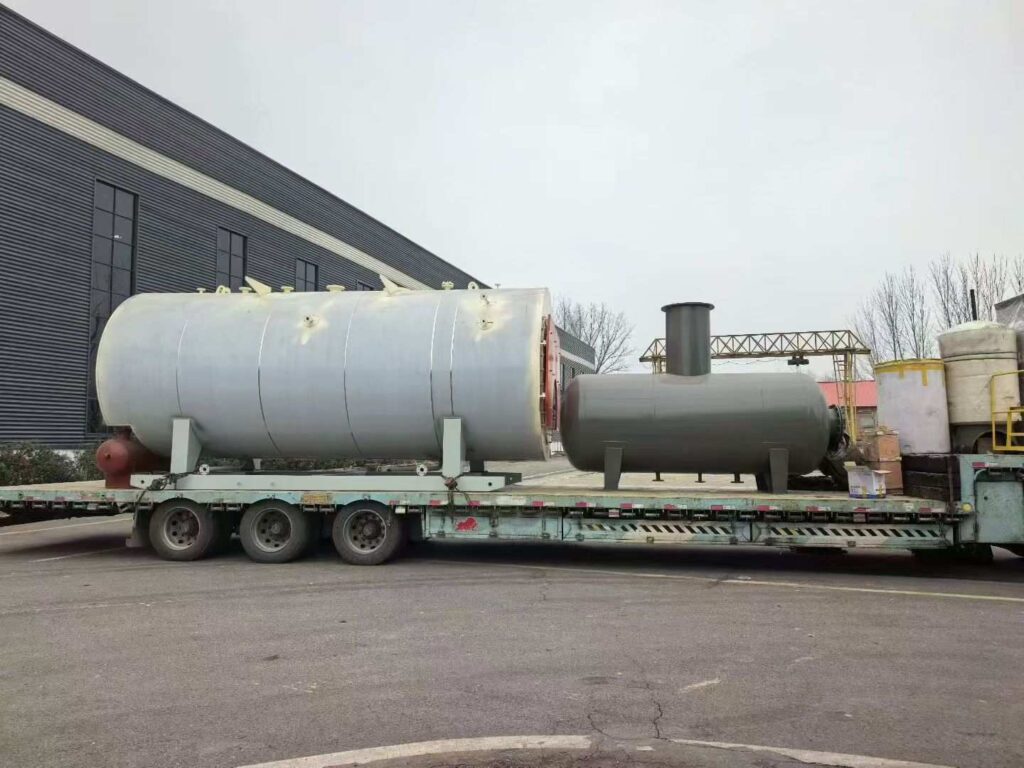

- Logistics Custom Clearance Protection: We packed the boiler shell inside a heavy-duty seaworthy shrink wrapping protection frame with desiccant blocks, preventing humidity corrosion during long maritime and overland desert travel routes.
- Water Quality Maintenance Calibration: Hard water causes scale layers that damage fire-tube walls. We deployed an automated reverse osmosis (RO) system coupled with a continuous chemical dosing assembly. You can review our full field validation processes on our dedicated Boiler Commissioning Service page.
- Burner Modulating Tuning: Our technicians calibrated the electronic combustion actuators to maintain steady manifold steam pressures within a tight± 0.03MPa range during sudden load shifts.
7. Operating Results & Complete ROI Analysis Of WNS10 Gas Steam Boiler Saudi Arabia
This ASME-certified WNS10 gas-fired steam boiler has delivered continuous baseload thermal power for the Riyadh packaging enterprise for over 19 months.
- Zero Regulatory Custom Clearence Issues: Full ASME stamp document verification passed Saudi border import audits smoothly, eliminating port storage penalty fees.
- 16.5% Monthly Fuel Gas Savings: An advanced finned-tube economizer captures stack exhaust heat to preheat incoming boiler water, lowering fuel consumption metrics.
- Direct Financial Cash Flow Improvements: The optimized system heat transfer saves the industrial factory approximately USD 8,400 to USD 9,600 per month in utility expenditures.
- 14-Month Investment Payback Amortization: Avoiding regulatory operational delays combined with top-tier gas efficiency allowed the client to completely recover their capital layout within 14 months.
8. Summary of Engineering Scope Of WNS10 Gas Steam Boiler Saudi Arabia
Taiguo Factory provided comprehensive turnkey shipping and verification support for this Middle Eastern manufacturing asset, ensuring clean performance:
- High-Pressure Manifold Grid System Design: Engineered optimized steam distribution layouts to connect the WNS10 package safely with high-speed corrugating manufacturing lines.
- ASME Standard Pressure Vessel Fabrication: Manufactured the main boiler shell and corrugated furnace under strict code inspector controls with 100% radiographic testing of welded seams. You can review our testing equipment on our dedicated Boiler Manufacturing & Quality Inspection Capabilities page.
- Desert Weatherized Burner Optimization: Customized the imported gas burner with high-efficiency intake dust filters and tropicalized control cabinets to handle extreme $50^\circ\text{C}$ heat waves.

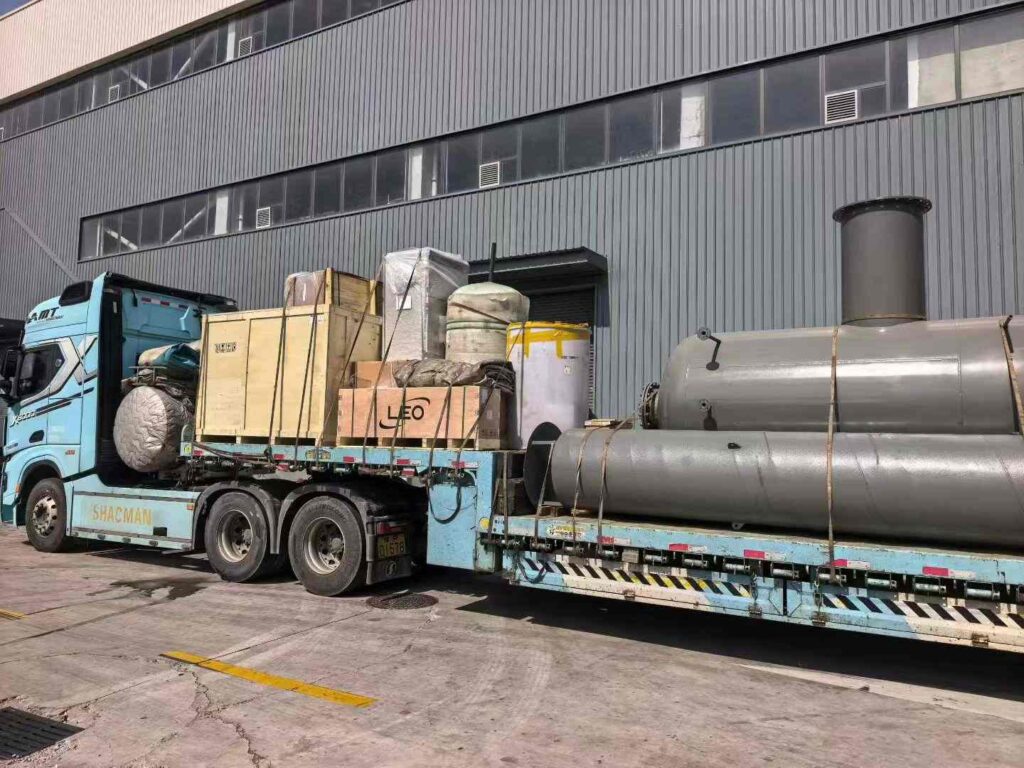

- Overseas Shipment and Marine Rigging Packaging: Managed heavy protective shrink framing, ocean cargo space allocation, and overland flatbed desert transport security checkups.
- Automated Siemens PLC Automation Commissioning: Configured automated control logic loops for electronic water tracking, gas valve train pressure testing, and emergency low-water shutdowns.
- Local Factory Operator Certification Training: Trained localized plant engineers in routine reverse osmosis soft-water tracking, automated surface blowdowns, and electronic burner troubleshooting.
10. Related Solutions & Products
- WNS Series Gas/Oil Steam Boiler (1 t/h– 20t/h)
- SZS Large Capacity Gas/Oil Steam Boiler (10 t/h – 100 t/h)
- ASME Code Custom Pressure Vessel Fabrication Services
- Customized Thermal Solutions for Packaging & Paperboard Manufacturing
Related Project Case Studies :
- Uzbekistan textile mill – WNS10 Gas Fired Steam Boiler Operation Review
- Indonesia Food Complex – WNS2 Packaged Containerized Steam Boiler Solution
- Philippines Factory – SZS15 Water Tube Saturated Steam Boiler Performance
9. Project Frequently Asked Questions (FAQ)For WNS10 Gas Steam Boiler Saudi Arabia
What makes an ASME-certified boiler different from standard industrial steam boilers?
ASME certification requires strict code compliance spanning raw steel plate purchasing (e.g., ASME SA516), third-party inspector weld mapping, and rigorous destructive/non-destructive testing verification. Full ASME compliance ensures the pressure vessel meets strict global safety parameters, making it fully compliant for immediate import clearance in Saudi Arabia.
How does the boiler burner maintain peak stability during desert dust storms?
Traditional open burners suck in sand particles, fouling combustion fans and clogging fine gas nozzles. Our customized Saudi configuration features an enclosed air intake plenum equipped with industrial-grade multi-stage micro-dust filtration grids. This layout blocks sand particles completely, ensuring clean air-fuel mixing ratios.
Why is steam dryness so critical for paper corrugated board packaging factories?
If steam contains moisture droplets, it causes uneven heat transfer surfaces across the drying cylinders. This moisture causes the paper adhesive starch to weaken, leading to paperboard warping and peeling defects. Our internal baffled steam separators keep steam dryness above 98.5% to ensure crisp, warp-free corrugation.
Can this WNS10 Gas Steam Boiler Saudi Arabia switch to liquid oil fuel if natural gas lines experience dropouts?
Yes. When paired with our dual-fuel burner packages, operators can toggle the primary combustion line from natural gas to backup diesel fuel oil via the touchscreen control interface within minutes, avoiding production downtime during regional gas grid shortages.
