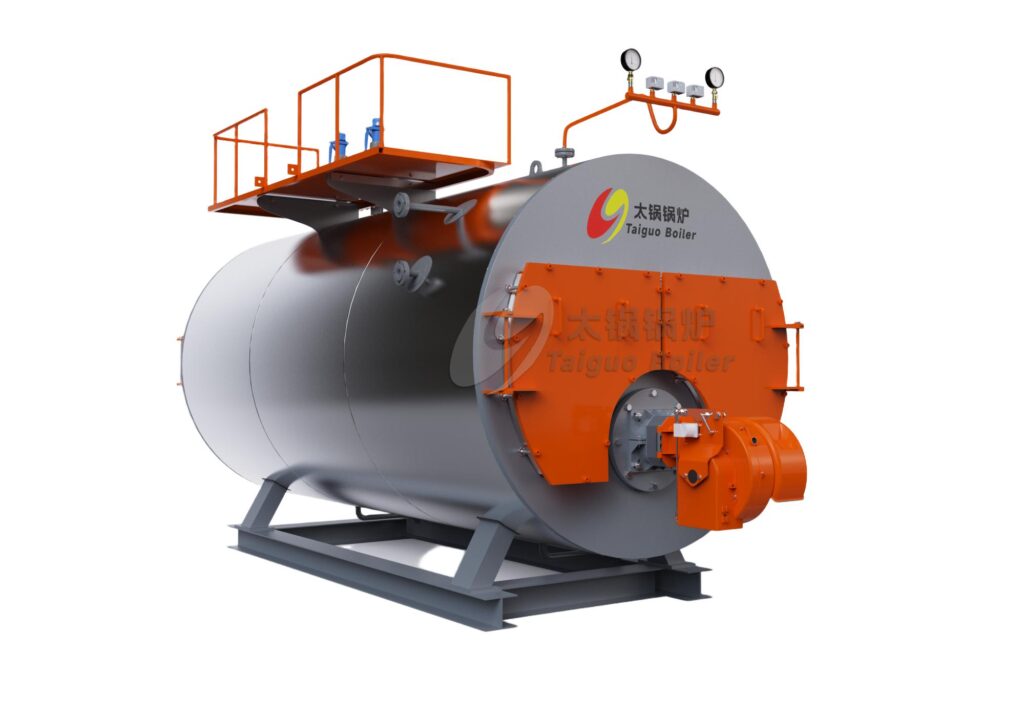

The WNS series gas & oil fired steam boiler is a horizontal three-pass wet-back industrial steam system designed for stable and efficient steam generation in industrial applications.
Taiguo Boiler is responsible for design, manufacturing, and factory testing, while CNMIRACLE manages international project development, engineering solutions, and overseas technical support.
The system is manufactured by Henan Taiguo Boiler Manufacturing Co., Ltd., a Class-A certified industrial boiler production base specializing in heavy-duty thermal equipment.
The WNS series adopts a horizontal three-pass wet-back structure designed to improve combustion efficiency and ensure stable long-term operation under industrial load conditions.
To enhance system reliability, key components are integrated from internationally recognized industrial suppliers and undergo strict factory testing before shipment.
The system is widely applied in textile, food processing, chemical, and other industrial sectors requiring continuous steam output.
1. Core Technical Specifications OF WNS Series Gas & Oil Fired Steam Boiler
The WNS series is a horizontal, three-pass, wet-back internal combustion boiler. This design is engineered to maximize heat transfer while protecting the boiler shell from high-temperature fatigue.
1. High-Performance Structural Specs Of Gas & Oil Fired Steam Boiler
- Three-Pass Wet-Back Design: We utilize a three-pass structure that increases the smoke flow path. The wet-back design ensures the rear smoke chamber is submerged in water, preventing plate cracking.
- Corrugated Furnace: Every WNS boiler features a large-diameter corrugated furnace. This increases the heating surface area and allows for the natural thermal expansion of the boiler steel.
- Advanced Boiler Steel: We use specialized Q345R pressure vessel steel. We perform 100% X-ray flaw detection on all main welds to ensure a 20-year service life.
2. Operational Efficiency & Output Of Gas & Oil Fired Steam Boiler
- Thermal Efficiency: By integrating a specialized economizer (waste heat recovery), our WNS boilers reach an efficiency rate of 98% to 99%.
- Steam Quality: The large steam space ensures a high dryness fraction, which is critical for food sterilization and chemical processing.
- Capacity Range: We provide standard models from 1 ton to 20 tons per hour, meeting the needs of both small workshops and large industrial plants.
3. Precision Automation & Safety Of Gas & Oil Fired Steam Boiler
Safety Interlocks: Redundant safety valves and low-water alarms are standard. The system automatically shuts down if it detects abnormal pressure or flame failure.
Intelligent PLC Control: Our systems feature fully automated startup, flame monitoring, and water level regulation.
Multi-Fuel Burners: We equip our boilers with world-class burners (such as Baltur or Riello) that support natural gas, diesel, or heavy oil.
4.Technical Specification Table (WNS Series) Of Gas & Oil Fired Steam Boiler
| Technical Parameter | Specification Detail | Strategic Value |
|---|---|---|
| Rated Steam Capacity | 1.0 TPH to 20.0 TPH | Scales with your factory production needs. |
| Working Pressure | 0.7 MPa to 1.6 MPa (Customizable) |
Optimized for autoclaves and heating. |
| Rated Steam Temp | 170 to 204°C | Ideal for high-temp industrial drying. |
| Thermal Efficiency | Up to 99% (with Economizer) | Minimizes monthly gas or oil consumption. |
| Fuel Compatibility | Gas, Diesel, Heavy Oil, LPG | Matches the most economical local fuel. |
WNS Series Gas & Oil Fired Steam Boiler Technical Parameters
| Model | Capacity (t/h) | Pressure (MPa) | Thermal Eff. | Diesel Cons. (kg/h) | Gas Cons. (Nm³/h) | Dim. (m) | Weight (t) |
|---|---|---|---|---|---|---|---|
| WNS1-1.0/1.25/1.6-Y(Q) | 1 | 1.0 / 1.25 / 1.6 | 92% | 63.94 | 70.7 | 3.6 × 2.0 × 2.0 | 4 |
| WNS2-1.25/1.6/2.0/2.5-Y(Q) | 2 | 1.25 / 1.6 / 2.0 / 2.5 | 92% | 127.88 | 141.4 | 4.8 × 2.1 × 2.3 | 8 |
| WNS3-1.25/1.6/2.0/2.5-Y(Q) | 3 | 1.25 / 1.6 / 2.0 / 2.5 | 94% | 187.73 | 212.0 | 5.1 × 2.1 × 2.3 | 10 |
| WNS4-1.25/1.6/2.0/2.5-Y(Q) | 4 | 1.25 / 1.6 / 2.0 / 2.5 | 94% | 250.31 | 282.8 | 5.2 × 2.1 × 2.3 | 11.6 |
| WNS5-1.25/1.6/2.0/2.5-Y(Q) | 5 | 1.25 / 1.6 / 2.0 / 2.5 | 95% | 309.60 | 353.5 | 5.32 × 3.1 × 3.0 | 13 |
| WNS6-1.25/1.6/2.0/2.5-Y(Q) | 6 | 1.25 / 1.6 / 2.0 / 2.5 | 95% | 371.52 | 424.2 | 5.4 × 3.1 × 3.15 | 16.6 |
| WNS7-1.25/1.6/2.0/2.5-Y(Q) | 7 | 1.25 / 1.6 / 2.0 / 2.5 | 95% | 433.44 | 496.0 | 6.1 × 2.4 × 2.98 | 20 |
| WNS8-1.25/1.6/2.0/2.5-Y(Q) | 8 | 1.25 / 1.6 / 2.0 / 2.5 | 95% | 495.35 | 565.6 | 6.35 × 2.5 × 2.98 | 21.3 |
| WNS10-1.25/1.6/2.0/2.5-Y(Q) | 10 | 1.25 / 1.6 / 2.0 / 2.5 | 96% | 612.75 | 707.0 | 6.75 × 2.6 × 3.2 | 25.6 |
| WNS12-1.25/1.6/2.0/2.5-Y(Q) | 12 | 1.25 / 1.6 / 2.0 / 2.5 | 96% | 735.30 | 848.4 | 7.2 × 3.0 × 3.3 | 35 |
| WNS15-1.25/1.6/2.0/2.5-Y(Q) | 15 | 1.25 / 1.6 / 2.0 / 2.5 | 96% | 919.10 | 1060.5 | 7.42 × 3.35 × 3.5 | 40 |
| WNS20-1.25/1.6/2.0/2.5-Y(Q) | 20 | 1.25 / 1.6 / 2.0 / 2.5 | 96% | 1225.50 | 1414.0 | 7.97 × 3.73 × 3.96 | 50 |
Note:
- Diesel heat value is calculated at 10,200 kcal/kg; natural gas heat value is calculated at 8,500 kcal/Nm³. These parameters are for reference only.
- The fuel consumption listed above represents the maximum value when the boiler runs at full load, with condensing water at 90°C.
5.WNS Series Boiler Configuration & System Description
Taiguo Boiler delivers complete turnkey steam energy solutions. We do not just sell a bare boiler block. Our team configures fully integrated, highly efficient steam systems for global B2B buyers.
1. Standard Configuration (Ready-to-Run Package)
Our standard configuration includes all essential components. We guarantee immediate, safe, and stable operations after correct installation.
- Boiler Proper (Body): High-quality WNS series pressure vessel. It features an optimized wet-back structure.
- Industrial Burner: Imported premium brand burner. It ensures complete fuel combustion and high thermal output.
- Control Cabinet: Central electric control panel. It automates pressure, water level, and safety interlocks.
- Feed Water Pump: High-pressure multistage centrifugal pump. It supplies water smoothly under high boiler pressure.
- Safety Valves & Gauges: Dual safety valves, pressure gauges, and water level gauges. They provide absolute overpressure protection.
- Chimney Connection: Standard flue gas outlet adapter. It connects the boiler body to your exhaust duct seamlessly.
2. Optional Configuration (Efficiency & Intelligence Upgrades)
We offer advanced optional components. These upgrades optimize fuel efficiency, reduce emissions, and enable intelligent digital operations.
- Flue Gas Economizer: Recovers waste heat from exhaust gas to preheat feed water. Benefit: Increases efficiency by 5% and saves massive fuel costs.
- Condensate Recovery System: Collects and recycles hot condensed water from production lines. Benefit: Saves up to 20% water and reduces heating fuel usage.
- Water Treatment System: Removes calcium and magnesium ions via an automatic ion exchanger. Benefit: Prevents boiler scale formation and extends equipment lifespan greatly.
- PLC Touch Screen Panel: Uses Siemens PLC logic systems with a colorful touch interface. Benefit: Enables one-button startup and reduces manual labor costs significantly.
- Low-NOx Burner: Employs flue gas recirculation (FGR) technology to limit combustion heat. Benefit: Reduces NOx emissions below 30mg/m³ to meet strict local eco-rules.
- Remote Monitoring System: Transmits real-time boiler running data via cloud IoT modules. Benefit: Supports smartphone tracking and prevents potential operation risks online.
- Steam Header (Manifold): Distributes main steam into multiple independent output pipelines. Benefit: Provides stable pressure distribution to different workshop lines.
3. Complete Boiler Room Layout Blueprint
We design full custom layouts. The technical flowchart below shows how our complete system delivers thermal energy to your factory:
Raw Water Tank ➔ Water Softener ➔ Feed Water Pump ➔ WNS Steam Boiler ➔ Steam Header ➔ Your Production Line
4. Customized Engineering by Target Industries
Different industrial sectors require distinct steam qualities. We customize the auxiliary equipment packages according to your exact business application:
- Textile & Dyeing Mills: Flue Gas Economizer + Condensate Recovery System + Water Softener. Textile factories consume massive steam continuously. Heat recovery systems save huge annual running bills.
- Food & Beverage Processing: Stainless Steel Water Tank + Siemens PLC System + Low-NOx Burner. Food manufacturing demands ultra-pure, sanitary steam. Full automated control ensures strict hygiene standards.
- Commercial Laundry Plants: High-Efficiency Water Softener + Automatic Blowdown Valves. Laundry plants run fast heating cycles. Automatic blowdown prevents scale deposit during rapid evaporation.
5. Heavy-Duty Export Package for Global Projects
We understand the challenges of overseas factory installations. Taiguo Factory provides an exclusive export support package to guarantee zero-risk deployment:
- Wearable Spare Parts Package: Includes premium gaskets, valves, and switches for two years of continuous maintenance.
- Full English Interface: Electrical control panels and PLC smart touchscreens feature fluent English operating systems.
- Complete Technical Documentation: We supply detailed English manuals, layout foundation blueprints, and precise pipeline design drawings.
- Remote Commissioning Support: Senior engineers guide your local team online via high-definition video calls anytime.
- Global Certification: We provide necessary certificates like GOST/EAC for Central Asia (Uzbekistan) markets.
6. Required Auxiliary Equipment Checklist
| Auxiliary Equipment Name | Necessity Level | Taiguo Factory Supply Capability |
|---|---|---|
| Water Softener System | 100% Mandatory | Fully Supplied & Calibrated |
| Feed Water Storage Tank | 100% Mandatory | Fully Supplied (Carbon/Stainless Steel) |
| High-Pressure Feed Pumps | 100% Mandatory | Dual Pumps Included (One Duty, One Standby) |
| Steam Distribution Header | Optional / Recommended | Custom Manufactured per Output Pipelines |
| Flue Gas Waste Economizer | Highly Recommended | Integrated Design Available |
2.Strategic Industry Applications & Process Flows
1. Food & Beverage Processing (Clean Steam) With Gas & Oil Fired Steam Boiler
In the food sector, maintaining high-purity steam is essential for hygiene and shelf-life. The typical workflow begins with Raw Material Cleaning and Blanching, followed by critical Sterilization and Concentration. Our high-efficiency food sterilization steam boiler ensures rapid pathogen removal in autoclaves, while a dedicated beverage factory heating system provides the thermal stability needed for consistent packaging.
2. Textile & Garment Manufacturing (Massive Volume)With Gas & Oil Fired Steam Boiler
The textile industry requires high volumes of continuous steam for complex treatments. The production cycle moves from Fabric Desizing and Scouring to Bleaching, Dyeing, and final Drying. Our textile dyeing steam boiler supplies high-pressure steam for heat exchangers in dyeing vats, acting as a complete fabric processing steam solution. Furthermore, integrated stenter machine heating systems ensure perfect fiber setting and color consistency.
3. Chemical & Pharmaceutical Production (Precision Heat)With Gas & Oil Fired Steam Boiler
Maintaining a precise thermal environment is critical to prevent batch failures. The process flow involves Reactant Pre-heating, Hydrothermal Reaction, Distillation, and Crystallization. Our systems act as the primary chemical reactor steam boiler, providing steady temperatures for long-cycle synthesis. When a facility requires a pharmaceutical grade steam solution, Taiguo provides the necessary reactor temperature control to ensure product purity.
4. Construction Materials (High-Pressure Curing)With Gas & Oil Fired Steam Boiler
The production of high-strength building materials like AAC blocks relies on consistent saturated steam. After Raw Material Mixing and Molding, the products enter the High-Pressure Curing phase. The WNS series acts as a reliable AAC plant steam boiler, supplying the “power” for hydrothermal reactions. Our concrete curing steam solution ensures that precast elements reach their maximum load-bearing capacity during the final autoclave steam supply cycle.
5. Hotel & Laundry Services (Centralized Supply)With Gas & Oil Fired Steam Boiler
Large-scale hospitality facilities must manage high volumes of hot water and steam simultaneously. The workflow involves Cold Water Softening, Heat Exchange, and Centralized Hot Water Supply. A dedicated hotel steam boiler for laundry applications provides the rapid heat needed for heavy-duty drying and pressing, while an integrated hotel central heating system maintains guest comfort across thousands of rooms.
6.Driving Efficiency in Paper and Packaging Production With Gas & Oil Fired Steam Boiler
In the high-demand paper industry, thermal energy accounts for a significant portion of operational costs. The production workflow typically involves Pulping, Refining, Sheet Formation, Pressing, and the energy-intensive Drying and Finishing stages. Our high-efficiency paper mill biomass boiler and gas-fired systems provide the steady, high-volume steam required to maintain paper quality and machine speed.
A dedicated paper mill steam boiler is essential for heating the drying cylinders, where moisture is removed from the paper web at precise temperatures. For facilities focused on sustainability, our systems act as a complete packaging plant energy solution, utilizing specialized heat exchangers to optimize the corrugated board production process.
By implementing an industrial cardboard manufacturing steam system, factory founders can ensure the reliable bonding of layers in corrugators. Furthermore, our integrated waste heat recovery units maximize your paper production ROI by capturing exhaust energy to pre-heat feed water, reducing monthly fuel consumption by 10% to 15%.
7. Bathing & Spa Centers (Stable Hot Water)With Gas & Oil Fired Steam Boiler
For bathing centers, a reliable supply of thermal energy is essential for guest satisfaction. The process includes Water Intake, Softening, and Direct Heating. Our high-efficiency bath center hot water boiler ensures a stable centralized hot water supply even during peak demand periods. This specialized spa heating solution ensures consistent temperatures across all outlets, maximizing operational efficiency for the facility owner.
3.BRAND & TRUST MODULE
Manufacturing Base & Brand Relationship
Please review the official brand structure and operational hierarchy below:
Manufacturing Function (Taiguo Boiler)
Taiguo Boiler Group manages the industrial production system for all boiler equipment.
Its core activities include engineering design development, precision fabrication, boiler assembly, and strict factory-level pressure and performance testing before shipment.
These processes ensure stable mechanical structure, thermal efficiency, and operational safety of all industrial boiler systems.
Engineering Function (CNMIRACLE)
CNMIRACLE manages global engineering operations for overseas industrial projects.
Its responsibilities include project coordination, system integration planning, export logistics management, and international technical support services.
The division also provides after-sales technical assistance to support long-term and stable boiler operation in global markets.
Integrated Industrial Structure
Taiguo Boiler Group focuses on manufacturing execution and strict quality control throughout the production process.
CNMIRACLE focuses on international engineering services, project execution coordination, and global customer communication.
This integrated structure ensures direct factory supply combined with coordinated global engineering support capability.
Factory Authority & Production Capabilities
Manufacturing Entity Overview
Henan Taiguo Boiler Industrial Production Base is the core manufacturing entity of Taiguo Boiler Group.
This facility is responsible for the full industrial production lifecycle of steam boilers, including engineering design, fabrication, assembly, inspection, and performance validation.
This establishes Taiguo Boiler as a dedicated industrial boiler manufacturing entity within the global supply chain.
Core Manufacturing Capabilities
The production base is specialized in heavy-duty industrial thermal equipment, including:
- WNS gas fired steam boilers
- Biomass fired steam boiler systems
- Thermal oil heating systems
These systems are engineered for continuous industrial operation under high thermal load conditions.
Quality Assurance & Compliance System
The manufacturing process follows strict industrial-grade quality control protocols:
- ISO 9001 certified quality management system
- China Class-A Boiler Manufacturing License
- Multi-stage hydrostatic pressure testing
- Weld integrity inspection and structural verification
These procedures ensure operational safety, structural stability, and long-term performance reliability.
Engineering & Production Strength
The production base integrates automated manufacturing lines with professional engineering supervision.
Key processes include:
- Structural engineering design validation
- Automated welding and fabrication systems
- Pressure vessel assembly and inspection
- Pre-shipment system performance testing
This ensures that each boiler system meets industrial deployment standards before delivery.
Global Project Delivery Capability
Taiguo Boiler systems have been delivered to more than 60 countries across:
Central Asia, Southeast Asia, the Middle East, and Africa.
These deployments demonstrate long-term operational performance across different industrial environments and fuel conditions.
Dual-Brand Operational Workflow
The industrial production and delivery process follows a structured three-stage execution system, ensuring consistent quality control and efficient global project deployment.
Manufacturing Stage
Industrial boiler systems are produced at Taiguo Boiler’s manufacturing base through standardized engineering and production processes.
Engineering Stage
CNMIRACLE coordinates international project requirements and prepares system-level engineering support for overseas deployment.
Global Delivery Stage
Completed systems are delivered to international project sites for installation and operation.
Project Delivery & Engineering Responsibility
Responsibilities are clearly divided to ensure project reliability:
4.Engineering Solutions for Diverse Global Energy Markets
The WNS series is engineered to adapt to local fuel availability and regulatory frameworks. Whether you are operating in Central Asia, Southeast Asia, or the Middle East, our systems provide the reliability required for long-term industrial success.
1. Uzbekistan & Central Asia: Infrastructure and Textile Growth With Gas & Oil Fired Steam Boiler
In the Uzbekistan market, natural gas is the primary and most economical energy source. Our systems are optimized as a gas steam boiler for Tashkent industrial zones, where the government is prioritizing the development of localized garment production. We provide the essential EAC certification required for seamless customs clearance and safety compliance. By utilizing the Khorgos route for rail and road transport, we ensure that every Uzbekistan textile factory boiler project is delivered on time, complete with localized installation support.
Explore our engineering footprints: Check our active Gas Boiler Installation Case in Uzbekistan to verify our onsite performance.
2. Indonesia & Southeast Asia: Food and Rubber Processing With Gas & Oil Fired Steam Boiler
For markets like Indonesia and Vietnam, humidity and fuel flexibility are the primary engineering challenges. Many facilities in this region require a dual-fuel steam boiler capable of switching between natural gas and diesel to manage supply fluctuations. Our systems act as a critical food grade steam solution for palm oil mills and rubber processing plants. By providing high-purity steam for rubber vulcanization and food sterilization, we help local founders maintain international quality standards while optimizing their Southeast Asia boiler ROI.
See our regional impact: Review our operational 3*6 t/h WNS gas fired steam Boiler Project in Bandung, Indonesia for detailed technical reference.
3. Middle East: Heavy Oil and Chemical Synthesis With Gas & Oil Fired Steam Boiler
In countries with abundant liquid fuels, such as Saudi Arabia or the UAE, we optimize our burners for heavy oil or diesel combustion. These projects often require a dedicated chemical reactor steam boiler for 24/7 industrial synthesis. Our WNS series features specialized high-temperature insulation to withstand the extreme ambient heat of the region. This ensures that every industrial chemical heating system we commission maintains its 99% thermal efficiency without compromising the structural integrity of the boiler steel.
4. Africa: Emerging Manufacturing and Mining With Gas & Oil Fired Steam Boiler
In the emerging markets of Africa, the focus is on robust engineering that is easy to maintain in remote locations. We often provide diesel-fired steam boilers for mining operations and regional food processing centers. These systems provide a reliable centralized hot water supply and high-pressure steam for mineral processing. By shipping our equipment in secure, anti-corrosion packaging, we ensure that every Africa industrial boiler project survives long-distance sea and land transit to reach its destination in perfect condition.
5.WNS Series Gas & Oil Fired Steam Boiler Selection Guide
Choosing the right boiler capacity ensures your production line runs without interruption. In the textile, food, and pharmaceutical industries, matching steam output to actual peak demand prevents energy waste. Use the technical selection matrix below to find the ideal WNS Gas & Oil Fired Steam Boiler for your plant scale.
| Factory Production Scale | Required Steam Output | Recommended WNS Model | Typical Industry Applications |
| Small Garment / Food Workshops | 1 t/h – 2 t/h | WNS1 / WNS2 | Small-scale garment pressing, brewery heating, and restaurant sterilization. |
| Medium Food & Chemical Plants | 3 t/h – 6 t/h | WNS3 / WNS4 / WNS6 | Milk pasteurization, pharmaceutical autoclaves, and chemical reactors. |
| Large Textile Mills & Feed Factories | 8 t/h – 15 t/h | WNS8 / WNS10 / WNS15 | Fabric dyeing vats, textile stenter frames, and animal feed pelleting. |
| Industrial Parks & Central Heating | 20 t/h and above | WNS20 (or SZS Series) | Large-scale centralized steam supply and heavy chemical synthesis lines. |
Fuel Comparison & Operational ROI Analysis For Gas & Oil Fired Steam Boiler
Fuel selection directly determines your monthly factory balance sheet. The WNS series features a highly adaptable combustion chamber. It supports multiple gas and liquid fuel types. This flexibility allows you to optimize your energy mix based on local market prices.
| Fuel Type | Combustion Efficiency | Fuel Consumption Rate | Monthly Operating Cost | Infrastructure Requirement |
| Pipeline Natural Gas | High (92% – 96%) | ~70 Nm³/h per ton of steam | Lowest | Requires a stable local gas pipeline network. |
| LNG (Liquefied Natural Gas) | High (92% – 96%) | ~70 Nm³/h per ton of steam | Medium | Requires onsite LNG storage tanks and vaporizers. |
| Diesel Oil | High (92% – 95%) | ~61 kg/h per ton of steam | High | Requires oil storage tanks and regular fuel truck deliveries. |
Why WNS Gas Boilers Deliver Higher Returns
Compared to diesel-fired systems, natural gas combustion reduces fuel costs by up to 30% to 40% depending on local tariffs. Gas combustion produces no soot or carbon build-up. Consequently, the boiler tubes remain clean for longer periods. This clean operation maintains high heat transfer efficiency and extends the service life of your burner.
6.WNS Series Gas & Oil Fired Steam Boiler: Engineering Excellence for Global Industry
Our WNS series Gas & Oil Fired Steam Boiler has been successfully deployed in numerous international projects. As a result, we have a proven track record in diverse industrial sectors. We provide a stable thermal environment that ensures consistent temperatures even during peak demand periods across thousands of outlets.
1. Optimized Energy Savings & Waste Heat Recovery With Gas & Oil Fired Steam Boiler
We prioritize operational efficiency to maximize your factory’s profit margins.
- Waste Heat Recovery: We integrate finned tube economizers to recover thermal energy from exhaust gases.
- Fuel Reduction: This technology reduces annual fuel consumption by up to 10% to 15%.
- Low Emissions: Our optimized burner designs ensure complete combustion and significantly lower NOx emissions.
- Thermal Efficiency: The three-pass wet-back structure allows our boilers to achieve an efficiency rate of 98% to 99%.
2. Market Success: Reliable Performance in Extreme Climates With Gas & Oil Fired Steam Boiler
We understand the geographical challenges of our global partners, particularly in the Central Asian market.
- Climate Optimization: We have optimized our boilers for extreme temperature fluctuations to ensure reliable performance in Uzbekistan and Kazakhstan.
- Cold-Start Efficiency: Our specialized insulation prevents heat loss, ensuring a rapid startup even in sub-zero environments.
- Regional Compliance: Every unit for this region includes the specialized EAC certification required for safety and customs approval.
- Proven Durability: We use thick-wall boiler steel to maintain structural integrity during 24/7 continuous operations.
3. Intelligent Remote Monitoring & Global Support With Gas & Oil Fired Steam Boiler
We leverage digital technology to eliminate the distance between our factory and your production site.
- IoT Diagnostics: Every unit supports IoT-enabled remote diagnostics for real-time performance tracking.
- 24/7 Technical Support: Our engineers provide instant technical diagnostics worldwide to prevent unplanned downtime.
- Data-Driven Maintenance: The monitoring system alerts your team to necessary maintenance tasks before they become critical issues.
- Remote Commissioning: We utilize data links to assist in the initial calibration and startup of your WNS series gas steam boiler.
7.Solutions & Support: Addressing Global Partner Concerns
Local Operational Problems & Engineering Solutions
Industrial boilers face different challenges in different regions. Extreme climates and grid instabilities can cause unexpected shutdowns. Our engineering team designs specific hardware upgrades to solve these real-world local problems.
Problem 1: Winter Natural Gas Pressure Drops
- The Challenge: During freezing winter months, municipal gas grids face high domestic heating demands. This causes gas pressure in industrial zones to drop below the minimum burner requirement, leading to sudden factory shutdowns.
- Our Solution: We configure the WNS Gas & Oil Fired Steam Boiler with an oversized, dual-stage gas regulation train. For regions with severe gas shortages, we strongly recommend our Gas/Diesel Dual-Fuel Burner. If gas pressure drops, you can switch the system to diesel operation within minutes to protect your production line.
Problem 2: Strict Local Environmental Low-NOx Audits
- The Challenge: Major industrial cities continue to tighten air pollution standards. Standard industrial burners exceed nitrogen oxide (NOx) emission limits, resulting in heavy fines or forced closures.
- Our Solution: Every WNS Gas & Oil Fired Steam Boiler utilizes a large-volume corrugated furnace coupled with an international brand Low-NOx Burner (such as Baltur, Riello, or Oilon). This design achieves flue gas recirculation (FGR) and keeps NOx emissions safely below 30mg/m³, passing any local environmental audit easily.
Problem 3: Hard Water Scalling in Remote Industrial Zones
- The Challenge: Local underground water in many industrial areas contains high levels of calcium and magnesium. Feeding this hard water directly into the boiler creates heavy scale build-up, which ruins heat efficiency and causes tube bursts.
- Our Solution: We deliver a fully automated Reverse Osmosis (RO) Water Softener System with every WNS Gas & Oil Fired Steam Boiler package. The system automatically removes hardness ions, ensuring feed-water hardness stays below 0.03 mmol/L to keep the internal boiler tubes pristine.
8.ROI Analysis: The Economic Value of WNS Technology by Capacity
Investing in a WNS system is a strategic decision to optimize long-term operational costs. The Return on Investment (ROI) scales significantly with the boiler’s capacity, as larger units offer greater opportunities for waste heat recovery and fuel optimization.
1. Small Capacity (1 Ton – 2 Ton): The Efficiency Starter
Ideal for small-scale garment factories, laundries, or food workshops.
- Operational Impact: These units replace inefficient, manual-fed boilers with fully automated natural gas or diesel burners.
- Fuel Savings: By utilizing a compact economizer, small facilities can reduce energy waste by 8% to 10%.
- ROI Performance: With lower initial capital expenditure, these units typically reach their break-even point within 10 to 14 months.
- Strategic Value: Perfect for founders seeking to modernize production with a pharmaceutical grade steam solution or small-batch food processing.
2. Medium Capacity (4 Ton – 10 Ton): The Industrial Workhorse
The most popular choice for Uzbekistan textile factory boiler projects and medium-sized chemical plants.
- Operational Impact: These units handle variable steam loads with high precision via intelligent PLC controls.
- Fuel Savings: The integration of finned tube economizers and air pre-heaters reduces annual fuel consumption by 12% to 15%.
- ROI Performance: For a 4-ton unit operating 12 hours a day, the fuel savings alone can exceed $35,000 annually. Most medium-capacity projects achieve full ROI within 15 to 18 months.
- Strategic Value: Provides a reliable packaging plant energy solution or textile dyeing steam boiler for continuous 24/7 production cycles.
3. Large Capacity (15 Ton – 20 Ton): The Infrastructure Giant
Designed for large AAC plant steam boiler operations, paper mills, and centralized heating hubs.
- Operational Impact: Massive steam volumes are delivered with a high dryness fraction, which is critical for corrugated board production or heavy industrial curing.
- Fuel Savings: Large-scale heat recovery systems capture enough exhaust energy to pre-heat thousands of liters of feed water daily, maximizing paper production ROI.
- ROI Performance: While the initial investment is higher, the sheer volume of fuel saved results in the highest long-term profit margins. These units often save over $80,000 to $120,000 in energy costs per year, reaching full payback in 18 to 24 months.
- Strategic Value: Acts as a high-output industrial chemical heating system or centralized hotel central heating system for massive resort complexes.
Strategic Summary: ROI Benchmarks by Boiler Tonnage
| Boiler Capacity | Typical Industry | Annual Fuel Savings (Est.) | Payback Period |
| 1-2 Ton | Laundry / Food Workshop | $8,000 – $15,000 | 10 – 14 Months |
| 4-10 Ton | Textiles / Chemicals | $30,000 – $65,000 | 15 – 18 Months |
| 15-20 Ton | Paper Mills / AAC Plants | $85,000 – $130,000 | 18 – 24 Months |
9.WNS Boiler Delivery & Global Procurement Standards
As an industrial manufacturer with deep export experience, we understand that purchasing a boiler involves complex logistics, customs compliance, and strict onsite installation requirements. We ensure every packaged WNS boiler meets the highest international shipping and safety standards.
- Pre-Tested Package Delivery: We assemble and strictly pressure-test the entire WNS boiler house package inside our factory before dispatch. This plug-and-play modular setup cuts onsite installation time by up to 50% for your local engineering team.
- Customs & Certification Readiness: Our technical documentation fully supports smooth customs clearance. We provide necessary alignments for local regulatory frameworks, including Uzstandard (for Uzbekistan), SNI (for Indonesia), and general GOST credentials, preventing painful border delays.
- Robust Export Packing: We secure the boiler shell, Siemens PLC control panels, and delicate burner elements using heavy-duty waterproofing, anti-corrosion films, and reinforced steel wire tie-downs inside open-top containers or flat racks.
- Long-Term Lifecycle Support: Every factory shipment comes with a comprehensive 12-month structural warranty, a complete set of operation manuals in English/Russian, and lifetime technical support via remote video troubleshooting.
10.Technical FAQ for WNS Series Gas & Oil Fired Steam Boiler
What are the main advantages of the WNS series Gas & Oil Fired Steam Boiler compared to traditional boilers?
Consequently, our WNS series features a horizontal three-pass wet-back structure that eliminates dry-back refractory damage. Moreover, this design offers higher thermal efficiency and a significantly longer service life for industrial applications.
Does Henan Taiguo Boiler hold international manufacturing certifications?
Yes, we hold the National Class-A Boiler Manufacturing License, the highest authority in China. Therefore, all our pressure vessels undergo 100% NDT (Non-Destructive Testing) and hydraulic pressure tests at 1.5 times the design pressure.
How do you ensure energy efficiency and low emissions for overseas projects?
We integrate advanced finned tube economizers to recover waste heat effectively. As a result, our boilers achieve thermal efficiency up to 98% while maintaining NOx emissions below 30mg/m³ to meet global environmental standards.
Can you provide technical support for clients in Uzbekistan and Kazakhstan?
Absolutely. Through our dedicated Overseas Department, we provide specialized logistics via the Khorgos route. Furthermore, our IoT-enabled monitoring system allows our engineers to offer 24/7 remote diagnostics and on-site installation guidance.
What is the lead time for a customized WNS steam boiler?
Typically, our manufacturing cycle ranges from 20 to 35 days depending on the specifications. Consequently, our streamlined production process ensures that your thermal energy system is delivered and operational as quickly as possible.
How does the “Wet-Back” design benefit my long-term ROI?
The wet-back structure ensures the rear smoke chamber is submerged in water. This prevents the rear tube plate from overheating and cracking, significantly extending the 20-year service life of your asset.
Can I switch between Natural Gas and Diesel during operation?
Yes. We equip our boilers with dual-fuel burners that allow for seamless switching. This provides a critical packaging plant energy solution in regions with fluctuating fuel availability.
What certifications do you provide for the Uzbekistan market?
We manage all customs export documentation and provide the necessary EAC compliance certificates. This ensures your boiler passes local safety inspections without any delays.
Get the Complete WNS Series Gas & Oil Fired Steam Boiler Technical Portfolio
Accelerate your project planning with our official technical documentation. By requesting our digital catalog, you will receive exclusive access to the following resources:
- Detailed Foundation Drawings: Accurate structural dimensions to facilitate your facility’s civil engineering prep.
- Fuel Consumption Analysis: Comprehensive data on gas and oil usage to help you calculate annual operational ROI.
- A-Class Safety Certification: Verified copies of our National Manufacturing Licenses and ISO quality protocols.
- Customization Options: Technical insights into PLC control systems and ultra-low NOx burner configurations.
📩 Request Your Portfolio Now
Request a customized project drawing from our Engineering Team.
Besides steam solutions, we also provide Thermal Oil Heaters for asphalt heating applications
