CNMIRACLE provides SZL and DZL series biomass and coal fired steam boiler systems for global industrial applications requiring reliable and cost-effective steam generation.
These boiler systems are engineered and manufactured at the Henan Taiguo Boiler production base, where strict quality control procedures and professional pressure vessel fabrication standards ensure long-term operational reliability.
The SZL and DZL series adopt advanced grate combustion technologies capable of efficiently utilizing various solid fuels, including coal, wood chips, biomass pellets, rice husks, and other agricultural residues.
Their flexible fuel adaptability and stable combustion performance make them ideal thermal solutions for factories in Africa, Central Asia, Southeast Asia, and other regions with abundant local solid fuel resources.
By reducing dependence on expensive fossil fuels, these biomass and coal fired steam boiler systems help industrial users lower operating costs and achieve a faster return on investment.
1. Key Technical Specifications of SZL Biomass fired Boiler
We provide both packaged (DZL) and shop-assembled (SZL Biomass fired Boiler) structures to suit your installation needs. Furthermore, our boilers feature advanced dust collectors to meet local environmental requirements.

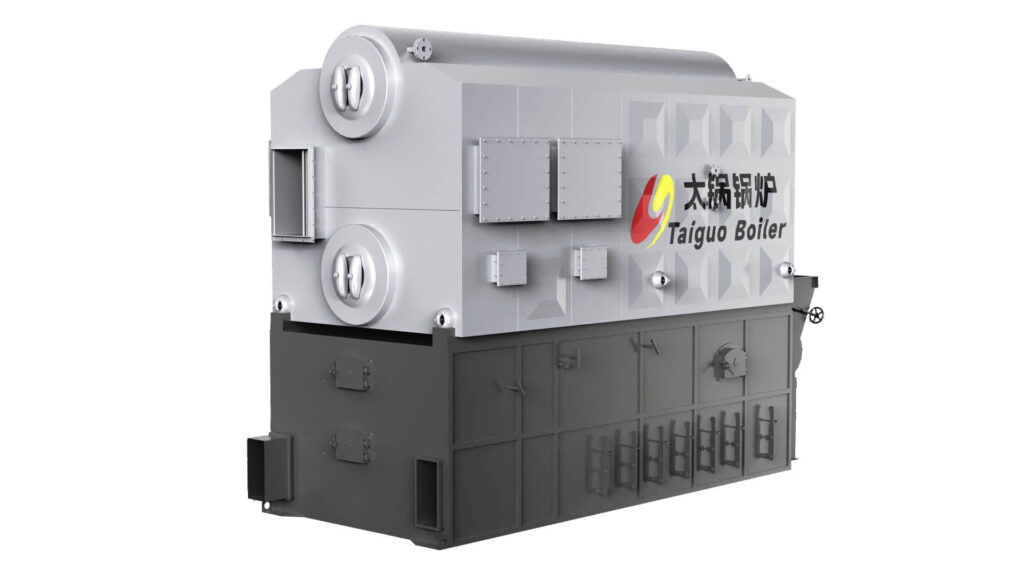

The SZL series is a double-drum water tube chain grate steam boiler, ideal for medium to large steam loads and continuous industrial production. Typical industrial sizes range from 4–40 t/h, with strong compatibility for biomass and coal fuels.
The DZL series is a single-drum quick-assembly chain grate steam boiler, widely used for compact boiler rooms and medium-sized factories, commonly covering 2–10 t/h applications.
Both systems are designed for reliable combustion of biomass pellets /rice husksawdust/bagasse/wood chips/palm shell/bituminous coal/anthracite/mixed solid fuels
Technical Comparison: SZL Biomass fired Boiler vs. DZL Series
To help you select the most suitable model, our engineers have summarized the key differences below.
| Feature | DZL Series (Packaged) | SZL Series (Assembled) |
|---|---|---|
| Capacity Range | 1 – 10 t/h | 4 – 40 t/h |
| Main Structure | Single drum, fire-tube | Double drum, water-tube |
| Installation Time | Short (Plug-and-play) | Longer (On-site assembly) |
| Maintenance | Easy access to fire tubes | Comprehensive water-wall cleaning |
| Primary Use | Small & Medium Enterprises | Large-scale Industrial Plants |
This fuel flexibility is the key reason they remain highly competitive in fuel-sensitive markets.
| Technical Parameter | Specification Detail |
|---|---|
| Steam Capacity | 1 t/h – 40 t/h (Customizable) |
| Fuel Types | Coal, Wood Chips, Rice Husk, Pellets, Straw |
| Structure | Single/Double Drum Water-Tube or Fire-Tube |
| Thermal Efficiency | ≥ 83% – 88% (Based on fuel type) |
| Applications | Rice Mills, Sugar Factories, Mining, Processing |
SZL Series Biomass/Coal Fired Chain Grate Steam Boiler Technical Parameters
| Model | Capacity (t/h) | Pressure (MPa) | Thermal Eff. | Dim. L×W×H (m) | Weight (t) |
|---|---|---|---|---|---|
| SZL2-1.25/1.6/2.5 | 2 | 1.25 / 1.6 / 2.5 | 81% | 5.8 × 2.35 × 3.5 | 25 |
| SZL4-1.25/1.6/2.5 | 4 | 1.25 / 1.6 / 2.5 | 81% | 7.8 × 2.4 × 3.6 | 32 |
| SZL6-1.25/1.6/2.5 | 6 | 1.25 / 1.6 / 2.5 | 81% | 8.0 × 3.0 × 4.87 | 43 |
| SZL8-1.25/1.6/2.5 | 8 | 1.25 / 1.6 / 2.5 | 81% | 8.1 × 3.2 × 5.7 | 63 |
| SZL10-1.25/1.6/2.5 | 10 | 1.25 / 1.6 / 2.5 | 81% | 8.2 × 3.5 × 5.7 | 87 |
| SZL12-1.25/1.6/2.5 | 12 | 1.25 / 1.6 / 2.5 | 81% | 10.6 × 3.6 × 5.7 | 100 |
| SZL15-1.25/1.6/2.5 | 15 | 1.25 / 1.6 / 2.5 | 82% | 12.5 × 3.7 × 5.8 | 105 |
| SZL20-1.25/1.6/2.5 | 20 | 1.25 / 1.6 / 2.5 | 82% | 13.8 × 4.2 × 5.8 | 140 |
| SZL25-1.25/1.6/2.5 | 25 | 1.25 / 1.6 / 2.5 | 82% | 15.6 × 5.0 × 6.135 | 170 |
| SZL30-1.25/1.6/2.5 | 30 | 1.25 / 1.6 / 2.5 | 82% | 17.7 × 8.5 × 9.5 | 210 |
DZL Series Biomass/Coal Fired Single-Drum Steam Boiler Technical Parameters
| Model | Capacity (t/h) | Pressure (MPa) | Thermal Eff. | Fuel Cons. (kg/h) | Dim. L×W×H (m) | Weight (t) |
|---|---|---|---|---|---|---|
| DZL1-0.7/1.0/1.25-T | 1 | 0.7 / 1.0 / 1.25 | 82% | 200 | 5.1 × 2.2 × 3.0 | 17 |
| DZL2-0.7/1.0/1.25-T | 2 | 0.7 / 1.0 / 1.25 | 82% | 400 | 5.5 × 2.3 × 3.3 | 23 |
| DZL4-1.25/1.6-T | 4 | 1.25 / 1.6 | 82% | 800 | 6.6 × 2.6 × 3.6 | 25 |
| DZL6-1.25/1.6-T | 6 | 1.25 / 1.6 | 82% | 1200 | 8.2 × 2.9 × 3.8 | 40 |
| DZL8-1.25/1.6-T | 8 | 1.25 / 1.6 | 82% | 1600 | 8.1 × 3.1 × 3.8 | 53 |
| DZL10-1.25/1.6-T | 10 | 1.25 / 1.6 | 82% | 2010 | Upper: 7.7 × 3.2 × 3.6 Lower: 8.6 × 3.2 × 6.735 |
72 |
Note:
- Parameters are for reference only; any specific updates or modifications should follow the official factory technical data.
- Customized boiler designs are available based on specific customer requirements and different biomass fuel types.
Confused About Your Boiler Capacity Calculation?
Don’t guess your plant’s steam or heating requirements. Our thermal engineers can provide a precise capacity calculation and piping layout design tailored to your industry at zero cost.
2.Why Factories Choose SZL/DZL Biomass Boilers to Save 30% Fuel Cost
1. Low-Cost Solid Fuel Replaces Expensive Gas & Diesel
The biggest operational saving comes from direct fuel substitution. Many factories currently rely on expensive diesel, LNG, LPG, or pipeline gas. Instead, our systems allow you to burn low-cost local solid fuels.
Our equipment easily processes:
- Rice husk and agricultural residue.
- Wood waste and biomass pellets.
- Low-grade coal and palm fiber.
- Corn cobs and organic manufacturing waste.
Depending on local fuel prices, this shift reduces steam production costs by 20–30% or more. Consequently, this solution delivers massive financial relief for rice mills, textile clusters, plywood factories, and food drying plants.
2. Advanced Chain Grate Systems Maximize Burnout Rates
Most standard biomass boilers suffer from incomplete combustion. This flaw creates heavy black smoke, wastes 15% of your fuel, and clogs internal pipes.
To solve this industry pain point, the Taiguo SZL and DZL series feature an advanced Small-Flake Chain Grate. This precision grate ensures completely even fuel distribution. Furthermore, it eliminates the leakage of unburned fuel particles entirely.
We combine this structure with a Variable Frequency Drive (VFD) system. Therefore, the grate speed adjusts to your actual steam load automatically. Both our SZL and DZL series optimize fuel residence time, air distribution, slag discharge, and ash handling. This smart combustion stability ensures full fuel utilization even when burning high-moisture biomass.
3. Excellent Heat Transfer & Maximum Thermal Efficiency
The structural design of our equipment guarantees excellent heat absorption and minimal thermal loss.
- The SZL Series: This double-drum water tube structure utilizes a large radiant heating surface and a membrane water wall. This setup creates stronger water circulation and delivers superior steam quality under rapid load changes.
- The DZL Series: This design uses advanced threaded smoke tubes and optimized furnace arches. This layout successfully accelerates heat absorption and minimizes exhaust waste.
When equipped with economizers and dust collectors, our industrial models achieve around 86–88%+ thermal efficiency consistently.
4. Double-Drum Architecture Secures Heavy-Duty Stability
For heavy industries requiring high-pressure steam between 1.25MPa and 2.5MPa, our SZL double-drum water-tube design remains the gold standard.
The double-drum engineering provides a massive internal steam-water separation space. Consequently, the system delivers 99% dry steam to your production line. This high purity protects downstream turbines and processing machinery from dangerous Water Hammer damage. It perfectly withstands the grueling 24/7 continuous cycles of chemical refineries and palm oil plants.
5. Multi-Stage Dust Collection Guarantees 2026 Environmental Compliance
The biggest fear of coal and biomass boiler owners is failing a sudden government environmental audit.
To protect your business, we bundle every SZL and DZL system with a high-performance Multi-Cyclone Dust Collector. For sensitive regions, we integrate an advanced Electrostatic Precipitator (ESP).
Our multi-stage filtration reduces particulate matter (PM) emissions significantly. Therefore, our emission profiles comfortably meet the strictest 2026 environmental standards of DENR (Philippines) and MOM (Indonesia). You get the massive economic savings of solid fuel combined with the total cleanliness of a modern gas plant.
Summary: Excellent ROI for Global Energy Markets
The SZL and DZL series coal and biomass steam boilers deliver a proven solution for global industrial buyers. They combine lower fuel costs, wide fuel adaptability, stable steam output, and low maintenance requirements.
For textile plants, paper mills, and building material companies, these systems provide the fastest path to cut steam costs by up to 30%. Whether your project sits in Uzbekistan, Kazakhstan, Southeast Asia, Africa, or the Middle East, CNMIRACLE ensures reliable industrial steam delivery with an exceptional ROI.
3.SZL/DZL Series Boiler Configuration & System Description
Taiguo Boiler delivers complete turnkey solid-fuel energy solutions. We do not just sell a bare boiler block. Our team configures fully integrated, high-efficiency biomass and coal systems to save 30% fuel costs for global B2B buyers.
1. Standard Configuration (Continuous Feeding Package)For SZL Biomass fired Boiler
Our standard configuration includes heavy-duty automatic mechanical components. We guarantee stable combustion and continuous ash removal after correct installation.
- Boiler Proper (Body): Robust water-fire tube (DZL) or double-drum (SZL) structure. It features high-density refractory insulation lining.
- Chain Grate Stoker: Automated traveling grate system. It ensures uniform fuel distribution and precise speed adjustments.
- Fuel Feeding Conveyor: Heavy-duty scraper or bucket elevator. It transfers coal or biomass pellets into the hopper smoothly.
- Forced Draft Fan (FDF): Primary combustion air blower. It supplies oxygen precisely through independent under-grate air chambers.
- Induced Draft Fan (IDF): Powerful exhaust ventilation fan. It maintains optimal negative furnace pressure for operational safety.
- Automatic Slag Discharger: Continuous screw or scraper extractor. It removes hot ash and combustion slag automatically.
2. Optional Configuration (Advanced Efficiency & Eco-Upgrades) For SZL Biomass fired Boiler
We offer specialized auxiliary upgrades. These additions maximize energy extraction from low-cost biomass fuels and meet strict regional emission rules.
- Cast Iron Economizer: Recovers residual heat from high-temperature flue gases to preheat boiler feed water. Benefit: Boosts thermal efficiency and saves up to 10% more fuel.
- Biomass Multi-Cyclone Dust Collector: Utilizes centrifugal force to separate large soot particles from flue gas. Benefit: Prevents heavy smoke and protects secondary air filters.
- Industrial Bag Filter (Baghouse): Advanced fabric filtration unit that captures 99.9% of ultra-fine dust particles. Benefit: Lowers particulate emissions below 30mg/m³ to satisfy environmental inspections.
- Grate Speed Inverter Panel: Integrates variable frequency drives (VFD) for the chain grate and draft fans. Benefit: Optimizes air-to-fuel ratios automatically and cuts electricity consumption significantly.
- Pneumatic Secondary Air System: Injector nozzles that blow high-speed air directly into the combustion arch. Benefit: Creates turbulent mixing to burn volatile gases completely, saving massive fuel.
- Automatic Soot Blower: Timed steam or acoustic wave cleansers for internal tube surfaces. Benefit: Removes ash deposits dynamically to maintain peak heat transfer rates.

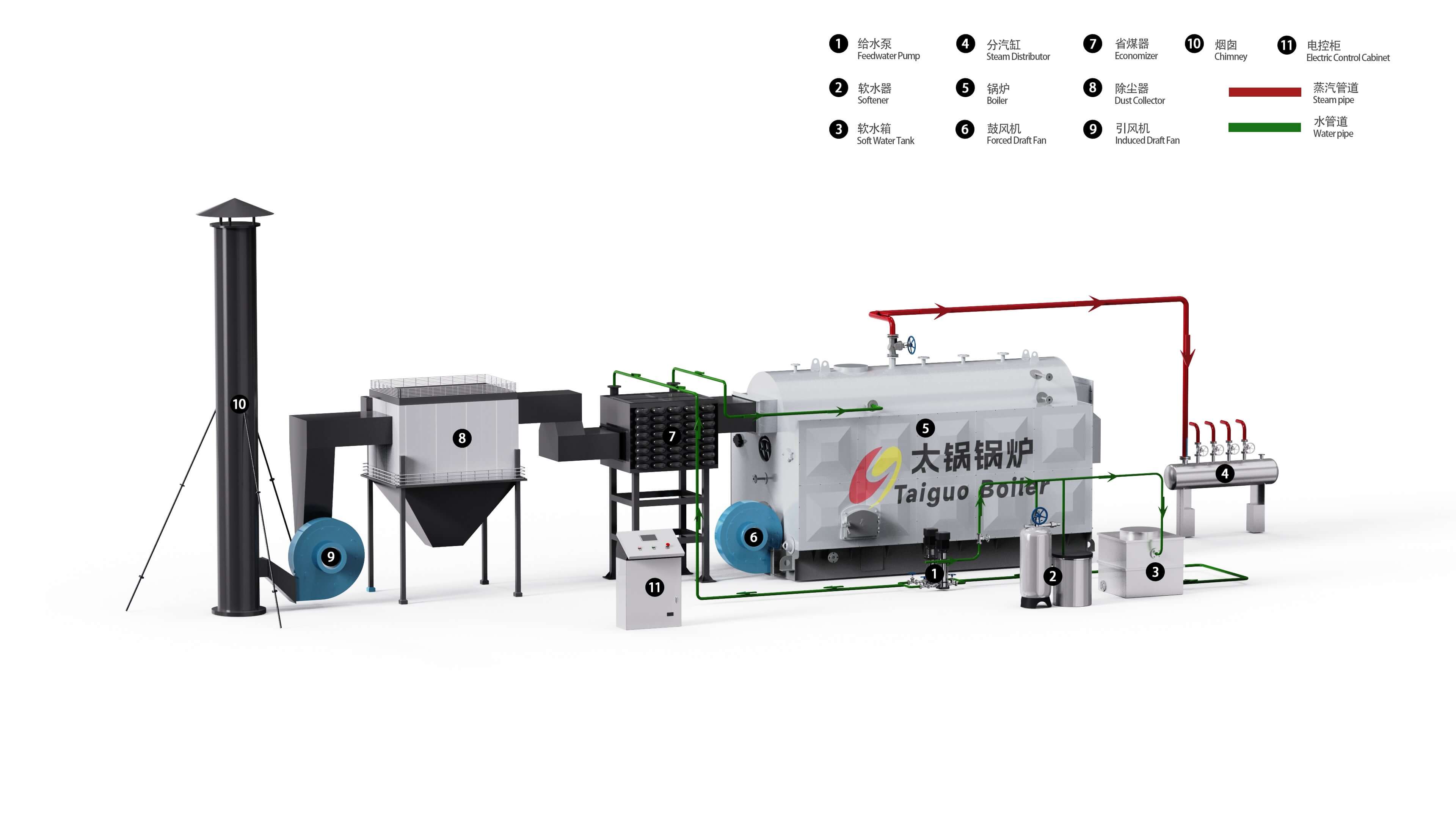

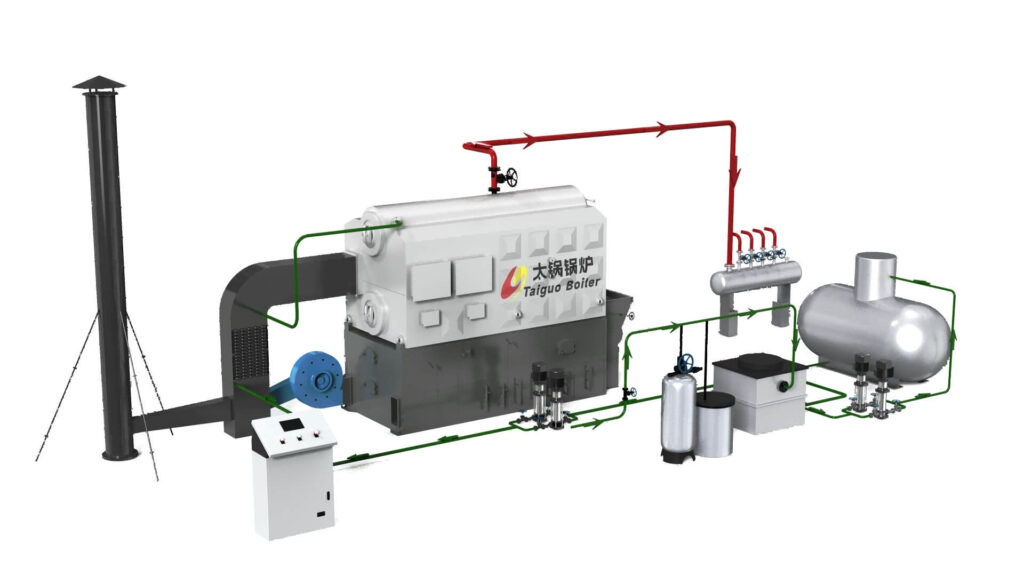

3. Complete Solid-Fuel Boiler Room Layout Blueprint For SZL Biomass fired Boiler
We design full custom material-handling layouts. The technical flowchart below shows how our system processes biomass or coal into clean steam:
Fuel Storage ➔ Feeding Conveyor ➔ Chain Grate Boiler ➔ Multi-Cyclone Collector ➔ Baghouse Filter ➔ IDF ➔ Chimney
4. Customized Engineering by Target Industries For SZL Biomass fired Boiler
Different processing sectors utilize diverse biomass waste types (rice husks, wood chips, bagasse). We calibrate our grate systems to match your local fuel properties perfectly:
- Rice Milling & Agricultural Processing: Custom Deep-Hopper Feeders + Multi-Cyclone Separator + Cast Iron Economizer. Rice husk has low bulk density. Our customized feeding throat prevents fuel bridging and ensures constant steam pressure.
- Wood Processing & Furniture Factories: Pneumatic Over-Fire Air Jets + Heavy-Duty Slag Extractors. Wood scrap burns rapidly with high volatile release. Secondary air injection captures this energy to save 30% fuel costs.
- Centralized Distant Heating Plants: VFD Control Console + Large-Scale Baghouse Filtration System + Dual Water Pumps. Continuous heating requires absolute grid reliability. Our heavy-duty dust filtration guarantees zero environmental downtime.
5. Heavy-Duty Export Package for Global Projects For SZL Biomass fired Boiler
We understand the logistics and assembly challenges of overseas solid-fuel projects. Taiguo Factory provides an exclusive export support package to ensure flawless onsite mechanical integration:
- Heavy Wearable Mechanical Kit: Includes replacement chain grate links, drive gears, furnace door gaskets, and bearing blocks for two years.
- Intuitive English Control Panel: All VFD parameter screens, temperature gauges, and safety alarm indicators feature clear English markings.
- Comprehensive Civil Engineering Layouts: We supply precision structural load drawings, flue duct routing schematics, and concrete foundation blueprints.
- Onsite Masonry & Technical Direction: We provide detailed instructions for internal firebrick installation and offer real-time video commissioning guidance.
- Custom Customs Documentation: We deliver full GOST/EAC conformity certificates to streamline customs clearance in Central Asian markets (Uzbekistan).
6. Required Auxiliary Equipment Checklist For SZL Biomass fired Boiler
| Auxiliary Equipment Name | Necessity Level for SZL/DZL Series | Taiguo Factory Supply Capability |
| Forced & Induced Draft Fans | 100% Mandatory (Combustion air) | High-Efficiency Industrial Fans Included |
| Multi-Cyclone Dust Collector | 100% Mandatory (Basic filtration) | Heavy-Gauge Carbon Steel Units Supplied |
| Water Softener System | 100% Mandatory (Scale prevention) | Automatic Ion Exchanger Skids Delivered |
| Automatic Ash Discharger | 100% Mandatory (Labor saving) | Custom Length to Match Your Ash Pit |
| Industrial Bag Filter (Baghouse) | Highly Recommended (Eco-compliance) | Custom Sized to Match Fuel Emission Metrics |
4.Powering Global Production with Tailored Steam Solutions
The DZL (Single Drum) and SZL Biomass fired Boiler(Double Drum) series represent the backbone of heavy industrial energy. These boilers excel in regions like Uzbekistan and Southeast Asia, where balancing fuel costs with reliable output is the primary goal for enterprise founders.
1. Textile & Garment Manufacturing Excellence With SZL Biomass fired Boiler
Our biomass-fired systems are essential for modern textile dyeing steam boiler applications. The production cycle typically begins with Fabric Desizing and Scouring, moving through Bleaching and Dyeing before reaching the final Drying & Setting stage.
Taiguo boilers provide the constant, high-pressure steam required for heat exchangers in dyeing vats and stenter machine cylinders. By implementing an integrated fabric processing steam solution, factories can achieve perfect color consistency. Furthermore, using on-site fabric waste can significantly improve your garment factory boiler ROI, often reaching full payback within 18 months.
2. High-Efficiency Food & Beverage Processing With SZL Biomass fired Boiler
Steam purity and operational uptime are non-negotiable for food grade steam requirements. The typical workflow includes Raw Material Cleaning, Blanching, and Concentration, followed by critical Sterilization and Packaging.
Our SZS and SZL double-drum structures provide the massive steam space needed for a food sterilization steam boiler. This design prevents pressure drops during peak sterilization loads in autoclaves. Whether you are running a palm oil mill steam solution in Indonesia or a beverage factory heating system in Vietnam, our boilers ensure 100% compliance with international safety standards.
3. Wood Processing & Paper Mill Energy Recovery With SZL Biomass fired Boiler
The wood industry is unique because it generates its own fuel during Timber Debarking, Sawing, and Finishing. Steam is the primary energy source for Kiln Drying and the specialized Wood Preservation (Full-Cell Process).
A dedicated wood drying kiln steam boiler allows you to manage moisture levels with extreme precision. For larger operations, our paper mill biomass boiler systems utilize sawdust and bark to eliminate fuel purchase costs. This timber treatment plant heating strategy turns production waste into a high-value energy asset, maximizing your daily net profit.
4. Precision Chemical & Pharmaceutical Production With SZL Biomass fired Boiler
Chemical reactors require 24/7 reliability and a stable thermal environment for Reactant Pre-heating, Hydrothermal Reaction, and Distillation.
Our automated DZL systems act as the perfect chemical reactor steam boiler, managing the complex heat needs of Crystallization and Drying. When a plant requires a pharmaceutical grade steam solution, Taiguo provides the necessary control precision to prevent batch failures. Every industrial chemical heating system we commission is engineered for a 20-year service life, even under continuous high-load operations.
5. Hotel & Bathing Industry: Centralized Thermal Comfort With SZL Biomass fired Boiler
Luxury hotels and large-scale bathing centers require a reliable, 24/7 supply of both steam and hot water to maintain guest satisfaction. The typical workflow begins with Cold Water Intake and Softening, followed by Heat Exchange to provide a centralized hot water supply for guest rooms and spa facilities.
Our boilers act as the heart of the hotel central heating system, providing consistent thermal energy for HVAC Space Heating and Laundry Sterilization. A dedicated hotel steam boiler for laundry ensures rapid drying cycles, while our high-efficiency bath center hot water boiler maintains stable temperatures across thousands of outlets. Utilizing our DZL series in urban centers provides a nearly 98% efficiency rate, significantly lowering monthly utility expenses.
6. Construction Materials Industry: High-Pressure Curing Precision With SZL Biomass fired Boiler
The production of high-strength building materials, such as AAC blocks and concrete panels, relies on the precise control of high-pressure saturated steam. The process flow involves Raw Material Mixing, Molding, and Vacuum Air Removal, leading into the critical High-Pressure Curing phase inside the autoclave.
In this sector, the AAC plant steam boiler manages the vital hydrothermal reaction that gives blocks their structural integrity. Furthermore, a specialized concrete curing steam solution ensures that precast elements reach their maximum load-bearing capacity without internal cracking. For larger plants, our SZL series double drum chaingrate boilers delivers the rapid steam generation needed for multiple autoclave cycles, maximizing daily factory throughput.
5.SZL Biomass fired Boiler & DZL Series Boiler Selection Guide
Switching to solid biomass fuels or coal requires an optimized combustion chamber designed for solid fuel profiles. Our DZL series offers a compact, single-drum package for quick installation, while the SZL Biomass fired Boiler series utilizes a heavy-duty double-drum setup for larger steam loads. Use the checklist below to find the ideal solid-fuel configuration for your plant.
Selection Strategy: DZL vs. SZL Biomass fired Boiler for Your Industry
| Plant Scale & Steam Demand | Recommended Model | Structure Type | Fuel Feeding & Grate Optimization |
| Small-to-Medium Factory (1 t/h – 10 t/h) | DZL Series | Single-Drum Horizontal | Compact package layout with automatic screw feeding and traveling chain grate. |
| Medium-to-Large Factory (2 t/h – 10 t/h) | SZL Biomass fired Boiler Series (Shop-Assembled) | Double-Drum Water Tube | Two-part assembly (upper proper, lower grate) allowing flexible site transport. |
| Heavy Industrial Groups (10 t/h – 30 t/h) | SZL Series (Field-Erected) | Double-Drum Water Tube | Heavy-duty large-scale chain grate with localized air zoning for high-capacity combustion. |
SZL Biomass fired Boiler vs DZL: Which One Fits Your Factory?
| Feature | SZL Series | DZL Series |
|---|---|---|
| Structure | Double Drum Water Tube | Single Drum Quick Assembly |
| Capacity | 4–35 t/h | 2–10 t/h |
| Best For | Large continuous production | Medium factory boiler rooms |
| Fuel Adaptability | Excellent | Very Good |
| Steam Stability | Excellent | Good |
| Installation | Assembly | Quick Loading |
| Expansion Potential | High | Medium |
6.Fuel Flexibility & Operational Cost Analysis (Save 30% Fuel Cost)
Solid fuel boilers provide the absolute lowest operational costs in regions without massive natural gas pipeline grids. Our chain grate systems feature specialized multi-stage air distribution, pushing solid fuel thermal efficiency up to 81% to 82%. This high performance slashes your daily fuel bills drastically.
| Solid Fuel Choice | Fuel Heat Value | Thermal Efficiency | Onsite Storage Requirement | Ash & Cleaning Frequency |
| Wood Pellets / Briquettes | High (~4000 kcal/kg) | 82% | Low (Requires dry storage sheds) | Low ash content, easily managed automatic discharge. |
| Agricultural Waste (Rice Husks, Shells) | Variable (~3500 kcal/kg) | 81% | High (Requires large-volume feeding hoppers) | Medium ash content, continuous grate movement required. |
| Industrial Bituminous Coal | High (~5500 kcal/kg) | 81% | Medium (Standard outdoor coal yard) | High ash content, requires integrated slag conveyors. |
Why SZL/DZL Delivers Better ROI Than Gas Boilers
For many factories, the main comparison is not boiler price—but 5-year operating cost.
| Cost Factor | Gas Boiler | SZL/DZL Biomass |
|---|---|---|
| Fuel Cost | High | Low |
| Fuel Source | Imported / pipeline | Local waste fuel |
| ROI Speed | Medium | Fast |
| Fuel Price Risk | High | Lower |
| Payback | 18–30 months | 8–18 months |
ROI Case Study: Biomass vs. Diesel
Let’s look at a 6-ton project for a Paper Mill in Namangan:
- Previous Energy Source: Industrial Diesel.
- New Energy Source: Local Wood Pellets (Biomass).
- Monthly Savings: $8,500 USD in fuel overhead.
- The “Zero-Cost” Payback: The savings alone covered the initial investment of the SZL boiler in under 10 months.
How We Achieve a 30% Reduction in Fuel Costs
Compared to diesel or electricity-driven heating loops, utilizing raw agricultural waste or locally sourced bituminous coal lowers your monthly thermal utility expenses by 30% to 50%. Our factory integrates specialized tail-finned economizers and preheaters to capture flue gas heat. This engineering design ensures your investment achieves full capital payback within 10 to 14 months.
Want to See Exactly How Much You Can Save?
Tell us your current fuel type and local energy tariffs. We will generate a detailed fuel consumption report and calculate your exact capital payback period (ROI) within 24 hours.
7.Global Fuel Flexibility: Adapting to Local Energy Resources
Taiguo DZL and SZL Biomass fired Boiler are engineered to provide maximum fuel flexibility. We customize our grate systems to ensure high thermal efficiency based on the specific biomass or coal types available in your region.
1. SZL Biomass fired Boiler For Central Asia: Robust Coal & Agricultural Waste Solutions
In countries like Uzbekistan and Kazakhstan, we focus on high-output systems that utilize local solid fuels.
- Coal & Mixed Fuels: Our boilers are designed to handle local coal varieties with stable combustion.
- Cotton Stalk Utilization: We provide specialized feeding systems for cotton stalk biomass, turning agricultural byproducts into industrial steam.
- Wood Residue: Our chain grate designs efficiently process wood residue from local timber processing facilities.
2. Southeast Asia: Tropical Biomass & Plantation Waste
For markets such as Indonesia, Vietnam, and Thailand, we leverage the abundance of agricultural and plantation waste.
- Rice Husk: We offer dedicated rice husk combustion technology to support local food processing plants.
- Palm Shell & Bagasse: Our SZL series is ideal for large-scale palm shell or bagasse power generation in sugar and oil mills.
- Coconut Shell: We customize the furnace volume to manage the high heat intensity of coconut shell fuel.
3. Africa: Diversified Crop Waste & Charcoal Residue
In emerging African markets, reliability and fuel versatility are the top priorities for enterprise owners.
- Charcoal Residue: We provide robust grate systems that can utilize charcoal residue to lower fuel costs.
- Wood Chips: Our boilers are a popular choice for wood chips heating in local timber and furniture factories.
- Crop Waste: We engineer our systems to handle diverse crop waste, ensuring stable steam output for regional sterilization and processing.
4. Middle East: Integrated Coal & Pellet Systems
In regions with developing biomass markets, we offer flexible hybrid solutions.
Industrial Wood Scraps: We help factories recycle industrial wood scraps into thermal energy, significantly improving the overall factory ROI.
Mixed Coal + Biomass Pellets: Our systems support a mixed coal + biomass pellets strategy to balance cost and environmental compliance.
8.Local Operational Problems & Engineering Solutions
Combusting biomass or coal can introduce real-world technical headaches, including grate binding, fuel ash clinkering, and strict local emission penalties. We solve these problems through robust mechanical engineering.
Problem 1: Fuel Clinkering and Grate Burn-Through
- The Challenge: High-potassium biomass fuels (like straw or certain wood wastes) easily melt and form glassy clinkers on the grate surface at high temperatures. This blocks primary air channels and burns through the metal grate bars.
- Our Solution: We manufacture our grate bars using high-chromium cast iron alloys to withstand intense thermal stress. Additionally, we utilize a cross-girder or traveling grate structure with slow-speed adjustable gearboxes. This layout constantly breaks up ash deposits and ensures uniform heat distribution.
Problem 2: Fuel Feeding Backfire and Hopper Jamming
- The Challenge: Light, fibrous biomass materials (such as loose wood shavings or crushed peanut shells) can bridge inside the storage hopper, causing feeding blockages or dangerous smoke backfires into the fuel room.
- Our Solution: We install dual-screw forced feeders with integrated star-wheel airlocks above the inlet chute. This setup forms a strict physical seal against furnace back-pressure, ensuring smooth, automated, and backfire-free fuel delivery.
Problem 3: Strict Dust and Smoke Emission Regulations
- The Challenge: Burning coal or raw biomass generates high concentrations of fly ash and sulfur dioxide (SO2). Factories face steep regulatory fines if black smoke or particulate matter escapes the stack.
- Our Solution: Every SZL/DZL export package is paired with a customized multi-stage filtration system. We integrate an initial Multi-Cyclone Dust Collector to trap heavy soot particles, followed by an advanced Bag-House Filter (Fabric Filter) or wet scrubber. This setup guarantees clean, transparent exhaust stacks that comply with local environmental laws.
9.Technical Customization: Engineering for Your Specific Requirements
We provide a wide range of modular configurations for our DZL and SZL series boilers. Whether you are operating an AAC plant in Uzbekistan or a timber factory in Indonesia, we customize the following technical parameters to ensure maximum efficiency.
1. Flexible Capacity Range
We offer a broad selection of steam outputs to match your factory’s scale.
- Medium-Scale Solutions: We provide 2 ton, 4 ton, and 6 ton capacities for facilities with limited space.
- Large-Scale Production: Our 8 ton, 10 ton, and 15 ton units are engineered for continuous industrial runs.
- Heavy-Duty Operations: For massive infrastructure projects, we deliver 20 ton and 35 ton high-output systems.
2. Operational Pressure Ratings
Our pressure vessels are engineered using specialized Q345R steel to handle various hydrothermal synthesis needs.
- Standard Pressure: We offer 1.0 MPa and 1.25 MPa ratings for standard heating and processing.
- High-Efficiency Curing: Our 1.6 MPa and 2.5 MPa models are ideal for autoclave cycles requiring rapid ramp-up.
- Custom High Pressure: We provide tailored high-pressure engineering for specialized chemical reactions or deep-cell wood treatment.
3. Advanced Dust Removal Systems
To comply with local environmental regulations, we offer several optional emission control technologies.
- Cyclone Separator: This is an efficient primary solution for capturing larger particulate matter.
- Bag Dust Collector: This provides high-precision filtration, ensuring your chimney stays clean and compliant.
- Wet Scrubber: Ideal for removing soluble gases and fine dust through high-efficiency water contact.
- Desulfurization Tower: We integrate these towers for projects utilizing high-sulfur fuels to meet strict air quality standards.
4. Precision Fuel Feeding Mechanisms
We customize the feeding system based on your fuel type and automation requirements.
- Manual Feeding: A cost-effective choice for small-scale operations utilizing bulky biomass waste.
- Semi-Automatic: This balances manual oversight with mechanical assistance for improved labor efficiency.
- Screw Feeding: Perfect for uniform biomass pellets or wood residue, ensuring a steady combustion rate.
- Full Chain Grate: Our most advanced option for SZL series boilers, providing fully automated fuel distribution and ash removal.
10.Global Engineering & Export Support System by CNMIRACLE and Taiguo Boiler
CNMIRACLE serves as the international engineering and export brand of Taiguo Boiler Group, delivering fully integrated industrial boiler and thermal energy system solutions for global markets.
All equipment is manufactured at the Henan Taiguo Boiler production base, where strict engineering standards, pressure testing procedures, and quality control systems ensure reliable industrial performance.
This integrated structure allows us to combine manufacturing strength with global engineering execution capability, providing complete support from system design to final operation.
1. Pre-Project Engineering & System Customization
We bridge local industrial conditions with high-efficiency boiler engineering systems.
- Fuel analysis for coal, biomass, and agricultural residues
- Boiler selection based on process steam demand and pressure requirements
- Boiler room layout design by CNMIRACLE engineering team
- Full P&ID system integration design
2. Environmental & Auxiliary Engineering Integration
Our engineering system ensures compliance with international environmental standards.
- Chimney structural design based on wind load and altitude conditions
- Ash discharge system design for continuous industrial operation
- Dust collection system matching (cyclone / bag filter / ESP)
- Emission control optimization for clean combustion performance
3. Global Logistics & Export Execution
CNMIRACLE manages international export coordination and logistics execution.
- Full export documentation and customs clearance
- EAC certification support for Central Asian markets
- Anti-corrosion industrial packaging for long-distance transport
- Critical spare parts kit for operational safety
4. Installation, Commissioning & Lifetime Engineering Support
We provide full lifecycle engineering services to ensure stable operation.
- On-site installation supervision by Taiguo technical engineers
- Remote PLC-based commissioning and system calibration
- Operator training for safe industrial operation
- Long-term technical consultation and optimization support
Strategic Engineering Value of CNMIRACLE & Taiguo System
This integrated system ensures lower project risk, higher operational efficiency, and stronger long-term return on investment for industrial users.nal efficiency, and stronger long-term ROI for industrial users.
| Engineering Pillar | Technical Commitment | Strategic Business Value |
|---|---|---|
| Manufacturing Quality | Class-A boiler production combined with 100% NDT pressure testing. | Guarantees maximum operational safety and long-term equipment reliability. |
| Energy Efficiency | Optimized automated combustion systems and waste heat utilization. | Cuts monthly factory fuel consumption bills by 10% to 15% significantly. |
| Global Delivery | Proven export and heavy logistics experience across Asia, Africa, and CIS markets. | Accelerates customs clearance and eliminates international transit risks. |
| Engineering Support | Full lifecycle EPC service tracking and remote PLC technical diagnostic links. | Reduces unplanned downtime risks and protects your factory production line. |
11.Extended Operational Support for SZL & DZL Biomass Boilers
To further enhance long-term operational stability, CNMIRACLE and Taiguo Boiler provide extended technical support systems for industrial biomass boiler users.
These systems are designed to improve fuel flexibility, reduce maintenance risks, and ensure environmental compliance across global industrial applications.
Fuel Adaptability for Cost-Optimized Operation
SZL and DZL biomass boilers are engineered for flexible fuel utilization based on local energy availability.
Supported fuels include:
- Agricultural residues (rice husk, corn cob, straw, palm shell)
- Wood-based fuels (chips, sawdust, pellets)
- Coal types (lignite, bituminous coal, anthracite)
This flexibility allows industrial users to adjust fuel strategies based on seasonal price fluctuations and regional supply conditions.
Standardized Spare Parts & Lifecycle Stability
To ensure continuous industrial operation, we provide standardized maintenance and spare parts systems.
Key advantages include:
- International-standard components for easy local replacement
- Wear-resistant alloy materials for extended service life
- Remote IoT-based diagnostics for operational monitoring
This significantly reduces unplanned downtime and improves long-term operational reliability.
Multi-Level Environmental Compliance Solutions
To meet varying environmental regulations across global markets, we provide scalable emission control configurations:
- Cyclone dust collectors for standard industrial environments
- Wet scrubber systems for medium-level emission control
- Bag filter systems for strict environmental compliance zones
These solutions ensure stable operation while maintaining compliance with regional environmental standards.
12.Technical Checklist for DZL & SZL Series Boilers
This checklist is designed to help enterprise founders and engineers verify the structural integrity and operational efficiency of their solid fuel systems.
1. Structural & Material Integrity
- Pressure Vessel Steel: We utilize high-grade Q345R specialized steel for the main boiler shell to ensure fatigue resistance.
- Welding Quality Control: Every longitudinal and circumferential weld undergoes 100% X-ray flaw detection to ensure zero defects.
- Heavy-Wall Design: Increased wall thickness is applied to extend the equipment service life to over 20 years.
- Hydraulic Testing: Every unit must pass a rigorous hydraulic pressure test before leaving our Henan factory.
2. Combustion & Grate System
- Custom Grate Design: The chain grate speed and air distribution are adjusted based on your specific fuel (e.g., coal, cotton stalk, or rice husk).
- Fuel Feeding Mechanism: We offer screw feeding or full chain grate options to match your automation requirements.
- Refractory Lining: High-quality firebricks and refractory castables are used to withstand extreme furnace temperatures.
- Ash Discharge: Automated ash removal systems are integrated to maintain a clean combustion environment.
3. Energy Efficiency & Automation
- Waste Heat Recovery (WHR): Integrated economizers capture flash steam to pre-heat boiler feed water.
- Thermal Efficiency: Our systems are engineered to achieve an efficiency rate of 85% to 88%.
- PLC Control System: Automated monitoring tracks steam pressure, water levels, and exhaust temperatures in real-time.
- Fuel Savings: Optimized insulation and WHR can reduce your monthly fuel consumption by 10% to 15%.
4. Environmental & Safety Compliance
- Dust Removal System: We provide optional cyclone separators or bag dust collectors to meet local emission standards.
- Safety Interlocks: Redundant safety valves and low-water alarms are standard on every DZL and SZL model.
- Global Certification: All equipment is manufactured to meet ASME, CE, and ISO standards.
- Regional Documentation: We provide specialized EAC certification for projects in Uzbekistan and Central Asia.
13.Frequently Asked Questions (FAQ) of SZL Biomass fired Boiler
Which fuel is more cost-effective for my project, coal or biomass?
Typically, this depends on your local fuel availability and price. Consequently, our boilers are designed with high flexibility to allow switching between different solid fuels easily.
How do you handle the high moisture content in some biomass fuels?
We optimize the furnace volume and arch height to ensure sufficient drying and ignition. Therefore, even fuels with higher moisture can reach stable combustion and high thermal output.
Are Taiguo boilers suitable for remote areas in Africa?
Yes, we design our DZL series as a compact package for easy inland transportation. Moreover, our simple mechanical control systems are ideal for areas with limited high-tech support.
What environmental equipment is provided with the boiler?
We offer multi-cyclone dust collectors or bag filters based on your local emission laws. As a result, you can maintain a clean operation while utilizing low-cost fuels.
Can you provide on-site installation services in Central Asia?
Absolutely, we send experienced engineers to guide the installation and commissioning process. Consequently, we have successfully completed dozens of projects in Uzbekistan and Nigeria.
Why is the SZL series Coal & Biomass Steam Boiler the Strategic choice for high-capacity steam in 2026?
The SZL Biomass fired Boiler double-drum structure is Essential because it provides a larger water volume and better steam quality. This is Critical for industries like paper and chemical production where high-pressure, steady-state steam is a Reliable requirement for zero-defect output.
How does the DZL series Coal & SZL Biomass fired Boiler reduce infrastructure costs for small factories?
The DZL series is a Superior packaged boiler. Its Seamless horizontal layout and single-drum design reduce the installation footprint by 30%. For a mid-sized food processing plant, this is Validated to lower civil engineering costs by nearly 20%.
Can these boilers switch between coal and biomass during a production cycle?
Absolutely. As part of our Strategic 2026 multi-fuel roadmap, the chain grates are designed for high adaptability. This Essential flexibility allows you to switch to the most cost-effective local fuel (e.g., rice husks or coal) without a Critical loss in thermal output.
What is the expected service life for an SZL Biomass fired Boiler or DZL series Coal & Biomass Steam Boiler in 2026?
With Taiguo’s Authoritative welding techniques and 16MnR steel plates, these units provide a Reliable service life of 15 to 20 years. When combined with AI-Link predictive maintenance, the Validated ROI is among the highest in the solid-fuel sector.
Stop burning your profits on expensive liquid fuels. Transition to a reliable, automated biomass solution. Get a customized fuel-to-steam cost comparison for your region.
Request Your Portfolio Now
Request a customized project drawing from our Engineering Team
Besides steam solutions, we also provide Thermal Oil Heaters for asphalt heating applications
