Technical Excellence: The WNS Three-Pass Steam Boiler

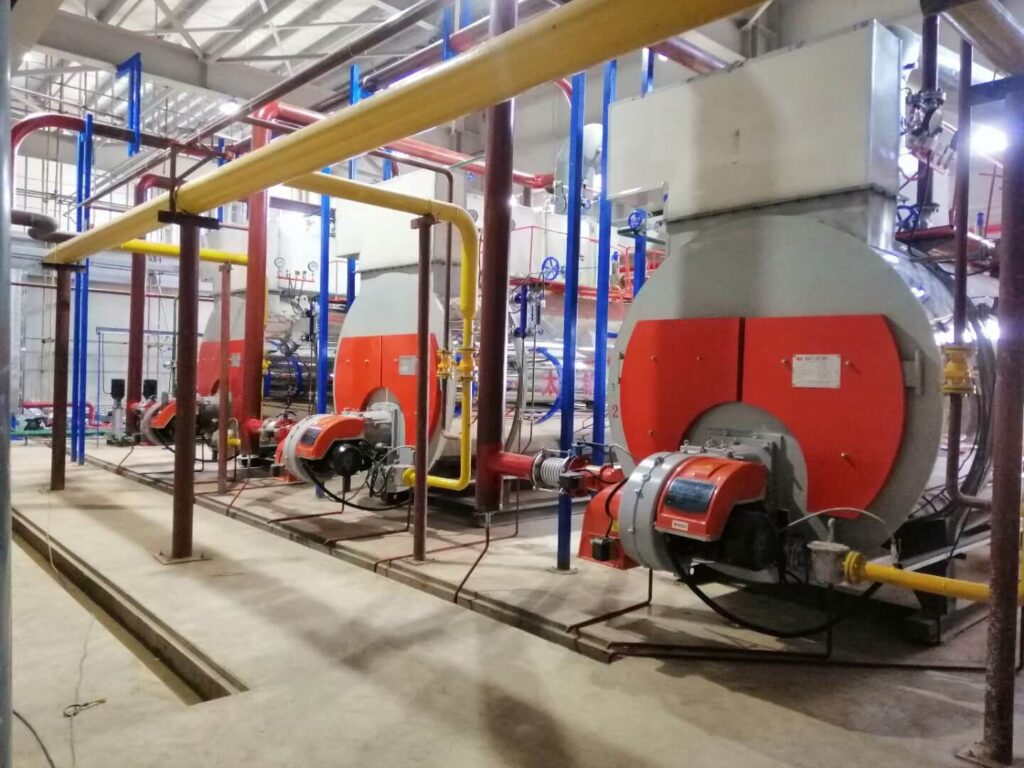

Introduction

In the realm of industrial steam generation, the WNS three-pass steam boiler is renowned for its reliability and thermal performance. this WNS gas steam boiler in horizontal, internal combustion fire-tube boiler is engineered by Henan Taiguo Boiler to meet the most demanding factory requirements. By utilizing a sophisticated three-pass flow and a full “wet-back” structure, we ensure that every unit of fuel is converted into high-quality steam with minimal waste.

The Three-Pass Design: Maximizing Heat Absorption

The “three-pass” designation refers to the number of times the hot combustion gases travel through the boiler before exiting.

• First Pass: The burner fires into the large-diameter corrugated furnace, where the most intense radiant heat transfer occurs.
• Second Pass: The gases turn in the reversal chamber and head back through the first set of fire tubes.
• Third Pass: The gases turn again at the front smoke box and travel through the final set of tubes toward the chimney. Therefore, the flue gases stay in contact with the heating surfaces for a longer duration. Consequently, the heat transfer efficiency is significantly enhanced compared to single or two-pass designs.

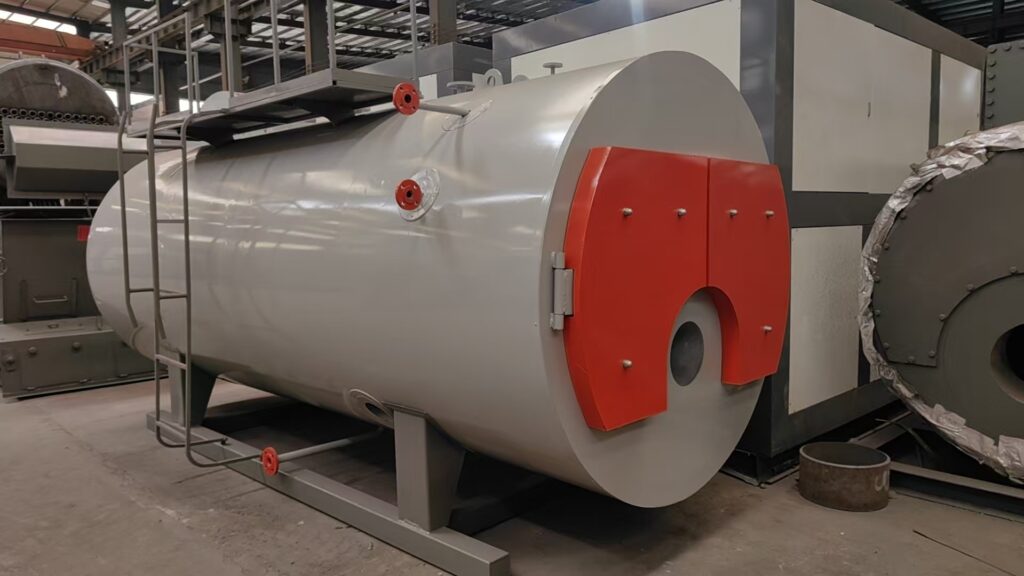

Full Wet-Back Structure: Engineering for Longevity

One of the most critical technical features of the Taiguo WNS series is the full wet-back design. In this configuration, the rear smoke reversal chamber is entirely surrounded by water. Unlike “dry-back” boilers that use refractory bricks at the rear, the wet-back design uses water cooling to protect the rear tube sheet. Therefore, there is no risk of the rear wall burning through or cracking due to high temperatures. Moreover, this design reduces the heat loss from the back of the boiler. Thus, you get a more durable system with a much lower maintenance requirement.

Threaded Fire Tubes and Low-NOx Combustion

To push the boundaries of efficiency, we incorporate high-efficiency threaded fire tubes. These tubes feature internal spiral grooves that create turbulence in the flue gas. Consequently, the heat transfer coefficient is improved by 1-2 times over smooth tubes. Furthermore, the WNS series is perfectly matched with world-class low-NOx burners. By optimizing the furnace volume, we achieve a large combustion space that minimizes nitrogen oxide formation. Therefore, our boilers are fully compliant with strict 2026 environmental emission standards.

Smart AI Control and Multi-Layered Safety

Technical excellence is incomplete without intelligent management. Every WNS three-pass steam boiler is equipped with an AI-driven PLC control system. This system monitors steam pressure, water levels, and exhaust temperatures in real-time. Moreover, it features automatic interlocks for over-pressure and low water levels. Consequently, the boiler can automatically adjust its firing rate to match your plant’s steam demand. Thus, you achieve a “set-and-forget” operational experience with the highest safety guarantees.

Conclusion

The WNS three-pass steam boiler from Taiguo Boiler is more than just a pressure vessel; it is a masterpiece of thermal engineering. We combine 40 years of manufacturing history with 2026’s most advanced materials and digital controls. We help you achieve the stability and efficiency your production line needs to stay ahead of the competition.

Contact our technical engineering team today for a detailed CAD drawing and a customized performance analysis for your facility.
