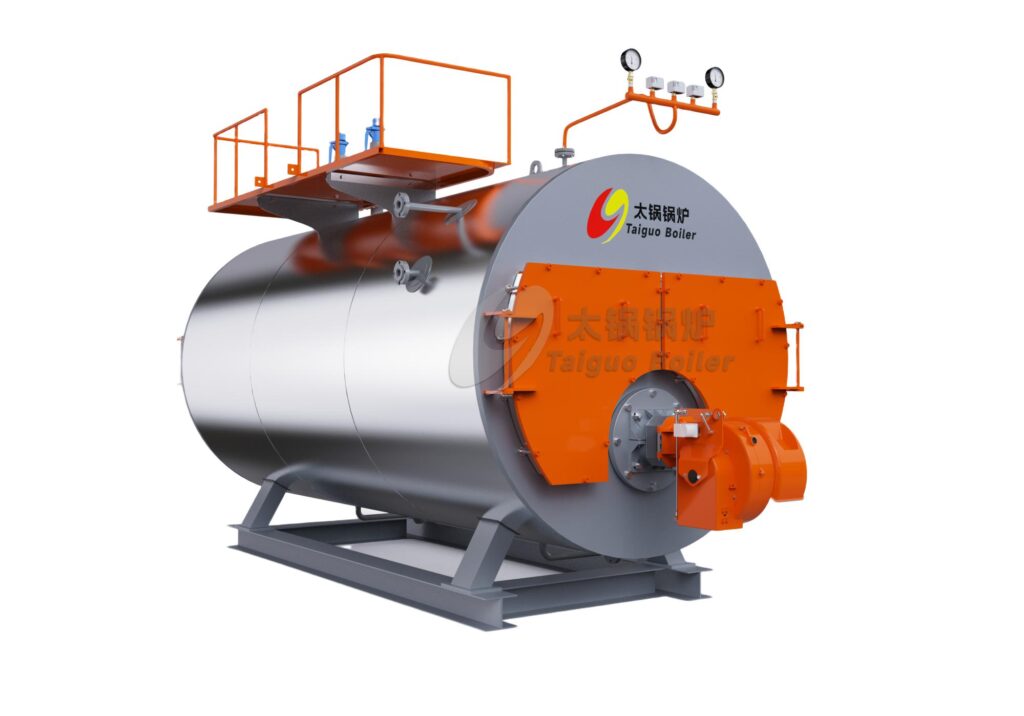

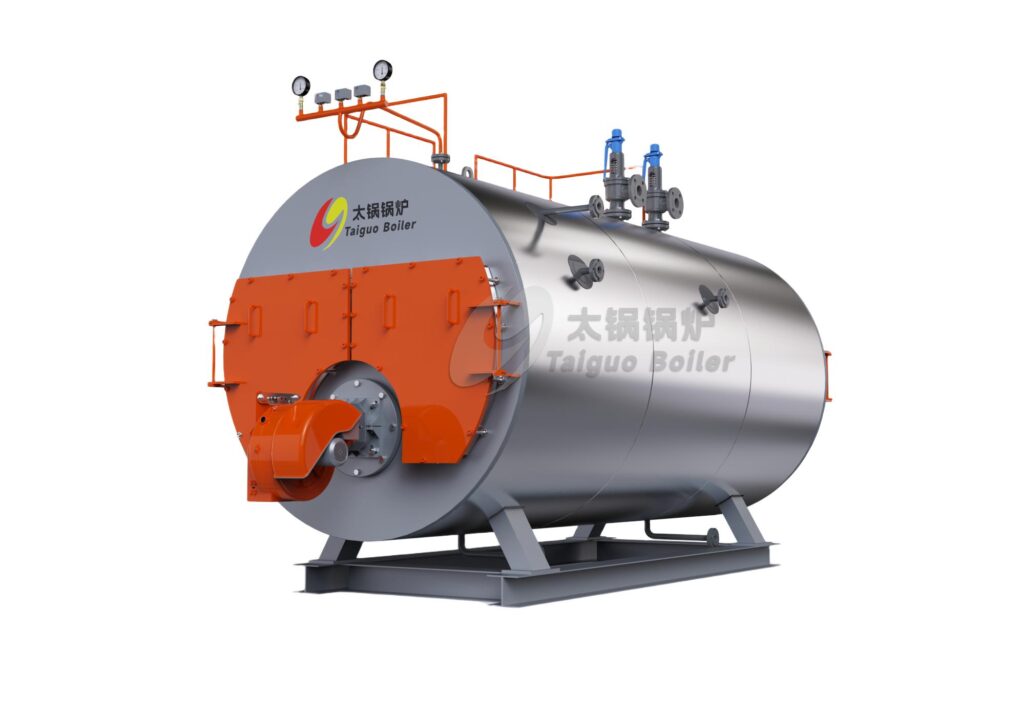

WNS Series Horizontal Internal Combustion Boiler

High-Efficiency Three-Pass Wet-Back Gas & Oil Boiler

The WNS series horizontal internal combustion boiler is a high-performance, fully automatic three-pass wet-back boiler designed with cutting-edge global technology. It is known for its excellent combustion efficiency, low operating costs, and superior safety standards. With a durable structure and innovative heat-transfer design, the WNS series is widely recognized as one of the most reliable industrial boilers for steam and hot water generation.

⭐ Key Advantages of the WNS Series Boiler

✔ 1. High Thermal Efficiency (Up to 98%)

The three-pass wet-back structure significantly enhances radiant and convective heat transfer, maximizing fuel utilization and reducing heat loss.

✔ 2. Fully Automatic Intelligent Control

The PLC-based control system ensures easy operation, automatic start/stop, water level control, and comprehensive safety protection.

✔ 3. Ultra-Low Emission & Environment Friendly

Optimized combustion and advanced burner technology ensure low NOx emissions and compliance with global environmental standards.

✔ 4. Long Service Life & High Reliability

The wet-back design reduces furnace wall erosion and thermal stress, ensuring long-term durability and reduced maintenance costs.

✔ 5. Lower Fuel Consumption & Reduced Operating Cost

Optimized airflow design, efficient heat-transfer tubes, and complete combustion reduce overall energy consumption.

✔ 6. Easy Installation & Maintenance

Compact boiler body, modular accessories, and front-rear manholes significantly simplify installation and routine inspection.

⭐ Working Principle: Three-Pass Wet-Back Design

(1) First Pass – Wave Furnace (Radiant Heating)

Fuel is fully atomized by the high-efficiency burner and forms a strong flame inside the large wave furnace. Radiant heat is absorbed efficiently, ensuring complete combustion.

(2) Second Pass – Reversal Chamber + Threaded Flue Tubes

High-temperature flue gas flows through the rear reversal chamber and enters the threaded flue tubes, creating strong turbulence and improving heat-transfer efficiency.

(3) Third Pass – Front Smoke Chamber + Plain Tube Bundle

After heat exchange in the second pass, gases enter the third-pass plain tubes for further cooling before being discharged through the chimney.

⭐ Technical Features

Three-pass wet-back design
High-efficiency burner (Gas/Diesel/Heavy Oil)
Large furnace volume to reduce NOx
Threaded flue tubes for strong heat transfer
High-standard steel plate and advanced welding technology
Automatic water supply and pressure protection system
Equipped with international brand valves and pumps

⭐ Technical Specifications

Steam capacity: 0.5 – 20 t/h
Working pressure: 0.7 – 2.5 MPa
Thermal efficiency: up to 98%
Fuel type: Natural gas / LPG / Diesel / Heavy oil
Structure: Horizontal, internal combustion, wet back, 3-pass

⭐ Applications

The WNS series boiler is widely used in:

Food & Beverage Processing
Textile & Garment
Chemical & Pharmaceutical
Paper Industry
Rubber & Plastics
Hotel & Hospital Heating
Packaging & Printing
Building Materials
General Industrial Heating

⭐ Why Choose Our WNS Boiler?

Our WNS series boilers have passed rigorous thermal efficiency testing and environmental performance testing conducted by well-known national boiler research institutes. All performance indicators are fully in line with national and international standards.
The product is widely praised for its advanced technology, stable performance, and energy-saving properties.
