WNS Series Gas Fired Hot Water Boiler: Efficiency, Applications & Selection Guide
Contents Hide 1 Understanding WNS Series Hot Water Boilers 2 What Does WNS Mean in Industrial Boilers? 3 How Does a WNS Hot Water Boiler Work? 3.1 1. Burner Combustion 3.2 2. Heat Transfer 3.3 3. Hot Water Circulation 3.4 4. Automatic Control 4 Engineered for Performance: Why High-Efficiency Hot Water Matters 4.1 Key Advantages […]
Get Instant Quote
Technical Specifications

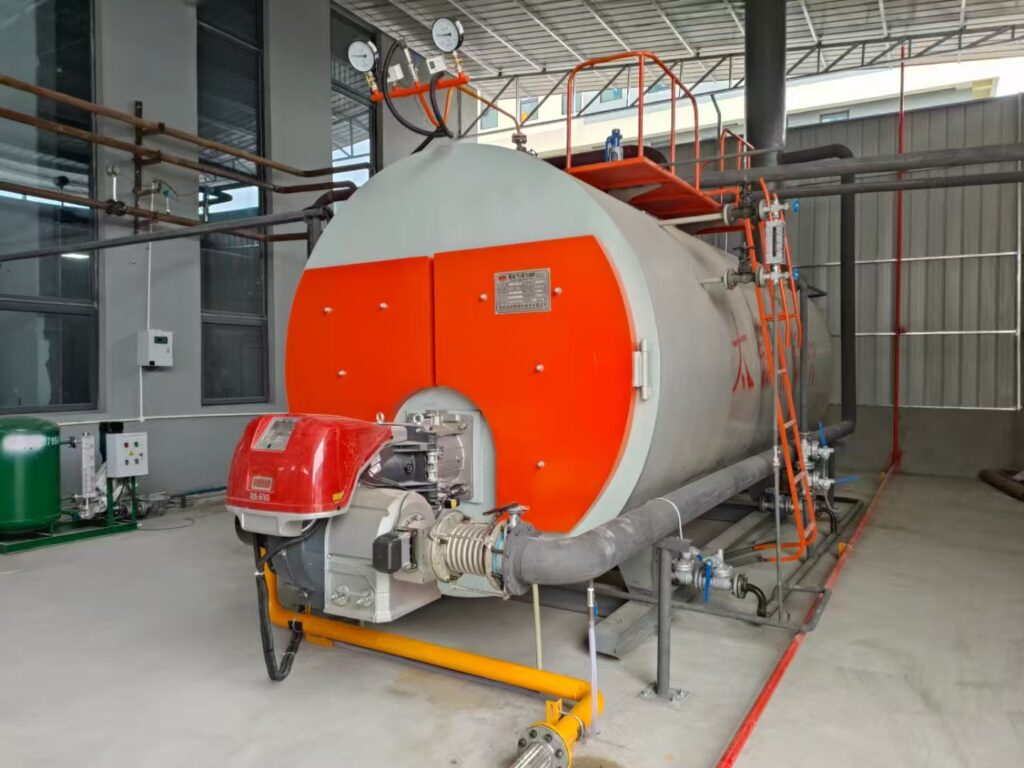

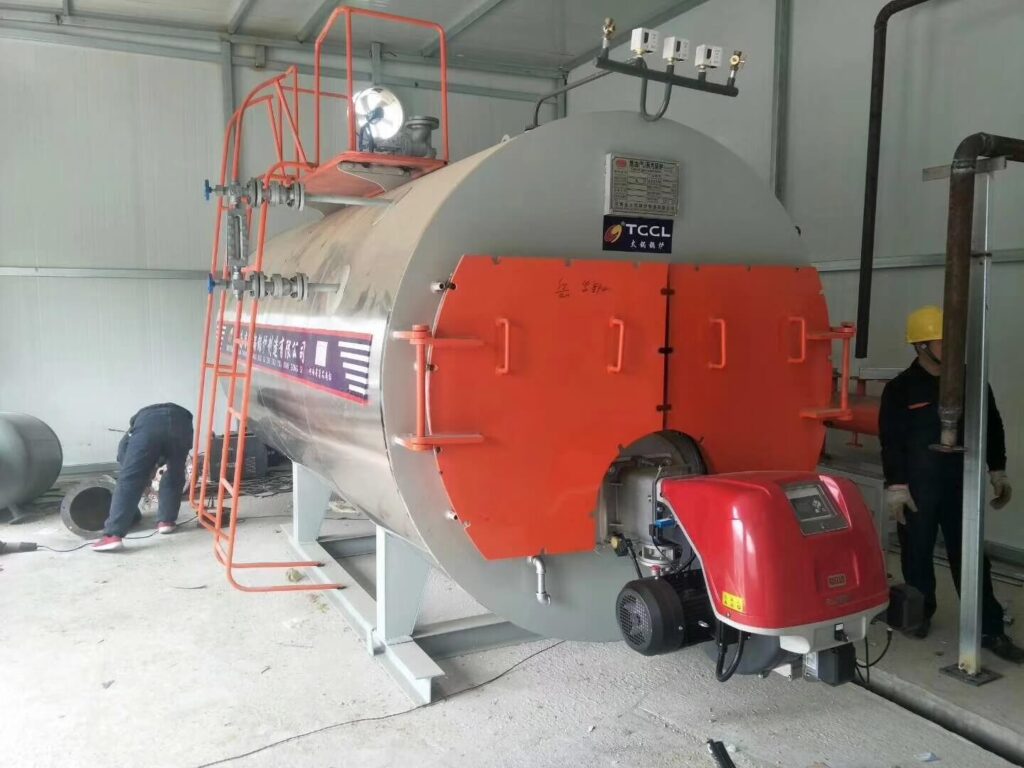

Understanding WNS Series Hot Water Boilers
WNS series hot water boilers are horizontal fire tube boilers engineered for demanding industrial heating applications. They deliver an exceptionally stable hot water supply, high thermal efficiency, and reliable long-term operation.
Using natural gas, diesel oil, or other suitable liquid fuels, WNS boilers ensure highly efficient combustion performance. Optimized furnace dimensions and advanced international burner technology maximize heat liberation.
These boilers operate extensively in factories, luxury hotels, hospitals, manufacturing plants, and centralized industrial heating systems. They ideally serve facilities where continuous, precisely controllable hot water is required for daily uptime.
What Does WNS Mean in Industrial Boilers?
WNS represents a specific horizontal fire tube boiler structure. It is a standard technical classification widely used for gas and oil fired industrial boilers.
The core engineering characteristics of our WNS design include:
- Horizontal Cylindrical Design: A compact shell-and-tube layout that optimizes internal water circulation.
- Wet-Back Combustion Structure: The turnaround smoke chamber is completely surrounded by water. This design eliminates heavy refractory baffle damage and reduces heat loss.
- High Heat Transfer Efficiency: Threaded smoke tubes increase flue gas turbulence and maximize heat absorption.
- Compact Installation Footprint: The integrated skid-mounted layout requires less boiler room floor space.
- Automatic Combustion Control: Advanced PLC panels automate modulation based on real-time load changes.
This proven design makes WNS boilers highly suitable for global projects. They deliver reliable thermal performance and exceptionally convenient daily operation.
How Does a WNS Hot Water Boiler Work?
A WNS hot water boiler operates by transferring intense heat generated from fuel combustion into circulating water. The basic technical process includes four automated steps:
1. Burner Combustion
The integrated burner mixes fuel and air in precise proportions. This electronic modulation creates highly efficient combustion inside the corrugated furnace.
2. Heat Transfer
High-temperature flue gas passes through the furnace and smoke tubes. These radiant and convective heating surfaces transfer thermal energy rapidly to the surrounding water.
3. Hot Water Circulation
Heavy-duty pumps continuously force the heated water through insulated pipelines. This efficient circulation supplies thermal energy to downstream industrial heating networks.
4. Automatic Control
The smart control system constantly monitors temperature, pressure, and combustion conditions. It adjusts inputs automatically to maintain completely stable operational safety.
Engineered for Performance: Why High-Efficiency Hot Water Matters
Key Advantages of WNS Series Hot Water Boilers
1. Wide Heating Capacity (0.35MW – 35MW) of WNS series hot water boilers
Suitable for small, medium, and large projects:
- Residential heating
- Commercial hot water supply
- Industrial heating loops
- Greenhouses & farms
- District heating networks
2. High Thermal Efficiency (Up to 98%) of WNS series hot water boilers
Each boiler is designed for maximum heat transfer and fuel savings:
- Large furnace for complete combustion
- Condensing economizer (optional)
- Enhanced water circulation
- Low flue gas temperatures
- Better anti-corrosion performance
This results in 10–18% lower operating costs compared with traditional boilers.
3. Ultra-Low Emissions (<20–30 mg/m³ NOx) of WNS series hot water boilers
Meet strict global emission standards with Taiguo’s advanced combustion technology:
- FGR system
- Low-NOx burner
- Optimized air-fuel mixture
- Intelligent flame control
Perfect for regions with strict environmental regulations.
4. Smart Control System (TG-Intelligent Panel)of WNS series hot water boilers
User-friendly and safe operation:
- Touchscreen control
- Real-time temperature monitoring
- Automatic start/stop
- Multi-level safety protection
- Remote monitoring (optional)
5. Flexible Fuel Compatibility of WNS series hot water boilers
The WNS series supports:
- natural gas
- diesel
- LPG
- LNG
- CNG
- biogas
- dual fuel gas + diesel
This makes it highly suitable for overseas projects where gas is primary and diesel backup is required.
6. Long Service Life & Industrial Durability of WNS series hot water boilers
Built with premium components to ensure 20+ years of operation:
- High-strength steel plates
- Automated welding
- High-quality refractory materials
- Multi-layer insulation
- Corrosion-resistant water circuits
In 2026, heating costs are the single largest line item in commercial facility management. Whether you are running a 5-star hotel in Tashkent or a high-capacity industrial laundry in Jakarta, every percentage point of thermal efficiency translates directly into thousands of dollars in annual savings. The TG-WNS series hot water boilers combines the reliability of a classic three-pass wet-back design with cutting-edge condensing technology to deliver a heating solution that is both environmentally compliant and fiscally superior.
The “104% Efficiency” Logic – Condensing Synergy of WNS series hot water boilers
Standard hot water boilers exhaust gas at150 degree to 200 degree. That’s wasted money flying out the chimney.
- The Innovation: We equip the TG-WNS series with an integrated Stainless Steel Condenser.
- The Physics: By cooling the flue gas below its dew point, we capture the latent heat of vaporization.
- The Result: This boosts the total thermal efficiency to 104% (based on LHV). For a centralized heating project in Samarkand, this reduces natural gas consumption by 12-15% compared to non-condensing legacy models .
Triple-Pass Wet-Back – Durability Meets Low Maintenance of WNS series hot water boilers
- The Structural Advantage: Our WNS series utilizes a Wet-Back design.
- The Engineering: Unlike “Dry-Back” boilers that use fragile refractory bricks, our rear smoke chamber is entirely surrounded by water.
- The Benefit: This eliminates the 600 degree thermal stress on the rear tube plate, preventing cracks and leaks. It also eliminates the need for expensive refractory repairs, ensuring your hotel or hospital has a zero-downtime heating heart .
Smart Load Modulation – The “Set and Forget” System of WNS series hot water boilers
- The Automation: High-efficiency heating requires precision. Our boilers feature Fully Automated Load Modulation via Siemens PLC Controllers .
- The Intelligence: The system automatically adjusts the firing rate based on the return water temperature and outdoor ambient conditions (Weather Compensation).
- The ROI: You don’t need a full-time boiler room attendant. The system maintains a stable ±1°C temperature accuracy, protecting your facility from overheating and unnecessary fuel spikes.
Structural Engineering: Relieving Thermal Stress in the WNS Design
The primary failure point in standard WNS boilers is the cracking of the tube-sheet near the high-temperature reversal chamber. Taiguo’s 2026 WNS hot water series utilizes an Asymmetric Tube Layout combined with a Full-Wet Back Structure. This geometry optimizes the water flow velocity directly against the rear tube-sheet, preventing the ‘Steam Pockets’ that lead to localized overheating and thermal fatigue. By ensuring a uniform temperature gradient, we extend the vessel’s pressure-bearing life by 25%, making it a reliable 20-year asset for large-scale district heating or industrial processes.
Thermodynamic Edge: Capturing the Latent Heat of Vaporization
Standard WNS hot water boilers exhaust gas at 150 ℃, wasting approximately 10% of the fuel’s energy. Our 2026 spec integrates a Dual-Stage Integrated Condenser utilizing ND Steel (09CrCuSb) finned tubes. By dropping the flue gas temperature to 55℃, we trigger the ‘Condensing Phase,’ capturing the latent heat from water vapor. This pushes the system’s thermal efficiency to a verified 104-106% (LHV). For a 7MW heating project, this technology reduces annual gas consumption by over 45,000 m3, directly impacting your bottom line while lowering CO_2 emissions.
Durability Engineering: The Internal Pre-Mixing Solution
In hot water heating, returning water often falls below 40℃, which can cause immediate ‘Cold-End Corrosion’ on the boiler shell. Taiguo’s WNS boilers feature an Internal Hot Water Distributor. This device pre-mixes the cold return water with the hot boiler water before it contacts the combustion chamber walls. By staying above the Acid Dew Point, we prevent the formation of corrosive sulfuric acid on the flue-side surfaces. This ensures that even in the harshest winters of Uzbekistan or Kazakhstan, your boiler remains corrosion-free and efficient.
2026 Compliance: EAC, CE & Ultra-Low NOx
- Environmental Shield: Equipped with world-class Low-NOx burners (Riello/Baltur), our WNS hot water boilers achieve emissions <30mg/Nm³, meeting the strictest 2026 air quality standards in Kazakhstan and Indonesia.
- EAC Certified: Crucial for the CIS market, every unit comes with a full Technical Passport and individual hydrostatic test reports at 1.5x design pressure.
Stable Heating Solutions for Commercial & Industrial Applications OF WNS Series Hot water boilers
Engineered for hotels, schools, hospitals, greenhouses, factories, and residential communities.
WNS hot water boilers supply vital, high-efficiency heating energy across multiple specialized industrial and commercial sectors.
Textile Industry
Boilers provide reliable hot water for fabric washing, scouring lines, and precise production temperature control. Discover our custom Textile Boiler Solution.
Food Processing Industry
Systems deliver continuous hot water for facility sanitization, ingredient pre-heating, and food manufacturing operations. Explore our specialized Food Industry Boiler Solution.
Chemical Industry
Advanced heating loops provide stable process heating for jacketed chemical reactors and industrial production lines. Review our heavy-duty Chemical Industry Boiler Solution.
Hotel and Building Heating
Large-scale WNS boilers support centralized building space heating and high-volume domestic hot water supply networks safely.
Manufacturing Plants
Systems drive automated factory space heating grids and provide essential thermal support for diverse industrial manufacturing requirements.
Technical Specifications of WNS series hot water boilers
Example Model: WNS 2.8MW WNS series hot water boilers
| Parameter | Value |
|---|---|
| Model | TG-HW 2.8MW |
| Rated Heat Output | 2.8MW |
| Working Pressure | 0 / 1.0 MPa (optional) |
| Water Temperature | 95–115°C |
| Fuel Type | Natural gas / LPG / Light oil |
| Thermal Efficiency | ≤ 98% |
| NOx Emissions | < 30 mg/m³ |
| Control System | TG-Intelligent |
| Installation | Horizontal / Vertical |
| Service Life | ≥ 20 years |
| Item | Specification |
|---|---|
| Heating Capacity | 0.35–14 MW |
| Working Pressure | 0.7–1.6 MPa |
| Supply / Return Temp | 95/70°C or Customized |
| Fuel | Gas / Diesel / LPG / Biogas |
| Thermal Efficiency | 95–98% |
| Structure | Horizontal Three-Pass Wet-Back |
| Burner | Fully Modulating |
| Installation | Skid / Quick Assembly |
The WNS platform is widely used in 0.5–20 ton equivalent steam or hot water outputs, making it highly customizable.
Recommended MW Heating Area Selection Table for WNS series hot water boilers
| Boiler Capacity | Recommended Heating Area |
|---|---|
| 0.7 MW | 6,000–8,000㎡ |
| 1.4 MW | 10,000–12,000㎡ |
| 2.8 MW | 20,000–25,000㎡ |
| 4.2 MW | 30,000–35,000㎡ |
| 7 MW | 50,000–60,000㎡ |
| 14 MW | 100,000–120,000㎡ |
Quick Formula
1 MW ≈ 8,000–10,000㎡ standard winter heating area
🏭 Strategic Thermal Deployment: Where WNS series hot water boilers Engineering Redefines Efficiency
The WNS series is the “workhorse” of modern heating infrastructure. Beyond just boiling water, these systems are designed to manage the complex hydraulic and thermal demands of large-scale facilities.
1. WNS series hot water boilers For Hospitality & Healthcare: Managing the “Morning Surge”
In high-occupancy hotels and hospitals, hot water demand is not linear; it spikes violently during peak morning hours.
- Peak Load Buffering: Taiguo’s WNS hot water boilers feature an Oversized Water Capacity, which acts as a “Thermal Battery.” When 500 rooms simultaneously draw hot water, the boiler’s stored energy prevents the common “Cold-Water Sandwich” effect, ensuring a stable 60℃ output for both guest comfort and hospital sterilization protocols.
- Low-Noise Sanitary Supply: By utilizing Low-Velocity Burners and acoustic-damped casings, our WNS units operate at <60 dB. This allows for installation in basement mechanical rooms directly beneath guest suites without vibration or noise complaints.
2. WNS series hot water boilers For Industrial Manufacturing: Resilience in Harsh Climates
For factories in regions like Uzbekistan or Kazakhstan, workshop heating is a matter of production survival, not just comfort.
- Workshop Winter Resilience: Our WNS units are engineered for Variable Flow Distribution. In large-span workshops, the system maintains a consistent Hydraulic Gradient, ensuring that the farthest radiator on the production floor receives the same heat as the one nearest the boiler room.
- Process Jacket Heating: For chemical and food plants, the WDR provides precise temperature maintenance for storage tanks. Our PLC-driven Outdoor Reset Control automatically adjusts the boiler output based on ambient temperatures, preventing raw materials from thickening or freezing during extreme winter nights.
3. WNS series hot water boilers For High-Tech Agriculture: The “Circular Energy” Greenhouse
In 2026, greenhouse heating is about maximizing “Yield per Joule.”
- Precision Root-Zone Heating: By circulating lukewarm water (35-40℃) through underground HDPE piping, WNS boilers accelerate plant metabolism. This technology can reduce the growing cycle of winter crops by 15%.
- Condensing Integration for CO2 Enrichment: In gas-fired WNS models, we can integrate an Exhaust Cleaning Module. The cooled, CO2-rich flue gas is safely diverted into the greenhouse to boost photosynthesis, while the recovered latent heat is used for livestock floor heating, creating a Zero-Waste Thermal Loop.
4. WNS series hot water boilers For District Heating & Municipal Stations: The Reliability Anchor
For schools, dormitories, and urban heating stations, “Uptime” is the only metric that matters.
Long-Distance Pumping Stability: WNS hot water boilers are designed to withstand high return-water pressures (up to 1.6 MPa). This makes them ideal for secondary heating stations where long-distance pipe friction requires high-head circulation pumps.
Case Study: 37% Energy Savings for a Hospital in 2025 of WNS series hot water boilers
A large hospital upgraded to a Taiguo 4.2MW gas hot-water boiler:
- Energy consumption reduced by 37%
- Hot-water output increased for peak demand
- NOx emissions averaged 22 mg/m³
- Fully automated operation improved safety and reduced labor by 60%
Customer Testimonials
“Reliable hot-water supply 24/7. Very efficient and quiet.”
— Facilities Manager, Medical Center
“Installation was smooth, and the energy savings were immediate.”
— Engineering Director, Hotel Group
Why Overseas Buyers Prefer WNS series hot water boilers
This model solves the biggest buyer pain points:
- high winter gas cost
- unstable return temperature
- hotel domestic hot water demand
- fast-response peak load
- backup diesel redundancy
- low maintenance requirement
Especially suitable for:
- Uzbekistan hotel heating
- Kazakhstan school campuses
- Russia district heating
- Middle East hospital DHW systems
Why Choose WNS Instead of Other Hot Water Boiler Types?
Different industrial heating projects require specific boiler engineering technologies to optimize costs.
Compared with other industrial boiler designs, WNS hot water boilers are frequently selected because of several technical advantages:
- Highly mature fire tube technology with a low risk of water quality scaling failure.
- Exceptionally stable operation under rapid thermal load fluctuations.
- Simple maintenance procedures with easily accessible front and rear smoke doors.
- Excellent fuel adaptability for both natural gas and various liquid oils.
- Compact, integrated installation design that shortens onsite project deployment times.
However, the final selection must evaluate your total heating capacity, fuel availability, maximum operating temperature, and local environmental compliance requirements.
How to Select a WNS Hot Water Boiler?
When purchasing an industrial WNS hot water boiler, factory procurement teams must analyze several core technical parameters:
- Heating Capacity: The rated boiler thermal output must match your actual peak process heat demand precisely.
- Operating Temperature: Your required supply and return water temperature profiles heavily influence internal system design and piping layouts.
- Fuel Availability: Local natural gas pipeline pressure and fuel delivery costs directly influence your long-term operating economics.
- Installation Conditions: Engineers must verify available boiler room space, ceiling heights, and auxiliary equipment spacing requirements.
- Future Expansion: The selected thermal network should allow for possible future increases in factory production heating demand.
Engineering Design for WNS Heating Systems
A successful WNS hot water boiler project requires more than the boiler shell itself. It demands comprehensive engineering planning. Professional factory engineering support covers several critical stages:
- Optimized boiler room layout arrangement and safety ventilation positioning
- Complete fuel supply pipeline engineering and gas train regulation setups
- Automated water treatment system configuration to eliminate scale risks
- High-efficiency circulation pump selection based on head and flow calculations
- Complete thermal piping design, insulation materials, and valve layouts
- Professional onsite installation guidance, safety commissioning, and operator training
Proper engineering design ensures absolute operational safety. It guarantees maximum thermal efficiency and an extended equipment service life.
Engineering Resources: Plan your complete boiler room layout via our Engineering Hub. Discover advanced methods to eliminate energy waste through Boiler System Optimization techniques.
WNS Hot Water Boiler Project Applications
WNS series boilers operate successfully across diverse global industrial heating projects where stable thermal output and high reliability are mandatory.
Typical real-world applications include:
- Medium to large-scale manufacturing plants requiring winter factory space heating.
- High-density textile factories running continuous hot water washing lines.
- Automated food processing facilities demanding rigorous temperature control for sterilization.
- Commercial district heating projects serving residential communities and hospitals.
Your final equipment selection depends entirely on local fuel conditions, peak heating demands, and annual operating schedule requirements.
Global Case Studies: Review real-world operational data and verified customer feedback on our Case Hub.
Technical Checklist: WNS series hot water boilers Audit
Furnace Wave Depth & Pitch
- Action: Verify the use of a Large-Diameter Full-Corrugated Furnace.
- Technical Why: Corrugations increase the radiant heat transfer area by 30% and provide essential ‘Elasticity’ to handle the thermal expansion during rapid startups, preventing weld cracks.
Burner Turndown & FGR Compatibility
- Action: Ensure the burner supports FGR (Flue Gas Recirculation) to achieve <30mg/Nm3 NOx.
- Technical Why: Hot water boilers in urban centers are under strict 2026 emission audits. A high turndown ratio (1:5) prevents the boiler from ‘Short-Cycling’ during mild weather, saving fuel and wear on the ignition system.
Insulation Density & Radiation Loss
- Action: Confirm 100mm double-layer rock wool with high-purity aluminum cladding.
- Technical Why: For a hot water boiler, surface radiation loss is a constant thief. Taiguo’s insulation ensures the shell surface temperature is no more than 15℃ above ambient, maximizing the heat delivered to your radiators or production line.
FAQ: Essential 2026 Industrial Insights
Why is the High-Efficiency TG-WNS Series Hot-Water Boilers the Strategic choice for 2026 district heating?
In the 2026 landscape, decarbonization and reliability are the primary drivers. The Validated wet-back design and ultra-low NOx burners make this series a Superior choice for urban heating projects. It offers a Reliable and cost-effective transition for facilities moving away from coal while ensuring Essential compliance with local emission laws.
How does the corrugated furnace improve the boiler’s lifespan?
The large-diameter corrugated furnace is a Critical feature that increases the heat transfer area and allows for Seamless thermal expansion. This prevents stress-related weld fractures, providing a Superior level of structural durability compared to straight-furnace alternatives.
Can this boiler be monitored remotely in a Smart Factory setup?
Absolutely. As part of our Strategic 2026 IoT roadmap, the TG-WNS series is fully compatible with building management systems (BMS). It provides Reliable real-time data on efficiency, pressure, and fuel consumption, which is Essential for modern data-driven facility management.
What is the benefit of the three-pass smoke tube design?
The three-pass design ensures that flue gases remain in the boiler longer, maximizing heat exchange. This Superior path, combined with threaded smoke tubes, creates turbulence that increases heat transfer by 30%, resulting in a Validated reduction in fuel costs.
What is the difference between an Atmospheric and a Pressure Hot Water Boiler?
Atmospheric boilers operate at zero gauge pressure and are ideal for domestic heating. Pressure Hot Water Boilers (WNS) allow for higher temperature outputs (up to 115 degree or 130 degree) and are required for high-rise buildings and industrial processing where heat must be transported over long distances.
Can these boilers be integrated into our Building Management System (BMS)?
Yes. Our PLC control cabinets support Modbus and RS485 communication protocols, allowing for full remote monitoring and control through your central facility management system.
How does the “Wet-Back” design save me money?
It saves money in two ways: first, by increasing the heating surface area (higher efficiency); and second, by eliminating the high cost of replacing cracked refractory bricks every 2–3 years.
🚀 Call-to-Action
Need a High-Efficiency Hot Water Boiler for Your Project?
If your project requires stable heating, low fuel cost, and smart PLC control, the TG-WNS series is one of the best ROI solutions.
We Support
- MW sizing
- hotel heating load calculation
- district pipe loss analysis
- gas pressure matching
- diesel backup configuration
- skid-mounted boiler room
- export customs documents
- installation guidance
Contact us now for model selection and quotation.
Depending on your fuel source, you can choose our gas or biomass Industrial Hot Water Boiler for stable and quiet room heating.
Study modern zero-emission boiler room engineering frameworks inside our boiler technology insights.
Compare automated diagnostic control panel integrations against TG-WNS6-1.25-YQ Ultra-Low-NOx Smart Steam Boiler.
Examine extreme high-temperature processing system loop safety inside TG-YY(Q)W Series High-Efficiency Hot Oil Boiler.
