High-Efficiency Oil/Gas Fired Hot Water Boiler: Smart Heating Solutions

Clean and Quiet Thermal Power from Taiguo Boiler

Henan Taiguo Boiler designs high-performance oil and gas-fired hot water boilers for premium commercial heating. Consequently, our systems provide a stable and whisper-quiet heat source for luxury hotels and modern medical facilities. We integrate world-class burners and condensing technology to maximize fuel economy. Therefore, Taiguo remains the top choice for urban district heating and large-scale greenhouse projects.

---

Powering Modern Infrastructure with Silent, Intelligent Heating

For high-end commercial spaces, hospitals, and precision manufacturing zones, thermal energy must be invisible—silent, emission-free, and fully autonomous. Our WNS Series Hot Water Boilers are engineered to integrate seamlessly into modern building management systems (BMS). By combining the classic Triple-Pass Wet-Back structure with 2026-grade digital controls, Taiguo Boiler delivers a premium heating solution that prioritizes operational safety and ultra-low fuel consumption.

The “Silent Giant” – Low-Noise Combustion for Urban Zones

• The Challenge: In hotels or hospitals, boiler room noise can vibrate through the structure, affecting guest experience or patient recovery.
• The Taiguo Solution: We utilize Acoustic-Insulated Burner Shrouds and precision-balanced fan impellers.
• The Benefit: Even at full firing rate, our hot water systems maintain a noise level significantly lower than industry averages. Combined with our compact horizontal footprint, these boilers can be installed in basement or rooftop mechanical rooms without disturbing the building’s environment.

Full Condensing Technology – Pushing Efficiency to 104%

• The Tech: Standard boilers let 200 degree exhaust gas escape through the chimney.
• The Innovation: We equip our WDR/WNS hot water series with a Stainless Steel Condenser.
• The ROI: By recovering the latent heat from the flue gas and pre-heating the return water, we push thermal efficiency to 104% (based on LHV). For a 200-room hotel in Tashkent, this translates to over $15,000 USD in annual gas savings.

Breaking the 100% Efficiency Barrier: The Condensing Logic

In 2026, a high-performance hot water boiler must be a ‘Total Condensing’ unit. Standard boilers lose nearly 10-12% of fuel energy through latent heat in the flue gas. Taiguo’s WNS hot water series utilizes a Dual-Stage Integrated Economizer made of acid-resistant ND Steel (09CrCuSb). By cooling the exhaust gas below the acid dew point (approx. 55℃), we capture the latent heat of vaporization. This not only pushes the thermal efficiency to a verified 104-106% (LHV) but also significantly reduces the exhaust volume, lowering your facility’s carbon footprint per gigajoule of heat produced.

Smart IoT Controls – “Set and Forget” Reliability

• The Digital Edge: In 2026, you shouldn’t need a full-time boiler operator.
• The Automation: Our systems feature Weather-Compensated Control Logic. The Siemens PLC monitors the outdoor temperature and automatically adjusts the boiler’s firing rate to match the building’s actual heat load.
• Remote Monitoring: Access your boiler’s health via smartphone. If a sensor detects a minor deviation, our factory engineers can diagnose it remotely, preventing 99% of potential emergency shutdowns.

Safety Protocols & Global Compliance (EAC/CE )

• Triple-Layer Safety: Integrated with Flow-Rate Sensors, Low-Water Cutoffs, and Dual Over-Temperature Interlocks. If the circulation pump fails, the burner cuts off in milliseconds.
• Global Ready: Fully certified with EAC (TR CU) Passports for the Central Asian market. Every unit undergoes a rigorous 1.5x pressure hydrostatic test before leaving our Henan facility.

The High-Efficiency Oil/Gas Fired Hot Water Boilers is a modern heating system engineered for commercial buildings, industrial plants, and district heating applications requiring stable hot water circulation and intelligent energy management.

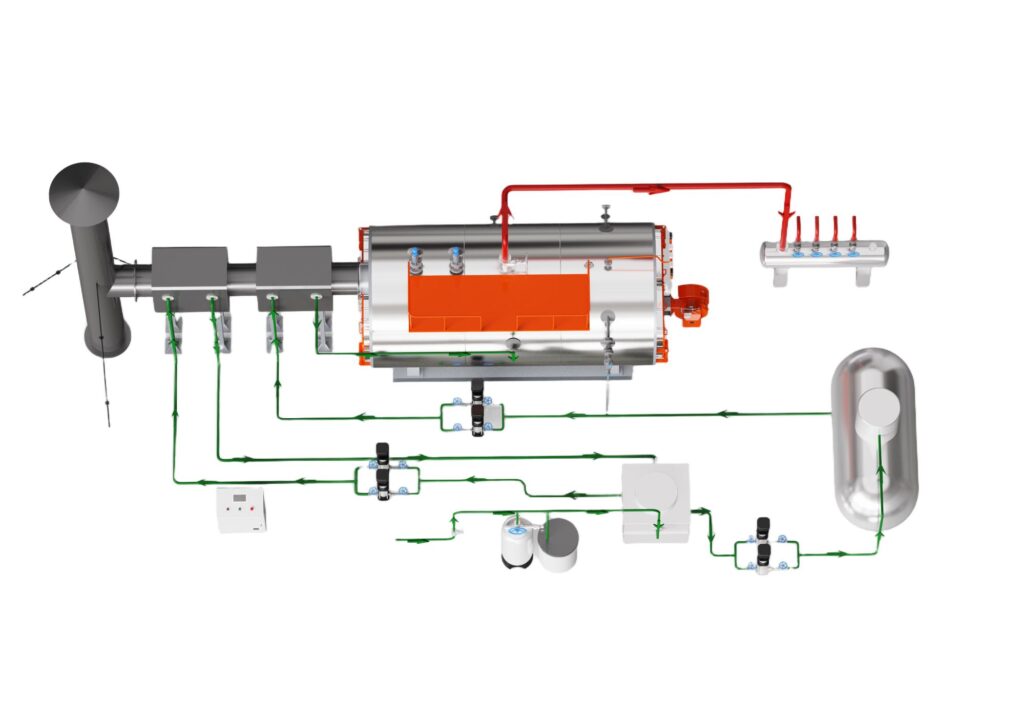

Built on a horizontal three-pass wet-back fire tube structure, this boiler combines:

• high thermal efficiency
• low NOx combustion
• PLC smart control
• fast response heating
• automatic load modulation
• low operating cost

Modern condensing oil/gas hot water boilers systems can achieve 96–99% thermal efficiency under low return water temperature conditions.

It is widely used for:

• hotels
• hospitals
• schools
• industrial workshops
• greenhouses
• office buildings
• district heating stations

Technical Specifications for Professional Heating of the hot water boilers

We offer both atmospheric and pressurized configurations to meet your local safety and plumbing codes. Furthermore, our vertical and horizontal designs allow for flexible installation in various boiler room layouts.

Item	Specification
Heating Capacity	0.35–14 MW
Working Pressure	0.7–1.6 MPa
Supply / Return Temp	95/70°C or Customized
Fuel	Natural Gas / Diesel / LPG
Thermal Efficiency	96–99%
Structure	Horizontal Three-Pass Wet-Back
Control	PLC Smart Touch Screen
Burner	Fully Modulating

---

Key Features of Smart Oil/Gas Hot Water Boilers

1) High-Efficiency Condensing Heat Recovery

The boiler integrates:

• economizer
• condensing heat exchanger
• low exhaust temperature recovery
• flue gas latent heat utilization

This allows the system to recover additional energy from exhaust gases, significantly reducing fuel consumption.

Typical condensing hot water boilers exceed 90% efficiency, while advanced systems can reach 96–99%.

---

2) Smart PLC & Modulating Burner Control of hot water boilers

The smart control system automatically adjusts firing rate according to real-time heat demand.

Main functions include:

• one-button startup
• supply water temp control
• outdoor temperature compensation
• burner modulation
• weekly timer schedule
• fault alarm
• remote monitoring
• unattended operation

This “smart heating” logic improves part-load efficiency and reduces short cycling. Advanced modulation control is recognized as one of the most energy-efficient boiler control strategies.

---

3) Hot water boilers Dual Fuel Flexibility: Oil / Gas

The burner can be configured for:

• natural gas
• diesel
• LPG
• light oil
• dual fuel gas + diesel

This is highly suitable for overseas markets where:

• gas supply fluctuates
• diesel is used as backup
• seasonal fuel pricing changes
• remote industrial sites need redundancy

---

4) Low Emission & Quiet Operation of hot water boilers

The optimized combustion chamber supports:

• low NOx burners
• stable flame
• reduced soot
• low smoke loss
• low vibration
• low noise operation

Future-Proof Emissions: Advanced Low-NOx Combustion

For hot water projects in urban centers (like Tashkent or Jakarta), meeting the 30 mg/Nm3 NOx limit is mandatory. Taiguo achieves this through a combination of Large Furnace Volume and FGR (Flue Gas Recirculation) technology. By increasing the furnace diameter, we create a ‘Cold Wall Effect’ that rapidly absorbs radiant heat, lowering the peak flame temperature—the primary driver of thermal NOx formation. When paired with our Siemens-controlled digital burners, the system maintains ultra-low emissions even at 20%partial load, ensuring zero-risk compliance with 2026 environmental audits.

This makes it ideal for urban heating projects and commercial buildings.

5）Hydraulic Resilience: Protecting the Pressure Vessel from Thermal Shock

The most common cause of hot water boiler failure is Thermal Shock—when cold return water hits a hot boiler shell. Taiguo’s 2026 engineering includes an Internal Water Distributor that pre-mixes the return water before it contacts the furnace surfaces. This, combined with our VFD-controlled circulation logic, allows the boiler to handle Variable Flow Systems seamlessly. Whether you are running a 5-star hotel with fluctuating demand or a large-scale textile washing line, our hydraulic design ensures a stable temperature gradient, preventing the weld fatigue and cracking found in ‘Budget’ boiler models.”

Precision Engineering: 10 Manufacturing Highlights of hot water boilers

We apply National Class-A manufacturing standards to ensure every hot water boilers operates with maximum reliability. As a result, our equipment delivers precise temperature control for thousands of projects worldwide.

1. Three-Pass Wet-Back Design of hot water boilers: This structure maximizes heat transfer while protecting the rear tube sheet from thermal stress.
2. Corrugated Furnace Integration of hot water boilers: The waveform furnace increases the heating surface and absorbs thermal expansion safely.
3. Advanced Condensing Technology: We utilize a flue gas condenser to recover latent heat, raising efficiency to over 98%.
4. Low-NOx Burner Support: Our boilers are compatible with premium European burners for eco-friendly operation.
5. Automatic Tube-to-Plate Welding: Robotic welding ensures zero leakage and uniform strength for the fire tubes.
6. Multi-Layer Insulation: High-density aluminum silicate fiber ensures the boiler shell stays cool to the touch.
7. Real-Time Pressure Monitoring: Redundant sensors provide constant feedback to the PLC for automated safety.
8. Stainless Steel Jacket Options: We offer brushed stainless steel outer packaging for a professional, clean-room appearance.
9. Hydraulic Performance Test: Every unit passes a pressure test at 1.5 times the design limit before leaving the factory.
10. One-Touch Intelligent Start: Our smart control system allows for fully unmanned operation after setup.

---

Strategic Hot Water Applications: Engineering the Thermal Comfort Zone

In 2026, the value of a Taiguo hot water boiler lies in its Precision Distribution. We don’t just boil water; we manage the thermal equilibrium of your entire facility.

1. Hospitality & Healthcare: The “Zero-Latency” Hot Water Loop

In 5-star hotels and modern hospitals, guest satisfaction and patient safety depend on instant, stable water temperatures.

• Domestic Hot Water (DHW) Preheating: Our boilers work in tandem with large Plate Heat Exchangers (PHE) to maintain a constant 60℃ loop. This prevents the growth of Legionella bacteria while ensuring that even during “Morning Peak” (when 500 guests shower simultaneously), there is zero temperature drop.
• Laundry & Sterile Services: By utilizing a dedicated high-temperature loop 90℃, Taiguo boilers provide the heat required for industrial washers and sanitizers, reducing the reliance on expensive electric boosters.

2. Industrial Workshops: Variable-Load Climate Control

Heating a 10,000㎡ workshop in Uzbekistan’s winter requires more than just raw power; it requires intelligent modulation.

• Workshop Winter Heating: Taiguo systems utilize Outdoor Reset Control . The boiler’s PLC monitors the external temperature and automatically adjusts the water flow temperature. If it’s -10℃ outside, the boiler ramps up; if it’s +5℃, it throttles down, saving up to 20% in fuel compared to fixed-temperature systems.
• Process Maintenance: For chemical or coating plants, our boilers maintain the “jacket temperature” of storage tanks, ensuring that raw materials remain at the precise viscosity required for production.

3. Commercial Real Estate: Integrated HVAC Synergy

For shopping malls and office towers, the boiler is the heart of the HVAC system during winter.

• Hydraulic Balancing: Taiguo boilers are designed for Low-Loss Header integration. This allows the boiler loop and the building’s radiator/AHU (Air Handling Unit) loops to operate at different flow rates, preventing pump conflicts and ensuring that the top floor of an office tower is just as warm as the lobby.
• Smart Dormitories: For schools and staff housing, our systems feature Time-of-Use (TOU) Scheduling, automatically lowering the temperature during working hours and ramping up before residents return, maximizing energy efficiency.

4. High-Tech Agriculture: The “Greenhouse Energy Hub”

In 2026, a greenhouse boiler is a productivity tool, not just a heater.

• Precision Root Zone Heating: By circulating warm water (30-35℃) through pipes located near the plant roots, Taiguo boilers accelerate growth cycles by15-20% in cold climates.
• CO2 Enrichment (Dual-Benefit): Our gas-fired boilers are equipped with Condensing Flue Gas Recovery. In advanced greenhouses, the cooled, cleaned CO2 from the exhaust can be diverted into the greenhouse to boost photosynthesis, turning “waste gas” into “plant food.”
• Livestock Climate Management: In poultry or dairy farms, our boilers provide consistent floor heating, significantly reducing juvenile mortality rates and improving feed conversion ratios (FCR) by maintaining the optimal metabolic temperature for the animals.

---

Technical Checklist: Application-Specific Integration Audit

Before finalizing your Hot Water system, verify these three “Application-Logic” matches:

1. Anti-Legionella Cycle Programming
   • Action: Ensure the PLC includes a weekly “High-Temperature Flush” mode (>70℃).
   • Technical Why: Critical for hotels and hospitals to kill waterborne pathogens in the dead-ends of the piping network.
2. Glycol Compatibility for Outdoor Lines
   • Action: If heating an outdoor area (like a football pitch or a loading dock), confirm the boiler seals are compatible with Propylene Glycol.
   • Technical Why: Anti-freeze additives change the viscosity and chemistry of the water; Taiguo uses specialized EPDM seals to prevent leaks in these configurations.
3. Buffer Tank Sizing for High-Mass Systems
   • Action: For greenhouses and large workshops, calculate the required volume of a Thermal Buffer Tank.
   • Technical Why: Large systems have high thermal inertia. A buffer tank prevents “Short-Cycling” of the burner, extending the boiler’s life and reducing fuel spikes by 10%.

---

Why Overseas Buyers Prefer Oil/Gas Smart Heating Boilers

For international projects, buyers focus on:

• fuel efficiency
• automatic operation
• stable winter heating
• backup fuel flexibility
• easy installation
• low maintenance

This boiler solves all major heating pain points for:

• Central Asia winter heating
• Middle East commercial hot water
• Africa hotel projects
• Southeast Asia food plant hot water

especially where natural gas is primary and diesel backup is required.

---

Recommended MW Heating Selection Table

Boiler Capacity	Recommended Heating Area
0.7 MW	6,000–8,000㎡
1.4 MW	10,000–12,000㎡
2.8 MW	20,000–25,000㎡
4.2 MW	30,000–35,000㎡
7 MW	50,000–60,000㎡
14 MW	100,000–120,000㎡

Quick estimation rule:

1 MW ≈ 8,000–10,000㎡ standard winter heating area

This is excellent for fast overseas project inquiry conversion.

Technical Checklist: Hot Water Boiler System Audit (2026)

Condensate Drainage & Neutralization

• Action: Verify the inclusion of a condensate neutralization tank.
• Technical Why: Condensate from gas is acidic (pH 3-5). Without neutralization, it will corrode your factory’s drainage pipes. Taiguo’s 2026 spec includes a magnesium-oxide-based neutralizing system as standard.

Back-up Fuel Capability (Dual-Fuel Burner)

• Action: Check if the burner is a ‘Dual-Fuel’ model (Gas + Oil).
• Technical Why: In regions like Uzbekistan, winter gas shortages are real. A dual-fuel setup allows you to switch to Light Oil (Diesel) in seconds, ensuring your heating or production never stops during a gas curtailment.

Shell Insulation & Radiation Loss

• Action: Confirm the use of 100mm high-density rock wool with stainless steel cladding.
• Technical Why: For a hot water boiler, ‘Radiation Loss’ is a silent thief. Taiguo ensures that the shell surface temperature remains within 15℃ of ambient, keeping the heat where it belongs—in your water.

Frequently Asked Questions (FAQ)

Need a Smart Hot Water Heating Boiler for Your Project?

If your building or factory needs stable, efficient, and fully automatic hot water heating, we can recommend the most profitable oil/gas boiler configuration.

We Support

• MW sizing
• hotel heating load calculation
• gas pressure matching
• diesel backup configuration
• chimney design
• district heating pipe loss analysis
• export customs support
• installation guidance

Contact us now for a customized smart heating solution.
