1. Project Overview Of DIA 1.5*8 M wood treatment equipment philippines
A leading timber processing plant in the Philippines expanded its industrial operations. The company specializes in manufacturing high-grade wood products for domestic construction and international furniture markets. To secure premium export contracts, the factory required an advanced industrial timber treatment infrastructure.
Our engineering division designed a turnkey technical solution tailored for the heavy-duty Wood Processing and Timber Treatment Industry. We supplied our standard vacuum pressure impregnation plant, Model TP1580, featuring a precise internal diameter of 1.5m and a shell length of 8m. They established a partnership with Taiguo Boiler to implement this complete wood treatment equipment solution.
2. Why Wood Preservation Is Important
Raw timber faces severe biological degradation during outdoor service cycles. Professional wood treatment equipment plays a critical role in transforming organic wood into durable structural materials. The automated preservation process achieves four core technical objectives to stabilize the wood cell structures:
- Deep Chemical Preservation: The system injects water-borne preservatives like CCA or ACQ deep into the timber sapwood. This heavy chemical impregnation shields the inner wood cells from environmental moisture absorption and subsequent structural swelling.
- Rigorous Insect Prevention: Specialized chemical preservatives toxic to wood-boring pests eliminate vulnerabilities to destructive organisms completely. The deep treatment layer protects wood fibers from severe subterranean termite attacks and marine borer damage.
- Advanced Anti-Mold Treatment: The automated vacuum pressure sequence suppresses aggressive fungal growth and subterranean decay effectively. Eliminating moisture from wood cell cavities prevents the formation of wood-rotting fungi to maintain absolute structural integrity.
- Maximum Service Life Extension: Proper mechanical pressure treatment extends industrial timber longevity by more than 3 times under extreme tropical weather conditions. Raw softwoods transform into high-value engineered lumber capable of resisting continuous tropical rain and soil contact reliably.
3. Customer Challenges
The Philippines possesses a hot, humid tropical climate with high annual rainfall. The client experienced major operational bottlenecks due to inadequate traditional chemical dipping methods:
- High Decay Rate: Untreated timber suffered rapid decay within short storage periods.
- Severe Termite Damage: Local termite infestations compromised structural safety margins heavily.
- Short Outdoor Service Life: Finished products failed premature field tests in outdoor environments.
- Poor Chemical Penetration: Superficial chemical coating failed to meet strict international export standards.
4. Equipment Configuration For DIA 1.5*8 M wood treatment equipment philippines
Our engineering division configured a heavy-duty vacuum pressure impregnation plant. The structural system utilizes our standard model TP1580. This advanced design comprises four core industrial modules to guarantee maximum chemical penetration:

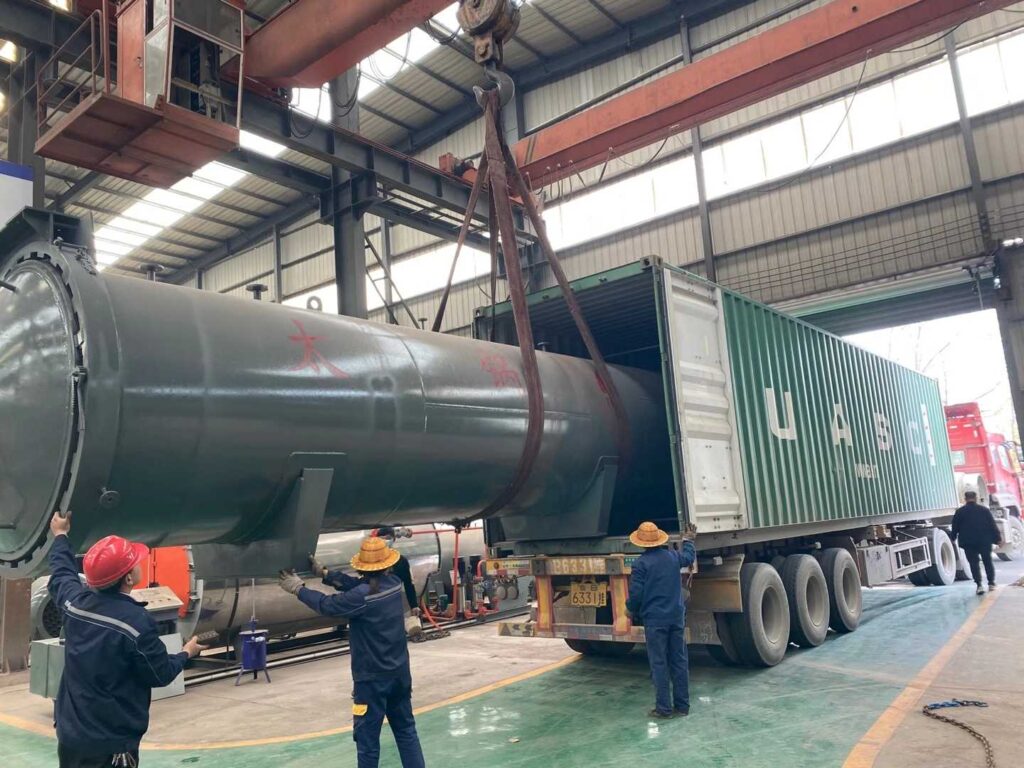

4.1 Heavy-Duty Preservation Tank (Model: TP1580) Of DIA 1.5*8 M wood treatment equipment philippines
- Industrial Vessel Dimensions: The preservation autoclave features a precise internal diameter of 1.5m and a shell length of 8m. This spacious internal volume accommodates large timber batches efficiently.
- Premium Structural Steel: We utilize high-strength Q345R pressure vessel steel to fabricate the main tank body.
- Advanced Welding & Testing: Automatic welding systems ensure flawless structural joints across the entire pressure body. Our quality team performs 100% non-destructive radiographic testing to guarantee zero structural defects.
- Hydraulic Safety Door: The door mechanism utilizes a patented hydraulic automated locking ring. Triple safety interlocks prevent the door from opening while the inner chamber maintains pressure.
- Anti-Corrosion Coating: The inner surface features a specialized multi-layer epoxy coating. This heavy shield resists chemical corrosion from aggressive preservatives like CCA and ACQ perfectly.
4.2 High-Efficiency Vacuum System Of DIA 1.5*8 M wood treatment equipment philippines
- Liquid Ring Vacuum Pump: We integrate a high-performance liquid ring vacuum pump into the skid. This industrial pump achieves a deep vacuum rating of -0.098 MPa rapidly.
- Deep Cell Extraction: The system extracts air and moisture from the deep wood cells completely. This process creates optimal negative pressure space inside the timber structure for maximum preservative absorption.
- Stainless Steel Separator: A heavy-duty stainless steel gas-liquid separator protects the vacuum pump. This component filters out volatile chemical vapors and moisture residues reliably.
4.3 High-Pressure Impregnation System Of DIA 1.5*8 M wood treatment equipment philippines
- Multi-Stage Pressure Pumps: The system utilizes robust multi-stage centrifugal pressure pumps to deliver steady chemical flow.
- Precise Pressure Control: The hydraulic pumps force chemical preservatives deep into the wood core smoothly. The system maintains a constant working pressure of 1.0 to 1.4 MPa throughout the impregnation cycle.
- Intelligent Refilling Valve: Automated pneumatic seat valves control the chemical refilling process. These high-precision valves prevent backflow and maintain absolute pressure stability.
4.4 Automated PLC Control Cabinet Of DIA 1.5*8 M wood treatment equipment philippines
- Siemens Smart PLC: A centralized Siemens PLC control cabinet manages the entire timber treatment process automatically.
- Real-Time Data Monitoring: Operators monitor vacuum levels, hydraulic pressure, fluid temperature, and cycle times via a crisp touch screen.
- Precise Cycle Logging: The intelligent software logs every operational cycle data file safely. The system generates traceable quality reports to help timber factories meet international export compliance audits.
- One-Key Operation: The automated program executes the complete “Initial Vacuum – Pressure Impregnation – Final Vacuum” sequence with one-key operation.
4.5. Wood Preservation Technological Process Of DIA 1.5*8 M wood treatment equipment philippines
4.5 Model TP1580 Process Workflow
Automated vacuum pressure impregnation sequence for 1.5m x 8m timber treatment plant.
Initial Vacuum
Operators load timber into the 1.5m x 8m tank. The liquid ring pump draws a -0.098 MPa deep vacuum for 30-45 minutes. This sequence opens timber pores completely.
Chemical Refilling
The control system maintains the internal tank vacuum. Automated pneumatic valves open immediately. Vacuum forces draw liquid preservatives into the chamber from reservoirs rapidly.
Pressure Impregnation
Hydraulic pumps increase internal pressure to 1.0-1.4 MPa. The automated control forces chemical preservatives deep into the timber core. This stage lasts 2-4 hours.
Pressure Release
The Siemens PLC cabinet releases the hydraulic pressure safely. Discharge valves open automatically. Remaining chemical solutions return to storage tanks smoothly to minimize waste.
Final Vacuum
The vacuum pump runs a final negative pressure cycle. This step extracts surface fluids to ensure touch-dry timber products. Operators can now unload containers safely.
6. Expected Benefits
The industrial timber treatment facility delivers measurable financial returns and technical upgrades:
| Technical Target | Conventional Dipping System | Taiguo Preservation System |
| Timber Service Life | Less than 5 years | Exceeds 25 years reliably |
| Chemical Core Penetration | Superficial (1-3mm) | 100% Full cell core saturation |
| Export Standard Compliance | Failed consistently | 100% Compliant with global codes |
Operational ROI Note: Fully automated pressure cycles reduce active chemical waste by 22%. The timber plant recovers total equipment capital costs within 9 months through premium export margins.
7. Related Solutions & Global Projects
This case study serves as a key gateway to our integrated wood processing industry energy matrix. Explore our specialized technical systems to optimize your entire factory production line:
- Wood Processing Industry Solution: Complete engineering blueprints for modern sustainable timber treatment plants.
- Industrial Steam Boiler: High-efficiency energy systems providing constant steam for timber drying kilns.
- Thermal Oil Heater: Precise high-temperature fluid heating tailored for wood veneer hot pressing lines.
- Engineering Services: Global turnkey solutions including custom plant design, local installation, and ASME compliance.
8. Technical FAQ
Can Model TP1580 handle both water-borne and oil-borne wood preservatives?
Yes. Our advanced multi-layer epoxy inner tank lining resists both water-borne preservatives and oil-borne solutions perfectly. Operators can switch chemical settings safely via the centralized Siemens PLC control cabinet.
How does Taiguo Boiler guarantee safety during extreme high-pressure cycles?
We manufacture the pressure vessel strictly under Class-A steel manufacturing protocols. The patented hydraulic automated locking door features triple mechanical and electrical safety interlocks. The chamber relieves internal pressure automatically if values exceed standard safety parameters.
Do you provide on-site foundation design and pipeline engineering layout services?
Yes. Our engineering division delivers complete turnkey solutions for global buyers. We supply detailed 3D plant layout blueprints, pipeline connection designs, and dispatch senior technical experts for on-site installation guidance.
