The Definitive Guide to Industrial Autoclaves: High-Capacity Steam Curing Solutions

Introduction

In modern heavy industry, achieving material strength and durability requires more than just heat; it requires a controlled, high-pressure environment. Consequently, the industrial autoclave for steam curing—also known as a pressure steam oven—has become the heart of large-scale production lines. As a specialized Class-I or Class-II pressure vessel, these systems are essential for the hydrothermal reactions needed in building materials and chemical processing.

Main Applications: From Construction to Aerospace

Taiguo’s autoclaves are engineered to serve diverse industries by providing stable high-temperature (up to 200°C) and high-pressure (up to 1.3MPa or more) environments.

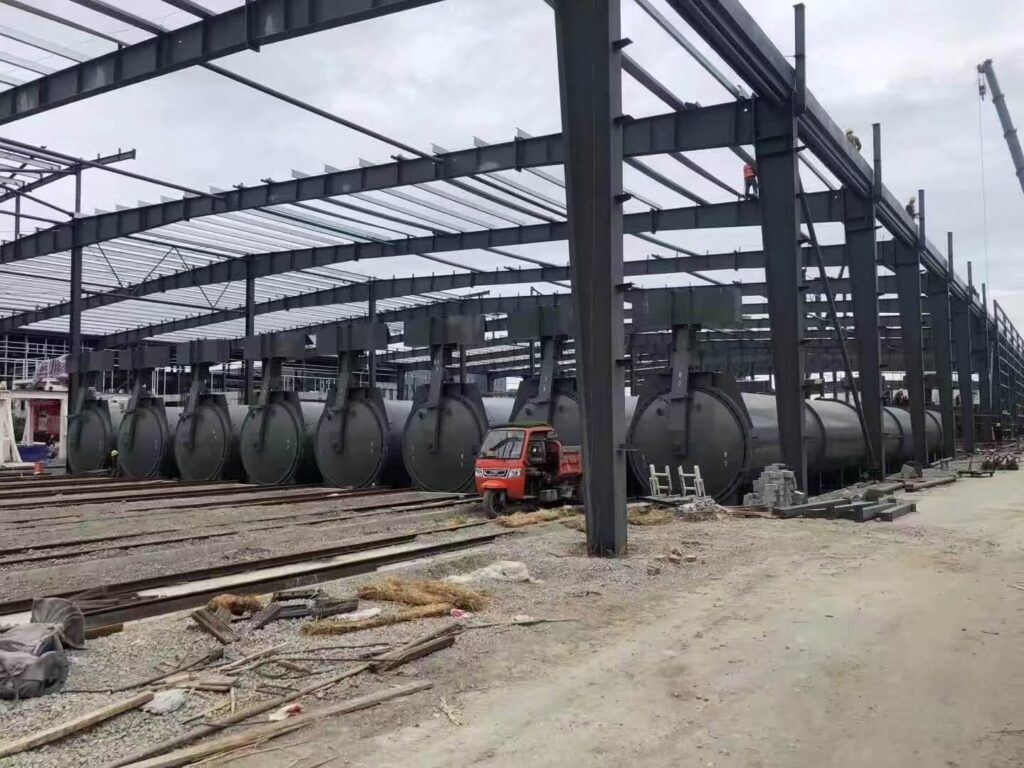

• Building Materials: It is the core of the AAC block autoclave curing system. By facilitating the CaO—SiO_2—H_2O reaction, it transforms raw mixtures into high-strength aerated concrete, pipe piles, and calcium silicate boards.
• Industrial Processing: Our equipment is widely used for rubber vulcanization, wood anti-corrosion treatment, and glass fiber curing.
• Advanced Manufacturing: It serves critical roles in heavy metal smelting, carbon fiber composite curing for aerospace, and high-temperature sterilization for the food and medical sectors.

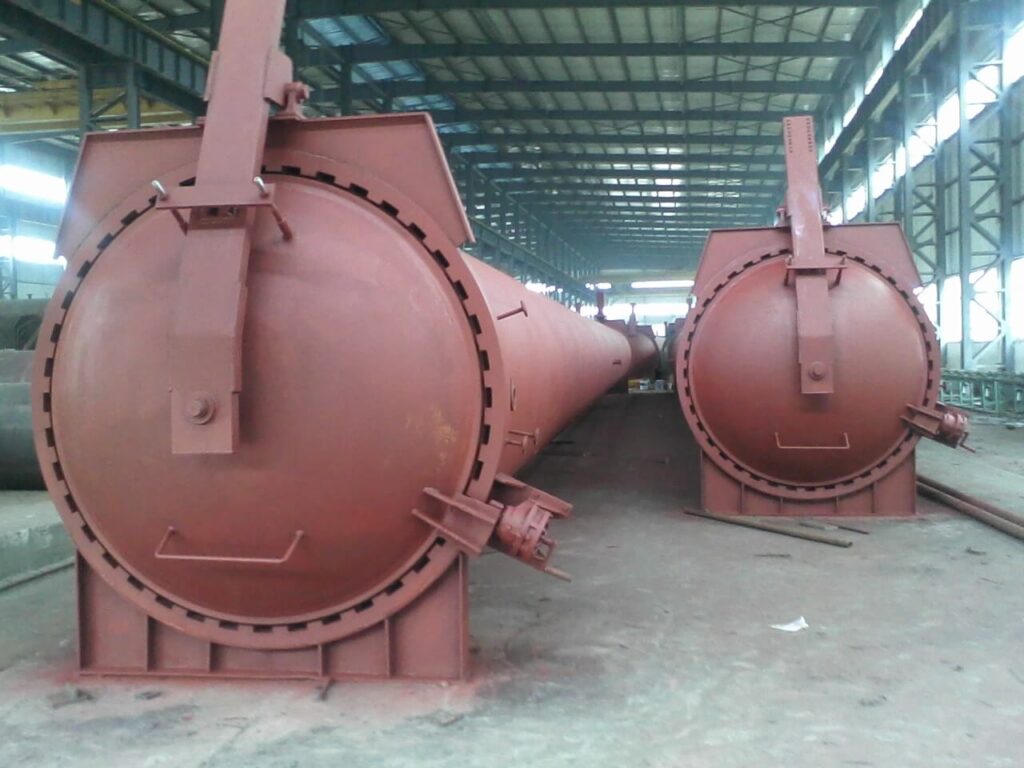

Key Structural Components of a Taiguo Autoclave

To ensure 24/7 reliability, our autoclaves are built with a focus on structural integrity:

1. Vessel Body Assembly: The cylinder is welded using high-strength 16MnR steel. The bottom features integrated tracks for curing trolleys, while the top includes precision interfaces for temperature and pressure sensors.
2. Quick-Opening Door (Kettle Cover): Fabricated from a single 16MnR plate, the door uses gear meshing for a perfect seal. We offer manual, electric, pneumatic, and hydraulic drive systems to fit your plant’s automation level.
3. Advanced Sealing & Safety: We utilize specialized EPDM or nitrile rubber rings that achieve self-sealing through internal steam pressure. Safety is guaranteed by a triple interlock system (electronic, manual, and mechanical) and precision safety valves to prevent overpressure risks.
4. Optimized Support System: Our vessels use a combination of fixed and movable supports. This allows for free thermal expansion, preventing deformation during high-temperature cycles.

Performance Features: Why Choose Taiguo?

• Strict Manufacturing Standards: All pressure-bearing parts undergo 100% X-ray radiography inspection (JB/T4730.3-2005). Our flanges meet Grade II standards, ensuring the highest welding quality.
• Energy Efficiency: We use premium insulation materials and optimized steam distribution pipes. Consequently, heat loss is minimized, and steam is distributed uniformly for consistent material quality.
• High Adaptability: From DIA2*21M to DIA2*31, we provide various specifications. Whether you need to cure 20,000 bricks or 39 cubic meters of AAC blocks, we have a custom-sized solution.

The Working Principle: A 4-Stage Process

Understanding the operation is key to efficiency:

• Feeding: Materials are loaded via trolleys and the door is sealed.
• Heating & Pressurization: Saturated steam is injected. Temperature rises to 190-200°C as pressure stabilizes at 1.3MPa.
• Constant Curing: This stage lasts 6-12 hours, allowing the hydrothermal reaction to fully develop the material’s strength.
• Depressurization & Cooling: Steam is slowly exhausted, and the door is opened once atmospheric pressure is reached.

Conclusion

Investing in a Taiguo industrial autoclave for steam curing is an investment in safety and production scale. We combine 40 years of manufacturing excellence with 2026’s smartest safety innovations. Empower your production line with the most reliable pressure vessels on the market.

Contact our technical team today for a customized quote and a detailed plant layout proposal.
