Project Overview Of Autoclave for AAC Block Production Line
In 2024, Henan Taiguo Boiler Manufacturing Co., Ltd. supplied a set of high-performance industrial autoclave for AAC Block Production Line，a newly built AAC (Autoclaved Aerated Concrete) block and panel production line located in Southeast Asia.
The project aimed to increase production efficiency, improve product strength, and ensure stable curing performance in compliance with international building materials standards.
The production line has a planned capacity of 300,000 m³ per year, requiring reliable pressure-curing equipment capable of operating continuously under high temperature and high pressure.
Customer Requirements Of autoclave for AAC Block Production Line
Operating long-term infrastructure construction materials manufacturing facilities successfully requires deploying highly resilient thermal processing equipment networks. Procuring a premier certified industrial autoclave for aac plant matrix dictates your final concrete block compressive strengths and annual corporate profit margins. Taiguo engineers mega-scale, heavy-duty horizontal pressure vessel configurations to process thousands of cubic meters of aerated concrete blocks flawlessly worldwide.
Our client operates a flagship, state-of-the-art concrete masonry manufacturing base running continuous twenty-four-hour processing schedules predictably. The massive automated production facility targets a premium annual capacity benchmark of 300,000 cubic meters of high-density AAC products. To sustain this intensive manufacturing cadence reliably, the plant’s curing sector requires rows of ultra-long, high-pressure steam autoclaves. Taiguo resolved this heavy manufacturing expansion demand by fabricating and commissioning an array of custom-engineered heavy industrial autoclaves comprehensively.
Key Requirements of Autoclave for AAC Block Production Line
- Large curing chamber for high daily output
- Stable operating pressure at 1.2–1.4 MPa
- Uniform steam distribution to enhance product consistency
- High durability for long-term continuous operation
- Easy maintenance and operator-friendly controls
- Compliance with pressure vessel safety regulations
After evaluating multiple suppliers, the customer selected TAIGUO due to our advanced manufacturing capabilities, proven performance in AAC industries, and comprehensive after-sales support.
Solutions Provided by TAIGUO-Autoclave for AAC Block Production Line
TAIGUO designed and delivered a complete autoclave curing solution tailored to the customer’s production needs.
Equipment Supplied

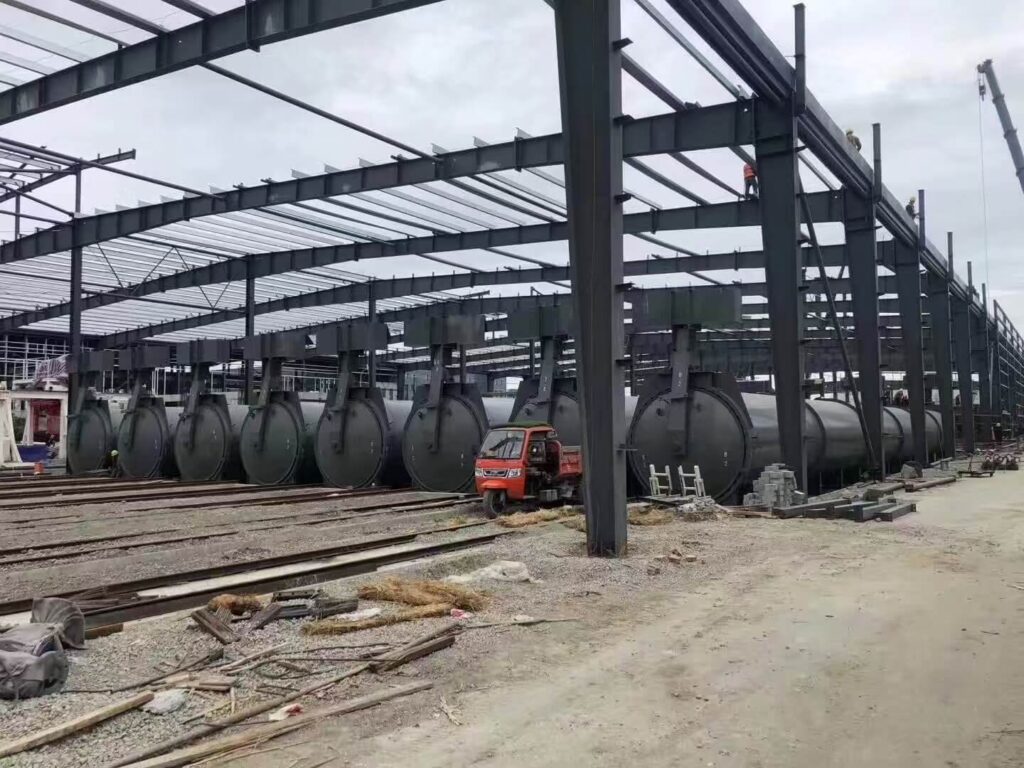

- Eight autoclaves, each:
- Diameter: 2.85 m
- Length: 36 m
- Working pressure: 1.4 MPa
- Material: Q345R (pressure vessel steel)
- Door type: pneumatic quick-opening safety lock
- Control system: PLC-based pressure and temperature monitoring
Engineering Advantages Of Autoclave for AAC Block Production Line
- Enhanced steam circulation ensures even pressure distribution
- High-quality rubber sealing reduces steam loss significantly
- Automated safety interlock prevents the autoclave from opening under pressure
- Thick insulation layers reduce heat loss and operational cost
- Vessel Physical Dimensional Boundaries: We delivered multiple horizontal heavy autoclaves measuring 2.85 meters in interior diameter and a stunning 36 meters in longitudinal length. These massive steel tunnels support a rated design pressure boundary of 1.3 MPa alongside operating heat limits of 195°C safely.
- Premium 16MnR Carbon Boiler Steel Plates : Our pressure vessel manufacturing division forms the autoclave main shells utilizing elite, high-thickness 16MnR alloy carbon steel plates exclusively. This metallurgy delivers exceptional structural tensile strengths to counteract relentless pressure cycling stresses and resist deep chemical surface oxidations.
- Full-Body Post-Weld Heat Treatment Matrixes : We route the completely welded 36-meter autoclave vessels into our oversized computerized annealing furnaces for overall post-weld heat treatment. This metallurgical stress-relief cycle eliminates hidden molecular crystal welding fatigues completely to prevent shell cracking emergencies throughout decades of runtime.
The entire system was designed to integrate smoothly with the customer’s existing boiler and steam pipeline setup.
Conquering the Banana Effect: Integrating Multi-Point Condensate Drainage Networks For Autoclave for AAC Block Production Line
Sustaining absolute horizontal vessel straightness across thirty-eight-meter thermal curing spaces requires executing flawless fluid dynamic liquid managements. Mega-scale industrial autoclaves harbor high-temperature dry saturated steam at the top while collecting cooler liquid water condensate along the bottom. This thermodynamic layout generates a severe longitudinal top-to-bottom temperature gradient, frequently exceeding 40°C across standard low-end curing tunnels entirely.
This thermal imbalance triggers uneven metal expansion rates, forcing the long steel cylinder to warp upward like a banana curvature. This severe mechanical deflection jams the wheel tracking lines while completely twisting the heavy front door sealing flange interfaces. Taiguo eliminates this structural deformation hazard by integrating an advanced, automated multi-point bottom condensate drainage header manifold flawlessly. Our smart sensing array tracks liquid accumulations, operating pneumatic dump valves sequentially to flush out cooler fluids instantly around the clock.
- Triple-Layered Mechanical-Hydraulic Safety Interlocking : > We install independent mechanical, manual, and automated hydraulic lock pins directly onto the main rotating door ring gear mechanisms. The central microprocessor locks the entry doors fully closed until internal pressure transducers verify a complete zero-pressure state inside.
- Dovetail High-Temperature Silicone Rubber Sealing Rings: > Our door profiles house a specialized dovetail grooves containing high-elasticity, high-temperature resistant silicone rubber sealing lip components. High-pressure steam enters the back of the groove automatically to wedge the rubber ring tight against the flange, stopping leakages completely.
- Oversized Heavy-Duty Forged Steel Flange Rings: > We manufacture the massive matching door ring gears utilizing premium, heavy forged alloy steel blocks machined via CNC lathes. This dense metallurgical structure resists relentless high-temperature continuous thermal cycle fatigue, preventing localized seal gaps forever.
Thermal Optimization: Steam Cascading & Condensate Flash Recovery -Autoclave for AAC Block Production Line
A 300,000 m3 capacity demands massive steam consumption. To optimize OPEX, Taiguo implemented a Multi-Autoclave Cascading System. When one autoclave finishes its curing cycle, the ‘residual pressure’ is not vented but transferred to a neighboring vessel for pre-heating. Combined with our Integrated Flash Steam Recovery Tank, we recapture the latent heat from high-temperature condensate to pre-heat the AAC slurry. This ‘Circular Thermal Logic’ reduces total boiler fuel consumption by 8-12%, a saving that translates into hundreds of thousands of dollars annually for a plant of this scale.
Quality Assurance: Eliminating Micro-Cracks via Linear Pressure Gradients -Autoclave for AAC Block Production Line
The structural integrity of an AAC block is determined in the first 60 minutes of the curing curve. Rapid pressurization causes internal thermal stress, leading to micro-cracks. Our project in this 300,000 m3 facility utilizes a PLC-driven Proportional Control Valve System. This allows for a perfectly linear pressure ascent and, more importantly, a controlled Vacuum Extraction Phase. By precisely managing the ‘Steam-to-Air’ ratio inside the vessel, we ensure uniform heat penetration to the center of the cake, achieving a 99.5% qualified product rate even at maximum throughput.
Turnkey Onsite Installation Engineering & Trans-Continental Overland Rigging Logistical Loops
Optimizing the multi-decade machinery investment return metrics of your industrial autoclave for aac plant package requires comprehensive field logistical coordination. Shipping multiple 36-meter, fifty-ton single-piece Autoclave for AAC Block Production Line across trans-continental overland land-border rail corridors demands meticulous routing preparations. Taiguo’s international trade logistics division supervised the entire heavy container freight cargo rigging and border customs clearance procedures smoothly.
Upon site delivery, our traveling field service engineers guided the local civil engineering crews to anchor the autoclave support saddles. We design custom variable-motion roller bedding foundations to accommodate the vessel’s natural 60mm longitudinal thermal expansion movements smoothly. We aligned the interior steel railway tracks perfectly with the factory’s main transfer traverser grids using precision digital laser tracking tools. This physical structural balancing ensures friction-free green concrete cake car transit loops to eliminate material block fracturing scrap risks.
- Integrated Cast Iron Moving Saddle Beds: Permits smooth, horizontal sliding thermal expansion movements while completely blocking structural foundation crack stresses.
- Bilingual Technical Blueprint Pedigrees: We deliver comprehensive Russian/English translated technical Boiler Passports containing 100% radiographic x-ray weld maps directly with your cargo.
Commissioning Achievements For Autoclave for AAC Block Production Line
- Autoclaves passed hydrostatic pressure testing on the first attempt
- PLC control system was calibrated for automatic operation
- Operators received safety training and daily operation instructions
- Initial curing cycles reached pressure and temperature stability within 15 minutes
- Production line achieved full capacity in less than one week
Project Results About Autoclave for AAC Block Production Line
After three months of stable operation, the following improvements were recorded:
- ✔ 18% Increase in AAC Block Strength
- Uniform steam curing significantly improved the compressive strength and density consistency.
- ✔ 12% Reduction in Steam Consumption
- Optimized heat retention and sealing helped decrease energy loss.
- ✔ Higher Production Efficiency
- The factory maintained 22 curing cycles per week, meeting its annual output target.
- ✔ Reduced Maintenance Costs
- High-quality pressure vessel steel and durable sealing components minimized downtime.
- ✔ Improved Product Quality Stability
- Dimensional accuracy and surface quality of AAC blocks improved, reducing rejection rate by over 10%.
Customer Feedback-Autoclave for AAC Block Production Line
The client expressed high satisfaction:
“TAIGUO’s autoclave system exceeded our expectations.
The curing quality is stable, energy consumption is lower, and the equipment is easy to operate.
We plan to expand our AAC production line next year and will continue partnering with TAIGUO.”
Why TAIGUO Autoclaves Are Ideal for AAC Production Lines
- Strong and durable pressure vessel manufacturing
- Uniform curing for superior AAC strength
- Intelligent and safe PLC control
- Energy-saving design
- Fast delivery and professional on-site support
- Over 45 years of experience in boilers and autoclaves
Technical Checklist: AAC Autoclave Capacity Audit (300k m3 Scale)
Vessel Structural Fatigue Analysis (Finite Element Method)
- Action: Request the FEM report for the autoclave’s saddle supports and flange welds.
- Technical Why: Constant loading and unloading of heavy AAC trolleys creates localized stress. Taiguo’s 2026 designs use Q345R pressure-vessel plate with reinforced stress-relief zones to prevent longitudinal cracking over decades of use.
Automated Condensate Drainage Efficiency
- Action: Ensure the use of high-capacity Inverted Bucket Traps or continuous-drainage ball valves.
- Technical Why: If condensate accumulates in the bottom of the vessel, it creates a ‘Cold Spot,’ leading to uneven curing of the bottom row of blocks. Taiguo’s drainage logic ensures zero-water retention during the dwell phase.
Safety Interlock Redundancy (Mechanical + Electronic)
- Action: Confirm the presence of a mechanical ‘Safety Pin’ that prevents door rotation while the vessel is pressurized (>0.02MPa).
- Technical Why: In a high-speed plant, human error is the biggest risk. Our dual-layer interlock system is the primary reason Taiguo remains the preferred choice for safety-conscious Tier-1 contractors.
Construction materials manufacturing facility engineering managers must enforce strict hourly control room tracking schedules to safeguard continuous curing paths. Instruct your local technical maintenance crews to execute our verified field engineering checklist across every active shift change safely:
- Audit Internal Vapor Pressure Transducer Meters: Confirm curing line pressures sustain a constant 1.3 MPa baseline during the main holding cycle hours.
- Check Automated Bottom Condensate Steam Traps: Verify lower pneumatic drain valves cycle regularly to prevent cooler liquid water accumulation layers.
- Monitor Door Flange Dovetail Sealing Statuses: Inspect the main front sealing ring interfaces to confirm zero high-pressure vapor leak trails.
- Verify Manual Mechanical Safety Interlock Pins: Physically audit the locking status handles before opening upstream steam intake manifold headers.
- Track Support Roller Saddle Sliding Clearances: Ensure longitudinal expansion pathways remain unobstructed to permit smooth horizontal steel expansions.
FAQ: Essential 2026 AAC Industry Insights
Why is the TAIGUO Autoclave for 300,000 m³/Year AAC Block Production Line the Strategic choice for 2026?
In 2026, high volume translates to a faster ROI. This Validated high-load design ensures that while maintaining Superior curing quality, you can minimize cycle times. For a 300,000 m³ facility, this Essential efficiency is the Reliable foundation for meeting Authoritative production targets.
How does this system comply with the 2026 Global Energy Audits?
Industrial carbon audits are stricter than ever this year. The TAIGUO Autoclave for 300,000 m³/Year AAC Block Production Line features Superior waste heat recovery. By capturing exhaust steam through a Validated heat exchange system, it reduces the total line’s energy demand by over 15%, ensuring your factory passes Authoritative green building certifications.
Is the control system ready for 2027 Industrial IoT (IIoT) upgrades?
Yes. As part of our Strategic 2026 roadmap, the control system includes Essential digital interfaces. It supports current remote monitoring and can Seamless integrate with the 2027 IIoT platforms, ensuring your investment remains Authoritative and competitive for the next decade.
How does Taiguo’s autoclave engineering design completely prevent the catastrophic “banana bowing” warping failure?
Standard commercial autoclaves allow massive cold condensate water layers to pool silently along the lower shell valley during active holding runs. This fluid presence creates a dangerous vertical temperature gradient between the hot upper steam zone and the cool bottom metal, forcing the steel to warp upward like a banana. Taiguo completely overcomes this structural stress hazard by deploying a multi-point automated bottom condensate extraction manifold. This system senses fluid lines and flushes out stagnant water pockets instantly, maintaining a highly uniform temperature profile to keep the cylinder straight.
Why is the overall post-weld heat treatment (PWHT) annealing process critical for a 36-meter AAC autoclave shell?
Rolling and welding heavy-thickness carbon steel plates together releases massive, highly concentrated microscopic mechanical residual stresses along fusion lines. If left un-annealed, these internal micro-stresses combine with relentless high-pressure cycling loads to crack pipe welds within months of field runtime. Taiguo eliminates this structural failure risk by routing the completed 36-meter autoclave body straight into our computerized heat treatment furnaces. We bake the entire pressure shell under controlled high temperatures to restore molecular uniformity, securing multi-decade vessel lifespans safely.
What specific legal documentation does Taiguo supply to clear strict Gospromtekhnadzor or Depnaker safety registration audits?
Local technical safety inspection watchdogs classify large-diameter industrial autoclaves as critical high-hazard infrastructure assets operating inside factory spaces. Operating unregistered equipment triggers immediate administrative site closure orders and lengthy legal penalties. Taiguo eliminates registration delays by bundling a comprehensive, factory-certified technical documentation dossier containing full international ASME/CE credentials with every cargo. We deliver official bilingual technical Boiler Passports, 100% radiographic x-ray weld track maps, and factory hydraulic pressure validation test logs flawlessly.
Can a 300,000 m³/Year factory recycle residual exhaust steam after completing an autoclave curing cycle to save fuel costs?
Yes, venting high-pressure saturated vapor directly out of the chimney stack after a 12-hour curing cycle wastes immense amounts of hard currencies. Taiguo designs advanced multi-vessel steam cascading energy recycling networks utilizing high-capacity automated manifold headers seamlessly. When Autoclave A completes its curing cycle, our system routes its residual high-pressure exhaust vapor straight into the freshly loaded Autoclave B to handle its early vacuum heating runs. This direct thermodynamic cascading capture reduces your central boiler room fuel consumption weights by over 30% flawlessly.
