DZL Series Fully Automatic Chain Grate Coal Fired Steam Boiler

Introduction

For industries requiring high-capacity and stable steam, coal remains a critical and cost-effective energy source in many regions. Consequently, the DZL series Automatic Chain Grate Coal Fired Steam Boiler has been engineered by Henan Taiguo Boiler to maximize energy output while minimizing manual labor. This horizontal, single-drum, water-fire tube boiler is a “package” solution that combines traditional power with 2026’s smartest automation.

Mastering Solid Fuel Kinetics: Precision Air-Staging across Heavy Chain Grates

Operating long-term brick manufacturing or chemical refinery complexes utilizing solid carbon fuels requires advanced thermodynamic control arrays continuously. Deploying an elite automatic chain grate coal fired steam boiler matrix dictates your final workshop processing thermal efficiencies and monthly fuel procurement cash flows. Taiguo constructs heavy-duty longitudinal double-drum water-tube steam plants to transform bulk solid cargoes into reliable industrial processing power worldwide.

Standard industrial solid fuel furnaces suffer massive energy dropouts due to experiencing highly uneven under-grate primary air distributions entirely. Raw lump fuel variations trigger erratic air channeling paths that cause localized cooling and incomplete carbon burning runs predictably. This thermal imbalance leaves substantial amounts of unburned carbon fuel particles trapped inside the discharged bottom ash wastes prematurely. Our advanced alternative combustion division overcomes this thermodynamic deficiency by structuring multi-zone independent air plenum chambers systematically.

• Multi-Zone Under-Grate Air Plenums Of Automatic Chain Grate Coal Fired Steam Boiler > We segment the lower primary combustion draft bed into five separate, fully sealed air distribution compartments flawlessly. Plant technicians adjust individual zone dampers dynamically to match the specific burning characteristics of the fuel bed as it moves forward.
• Pneumatic High-Velocity Overfire Air Jets Of Automatic Chain Grate Coal Fired Steam Boiler : > High-pressure secondary blowers blast strategic auxiliary oxygen streams straight into the high-temperature radiant furnace core zones systematically. This aggressive turbulence forces rapid gas mixing to achieve 99% volatile gas burnouts while dropping stack carbon monoxide fractions perfectly.
• Corrugated Refractory Ignition Arch Layouts Of Automatic Chain Grate Coal Fired Steam Boiler: > We shape the front and rear burning arches using premium, high-temperature alumina castable refractory materials custom-profiled precisely. This geometric layout radiates intense thermal energy back down onto fresh incoming fuel beds to accelerate raw fuel ignition velocities cleanly.

Efficient Combustion with Automatic Chain Grate Technology

The heart of the DZL series Automatic Chain Grate Coal Fired Steam Boiler is its advanced chain grate stoker. This system allows for the mechanized feeding of coal, ensuring that it is distributed evenly across the combustion surface. Therefore, the fuel burns more completely, reducing the amount of unburnt carbon in the ash. Moreover, the independent air chambers allow operators to adjust the air supply to match different stages of the coal combustion process. Consequently, you achieve a stable flame and high thermal efficiency that manual boilers simply cannot match.

High-Performance Threaded Fire Tubes

To ensure that every calorie of heat is captured, we utilize high-efficiency threaded fire tubes inside the boiler drum. These specialized tubes create turbulence in the flue gas, which increases the heat transfer coefficient by a significant margin. Therefore, the boiler reaches the required steam pressure quickly and maintains it even during heavy loads. Furthermore, the water-fire tube structure provides a large heating surface area. Thus, the DZL series Automatic Chain Grate Coal Fired Steam Boiler delivers high-quality steam while maintaining a compact horizontal profile.

Simplified Installation and Robust Construction Of Automatic Chain Grate Coal Fired Steam Boiler

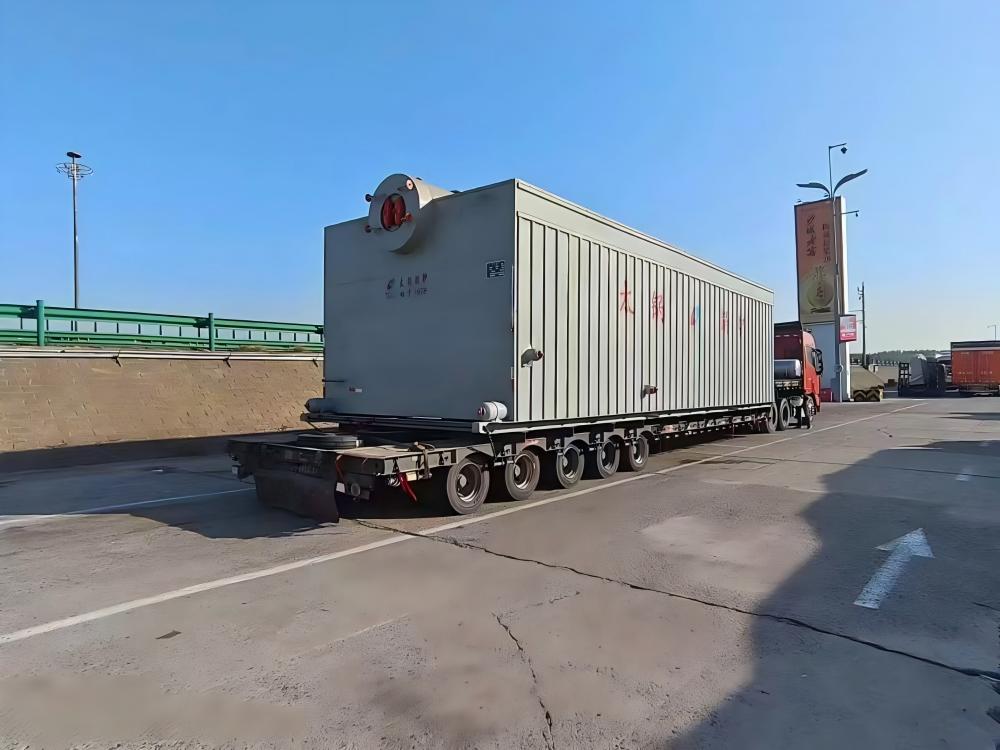

For many global clients, reducing the complexity of on-site setup is a priority. Therefore, the DZL series Automatic Chain Grate Coal Fired Steam Boiler is designed as a “fast-assembly” boiler. The main body and the grate are pre-assembled in our factory and shipped as a complete package. Consequently, the on-site installation time is drastically reduced, allowing you to start production sooner. Moreover, we use high-grade boiler steel and precision robotic welding to ensure that the drum and headers can withstand decades of continuous operation.

Smart Control and Environmental Compliance Of Automatic Chain Grate Coal Fired Steam Boiler

Safety and sustainability are core features of Taiguo’s engineering. Every DZL series Automatic Chain Grate Coal Fired Steam Boiler is equipped with an AI-driven PLC control system. This technology monitors steam pressure, water levels, and combustion status in real-time. Furthermore, to meet 2026’s strict environmental regulations, our systems are integrated with high-efficiency multi-cyclone dust collectors and desulfurization units. Thus, you can achieve powerful industrial output while ensuring that your flue gas emissions meet local air quality standards.

Heavy-Duty SZL Longitudinal Double-Drum Structures Housing Advanced Grate Metallurgy

Sustaining continuous twenty-four-hour manufacturing operations demands highly resilient, fully certified industrial pressure vessel architectures predictably. Large industrial plants processing hundreds of tons of materials daily require continuous and high-volume saturated steam masses reliably. Traditional single-drum boiler frameworks suffer critical water carryover disruptions whenever downstream processing equipment lines execute sudden heavy drawing cycles.

Taiguo eliminates these pressure collapse failure risks by implementing a longitudinal double-drum arrangement housing an advanced traveling grate framework seamlessly. We position the upper and lower heavy-duty steam cylinders along the precise longitudinal center lines flawlessly. This double-drum orientation expands internal water buffer capacities to absorb severe plant steam consumption fluctuations without dropping header pressures. Beneath this water-tube core, our heavy automated chain grate assembly moves fuel beds smoothly across the active furnace floor systematically.

• High-Chromium Scaled Traveling Grate Bars: > We cast our traveling grate bars utilizing premium high-chromium alloy steel formulations to resist severe thermal deformation stress. The overlapping scaled design prevents fine solid particles from sifting through the grate bed while sustaining smooth mechanical movements around the clock.
• Variable-Speed Hydraulic Grate Drive Transmissions : > Heavy-duty industrial gearbox reducers manage traveling stoker velocities dynamically through responsive electronic variable frequency drive (VFD) controls. Operators tune grate transit times precisely matching variable regional fuel grade alterations to guarantee complete ash disposal actions automatically.
• Integrated Side-Sealing Carbon Steel Profiles : > We install adjustable heavy cast iron side seals along both flanks of the active traveling stoker bed systematically. This physical barrier blocks untreated ambient cold air bypass leaks while stopping raw solid coals from jamming moving chain components completely.

Dual-Stage Emissions Abatement: Clearing Strict Environmental Code Audits

Maximizing the long-term capital utility returns of your automatic chain grate coal fired steam boiler procurement requires advanced tail-end environmental clearing networks. Raw solid fuel combustions yield substantial volumes of heavy flying carbon soot and abrasive silica fly ash particulate residues consistently. Sourcing equipment from uncertified secondary workshops lacking active emissions cleanup hardware triggers immediate, irreversible administrative site closure orders predictably. Taiguo deploys multi-stage exhaust filtering architectures to guarantee flawless compliance validations across all regional industrial zones smoothly.

Our heavy engineering division routes raw combustion exhaust gases straight through an integrated multi-cyclone inertial dust collector assembly pro-actively. This primary separator drops heavy carbon grit fractions out of the flue stream before transitions into automated pulse-jet baghouse clusters. The secondary filtration fabric blankets trap 99.9% of ultra-fine suspended fly ash particles, smashing stack particulate concentrations below 30mg/Nm³ cleanly. Furthermore, we position premium finned-tube economizers before chimney entries to capture sensible heat, driving total efficiencies above 88% safely.

Hourly Shift-Change Control Room Operational Checklist for Solid Fuel Boiler Supervisors

Solid-fuel processing facility engineering managers must enforce strict hourly control room tracking schedules to preserve high-efficiency steam generation baselines safely. Instruct your local technical maintenance crews to execute our verified field engineering checklist across every active shift change:

• Audit Multi-Zone Under-Grate Plenum Blast Pressures: Adjust individual air zone dampers to match the specific fluidization densities of active coal beds.
• Check Automatic Water-Seal Deslagging Pit Levels: Confirm sealing water flow rates remain constant to prevent ambient air bypass leak disruptions completely.
• Monitor Multi-Cyclone Lower Dust Storage Hoppers: Discharge collected silica soot fractions regularly to prevent upper gas passage chokings completely.
• Track Economizer Inlet Water Thermal Gradients: Confirm incoming feed-water temperatures remain above 105°C to eliminate tube oxygen pitting hazards.
• Verify PLC Control Drive Gearbox Temperatures: Audit heavy traveling stoker transmission lubrication levels to ensure operating heats remain beneath 65°C bounds.

FAQ: Essential 2026 Industrial Insights

Conclusion

The DZL series Automatic Chain Grate Coal Fired Steam Boiler from Taiguo Boiler represents 40 years of manufacturing excellence. We provide a solution that is rugged enough for the toughest environments but smart enough to optimize your fuel costs. We help you achieve the stability and power your production line needs to thrive.

Contact our technical sales team today for a customized proposal and discover why the DZL series is the trusted choice for coal-fired steam production worldwide.

Are you searching for a highly resilient, fully automated solid-fuel thermal powerhouse capable of maximizing your manufacturing output and clearing strict air audits flawlessly? Contact premier heavy machinery author Taiguo today to receive customized plant layout blueprints and highly competitive factory-direct quotes rapidly.
