Ultimate Selection Guide: Best Steam Boiler for 280 Single Facer (2026)

Introduction: Why Your 280 Single Facer Needs Precise Steam

The 280 single facer (280mm roller diameter) is the heart of any corrugated production line. However, many plant owners in Uzbekistan, the Philippines, and Southeast Asia struggle with inconsistent board bonding. As a professional industrial boiler manufacturer, Taiguo Boiler identifies the root cause: poor thermal management.

Choosing the right steam boiler for 280 single facer determines your final product quality. This guide provides a technical deep-dive into matching your boiler capacity with your production goals.

---

1. The Critical Link Between Steam Pressure and Bonding

To create high-quality corrugated board, starch glue must gelatinize instantly. This process requires the pre-heater and pressure rollers to maintain a constant, high surface temperature.

The Physics of Corrugation

• Heat Transfer: Saturated steam releases latent heat when it touches the roller walls.
• Temperature Requirement: For standard 120g-140g paper, the roller surface must reach 160°C – 175°C.
• Pressure Threshold: You must operate your boiler at 0.8 MPa – 1.0 MPa to hit these temperatures. Using a low-pressure 0.16 MPa boiler only provides 129°C, which causes glue failure.

---

2. Technical Specifications & Boiler Sizing

Choosing the wrong capacity leads to “pressure drops” during peak production.

Calculated Capacity Requirements

A standard 280 single facer consumes roughly 0.3 to 0.4 tons of steam per hour. However, Taiguo Boiler recommends a 0.5T/h or 1.0T/h Steam Boiler for 280 Single Facer.

• Why the redundancy? Cold starts in winter or running heavy 250gsm kraft paper requires a “thermal buffer.” This prevents the machine from slowing down during high-load periods.

Key Technical Benchmarks:

1. Steam Dryness: Ensure dryness is >98%. Wet steam dampens the paper and ruins the bond.
2. Automation: Use VFD (Variable Frequency Drive) burners. These adjust fire intensity based on real-time steam demand.
3. Feedwater Quality: Total hardness must be <0.03 mmol/L. Scale buildup of just 1mm increases fuel consumption by 5%.

---

3. Steam Pressure Optimization for Different Paper Grades

Different paper weights require different thermal energy levels. Use this table to optimize your 280 single facer performance:

Paper Weight (Gsm)	Recommended Pressure	Steam Temp (°C)	Target Speed (m/min)
80g – 110g	0.4 – 0.6 MPa	151°C – 165°C	120+ m/min
120g – 160g	0.6 – 0.8 MPa	165°C – 175°C	100 – 120 m/min
180g – 250g+	0.8 – 1.0 MPa	175°C – 184°C	80 – 100 m/min

---

4. Fuel Cost Analysis of Steam Boiler for 280 Single Facer: Gas vs. Biomass

Operational cost is a primary concern for plant managers. Taiguo Boiler offers two main series for the packaging industry.

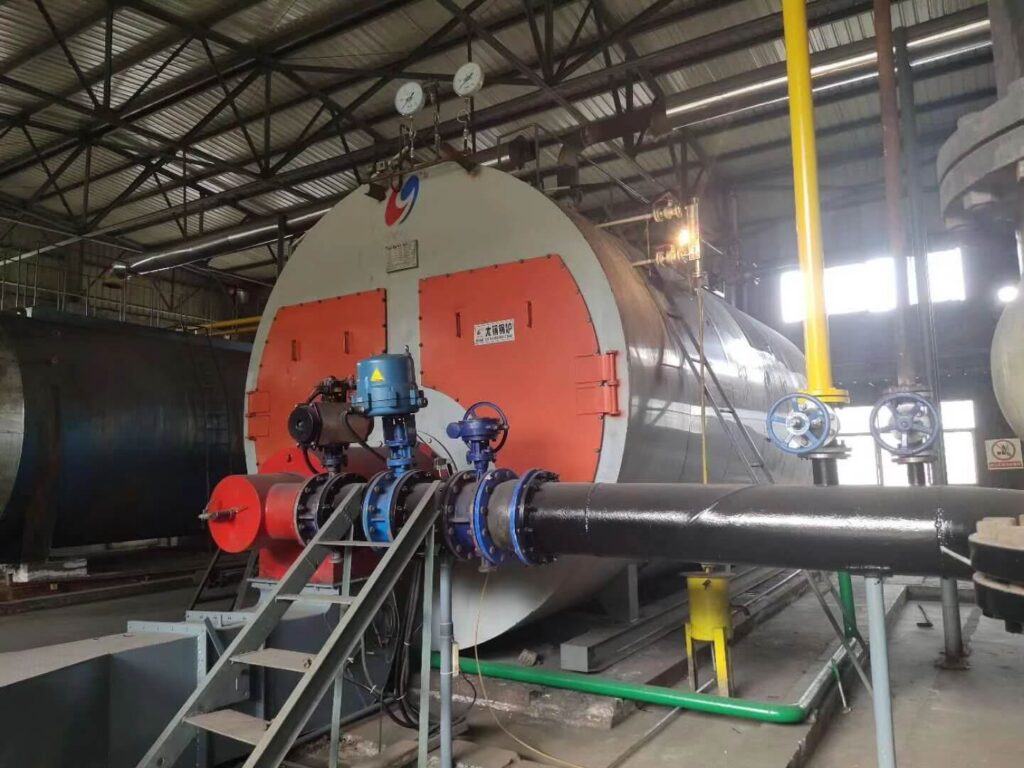

WNS Series (Gas/Oil Boilers) Steam Boiler for 280 Single Facer

• Pros: 98% efficiency, fully automatic, clean operation.
• Cons: Higher fuel cost in regions without cheap natural gas.
• Best For: Urban factories in the Philippines or areas with strict emission laws.

DZH Series (Biomass/Coal Boilers) Steam Boiler for 280 Single Facer

• Pros: Uses rice husks or wood chips. Saves up to 40% in fuel costs.
• Cons: Requires more floor space and manual ash removal.
• Best For: Factories in Central Asia where biomass fuel is abundant.

---

5. Troubleshooting: 3 Common Steam Pitfalls

If your boiler is running but the 280 machine is underperforming, check these “hidden killers”:

1. Condensate Drainage: If steam traps fail, water fills the rollers. This stops heat transfer immediately.
2. Pipeline Insulation: 10 meters of bare pipe loses 5-8kg of steam per hour. Use high-density rock wool for all steam lines.
3. Scale Accumulation: Scale acts as an insulator. It forces the boiler to work harder while providing less heat to the rollers.

---

6. FAQ: Expert Answers for Plant Managers

Q1: Can I use a 0.2 MPa boiler for my 280 single facer?

A: No. While it may run, the temperature (~133°C) is too low for high-speed bonding. You will experience delamination once speeds exceed 60m/min. We recommend at least 0.8 MPa.

Q2: How far should the Steam Boiler for 280 Single Facer be from the production line?

A: Keep it within 15-20 meters. Long distances cause significant “pressure drop” and heat loss.

Q3: Does Taiguo Boiler provide installation in Uzbekistan or the Philippines?

A: Yes. We have overseas engineering teams to handle boiler-to-machine connections and local certification.

Q4: Can one 1.0T/h boiler power two 280 machines?

A: Yes. A 1.0T/h boiler provides enough capacity for two 280 single facers, assuming correct pipe sizing.

---

Conclusion: Empower Your Production Line

Success in the corrugated industry requires a reliable thermal partner. Taiguo’s steam boiler for 280 single facer is engineered for high efficiency and long-term durability.

Ready to upgrade your steam system? Contact our engineering team today for a customized thermal plan for your packaging factory.
